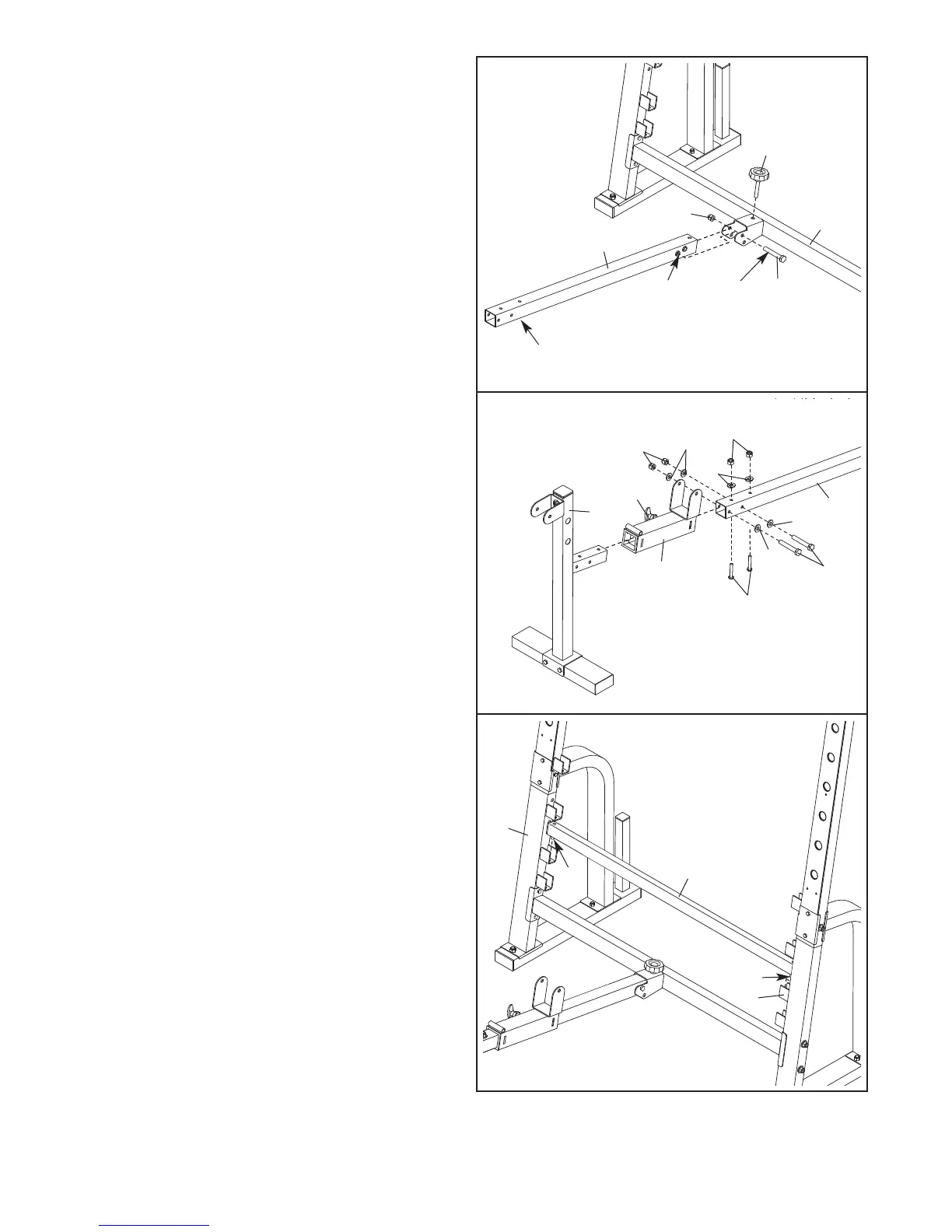

5. Orient the Frame (8) so that the hexagonal
holes are on the bottom. Next, apply a small
a
mount of the included grease to an M10 x
70mm Bolt (55). Attach the Frame to the
C
rossbar (5) with the Bolt and an M10 Nylon
Locknut (58). Do not overtighten the Nylon
Locknut; the Frame must pivot easily.
Fully tighten an Adjustment Knob (56) into the
Crossbar (5) and the Frame (8).
6. Tighten the “T”-handle (45) into the Seat
Carriage (42).
Pull the “T”-handle (45) out as far as it will go
and slide the Seat Carriage (42) onto the
Frame (8).
Attach the Front Leg (12) to the Frame (8) with
two M8 x 52mm Bolts (59), two M8 x 58mm
Bolts (46), six M8 Washers (50), and four M8
Nylon Locknuts (49). Do not tighten the Nylon
Locknuts yet.
7. Set the pins on the Adjustment Tube (9) down
into a set of brackets on the Left and Right
Upright Bases (3, 4).
See steps 1–6. Tighten the M10 Nylon
Locknuts (58) and the M8 Nylon Locknuts
(49) used in these steps.
5
6
7
Pin
Pin
3
5
8
5
8
Hole
Grease
Hexagonal
Holes
55
56
42
8
4
9
49
12
45
59
46
49
50
50
50
50
