19

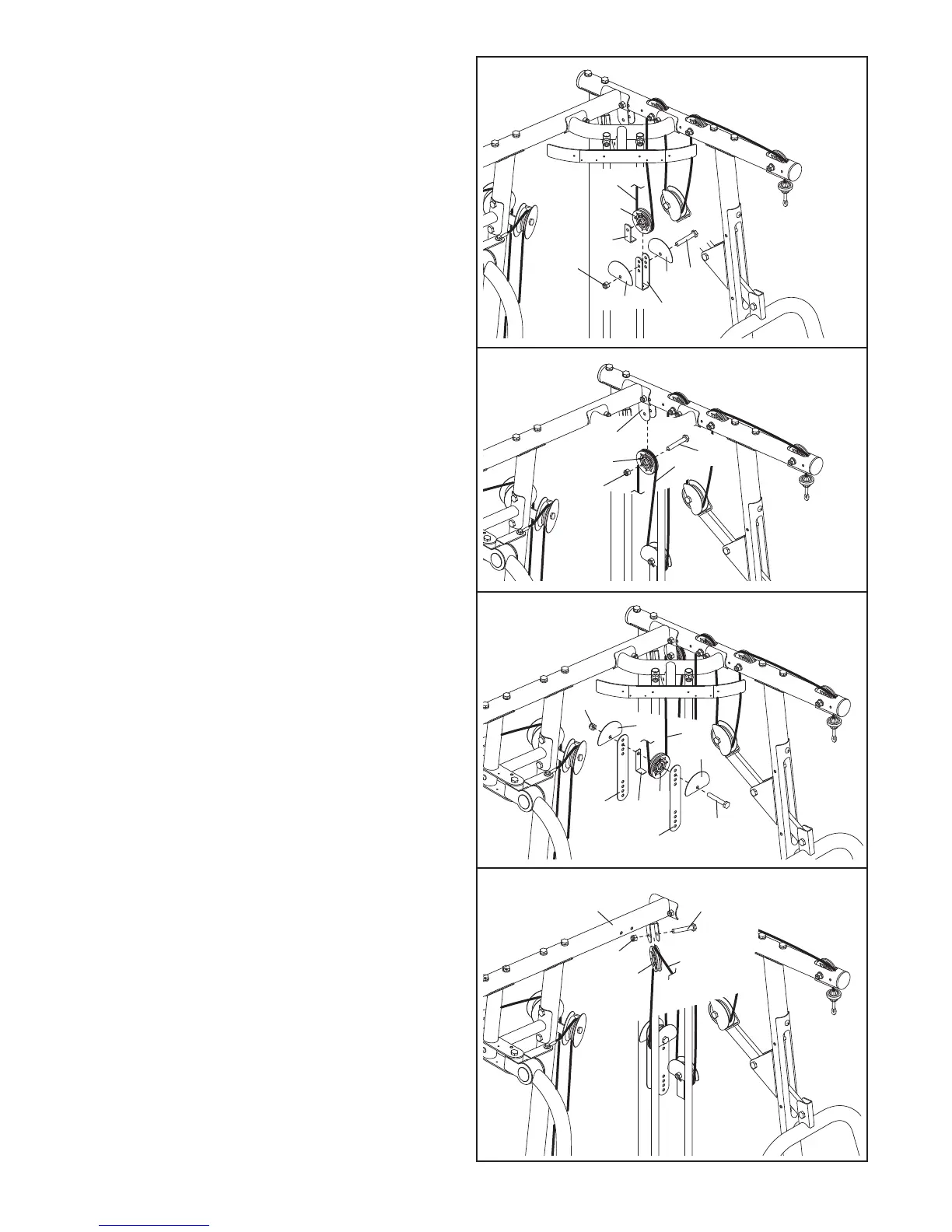

34. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley and a Cable Trap (56) to
t
he second hole in the “U”-bracket (151) with an
M10 x 50mm Bolt (97), two Half Guards (55),
a
nd an M10 Nylon Locknut (77). M
ake sure the
Cable Trap and Half Guards are oriented as
shown.
35. Wrap the Lat Cable (49) over a 90mm Pulley
(48). Attach the Pulley to the Left Top Frame
(126) with an M10 x 45mm Bolt (86) and an
M10 Nylon Locknut (77).
34
77
55
55
97
56
151
48
49
35
126
77
86
49
48
36. Wrap the Lat Cable (49) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (56), and
two Half Guards (55) at the second hole from
the top of the two Pulley Plates (60) with an
M10 x 50mm Bolt (97) and an M10 Nylon
Locknut (77). Make sure the Cable Trap and
Half Guards are oriented as shown.
36
60
60
48
56
77
55
49
55
97
37. Wrap the Lat Cable (49) over a 90mm Pulley
(48). Attach the Pulley to the Right Top Frame
(4) with an M10 x 45mm Bolt (86) and an M10
Nylon Locknut (77).
37
48
49
4
86
77
