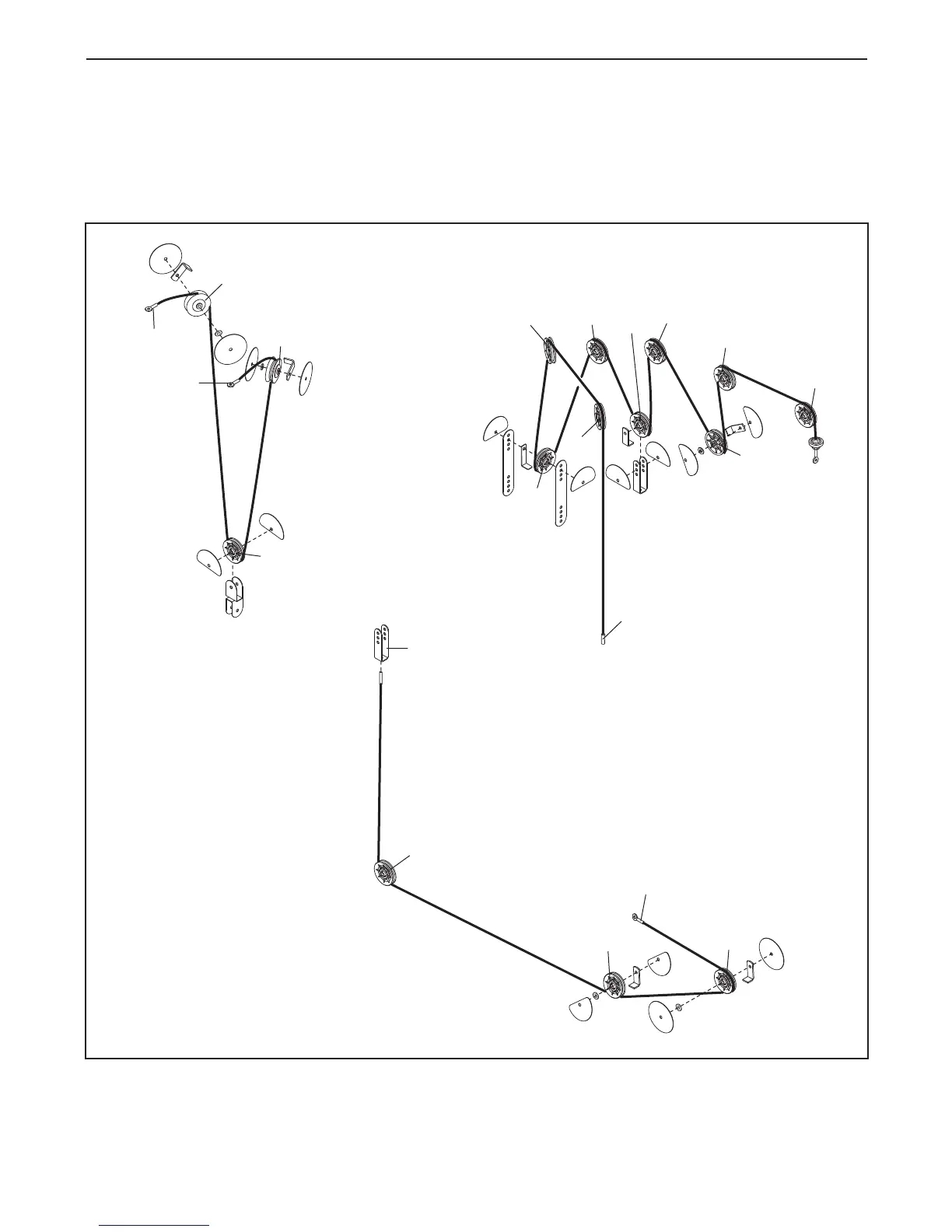

CABLE DIAGRAMS
The cable diagrams show the proper routing of the cables (49, 50, 133, 51). Use the diagram to make sure that
the cables and the cable traps have been assembled correctly. If a cable has not been correctly routed, the
weight system will not function properly and damage may occur. The numbers show the correct route for the
cables. Make sure that the cable traps do not touch or bind the cables.
4
5
1
2
3
4
6
8
9
10
5
Lat Cable (49)
Length: 204in. (518cm)
Butterfly Cable (50)
Length: 119in. (302cm)
Press Cable (133)
Length: 125in. (318cm)
1
1
2
3
7
2
3
4
5
