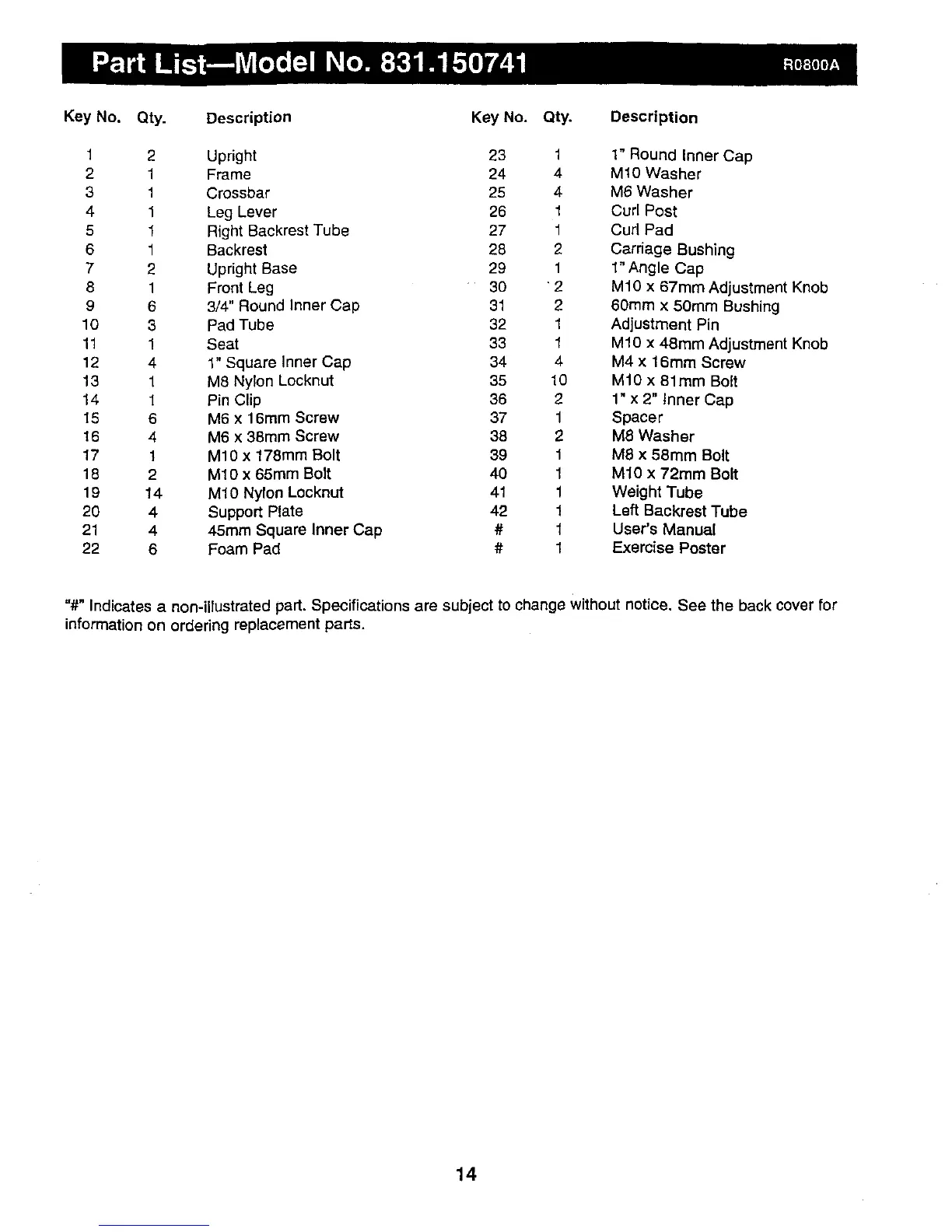

Key No. Qty. Description Key No. Qty. Description
1 2 Upright 23 1 1" Round Inner Cap
2 1 Frame 24 4 MI0 Washer
3 1 Crossbar 25 4 M6 Washer
4 1 Leg Lever 26 1 Cud Post
5 1 Right Backrest Tube 27 1 Curl Pad
6 1 Backrest 28 2 Carriage Bushing
7 2 Upright Base 29 1 1" Angle Cap
8 1 Front Leg 30 "2 M10 x 67mm Adjustment Knob
9 6 3/4" Round Inner Cap 31 2 60mm x 50ram Bushing
10 3 Pad Tube 32 1 Adjustment Pin
11 1 Seat 33 1 M10 x 48ram Adjustment Knob
12 4 1" Square Inner Cap 34 4 M4 x 16ram Screw
13 1 M8 Nylon Locknut 35 10 MI0 x 81ram Bolt
14 1 Pin Clip 36 2 1" x 2" Inner Cap
15 6 M6 x 16mm Screw 37 1 Spacer
16 4 M6 x 38mm Screw 38 2 M8 Washer
17 1 M10 x 178mm Bolt 39 1 M8 x 58ram Bolt
18 2 M10 x 65ram Bolt 40 1 M10 x 72ram Bolt
19 14 MIO Nylon Locknut 41 1 Weight Tube
20 4 Support Plate 42 1 Left Backrest Tube
21 4 45mm Square Inner Cap # 1 User's Manual
22 6 Foam Pad # 1 Exercise Poster
"#" Indicates a non-ilTustrated part. Specifications are subject to change without notice. See the back cover for
information on ordering replacement parts.
