Weider Pro 8900 - Page 29

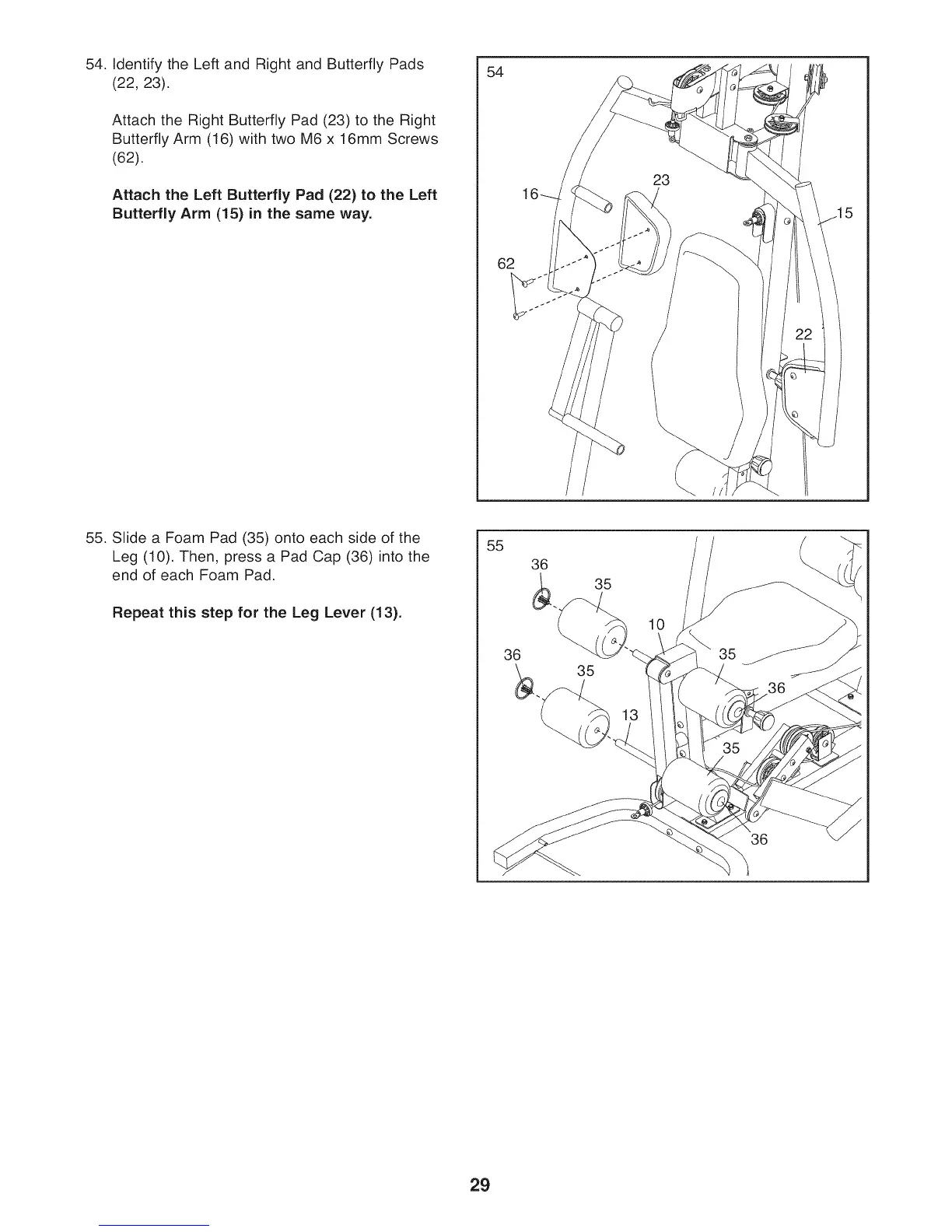

54. Identify the Left and Right and Butterfly Pads
(22, 23).
Attach the Right Butterfly Pad (23) to the Right
Butterfly Arm (16) with two M6 x 16mm Screws
(62).
Attach the Left Butterfly Pad (22) to the Left
Butterfly Arm (15) in the same way.
54
62
55. Slide a Foam Pad (35) onto each side of the
Leg (10). Then, press a Pad Cap (36) into the
end of each Foam Pad.
Repeat this step for the Leg Lever (13).
55
36
36
35
29
