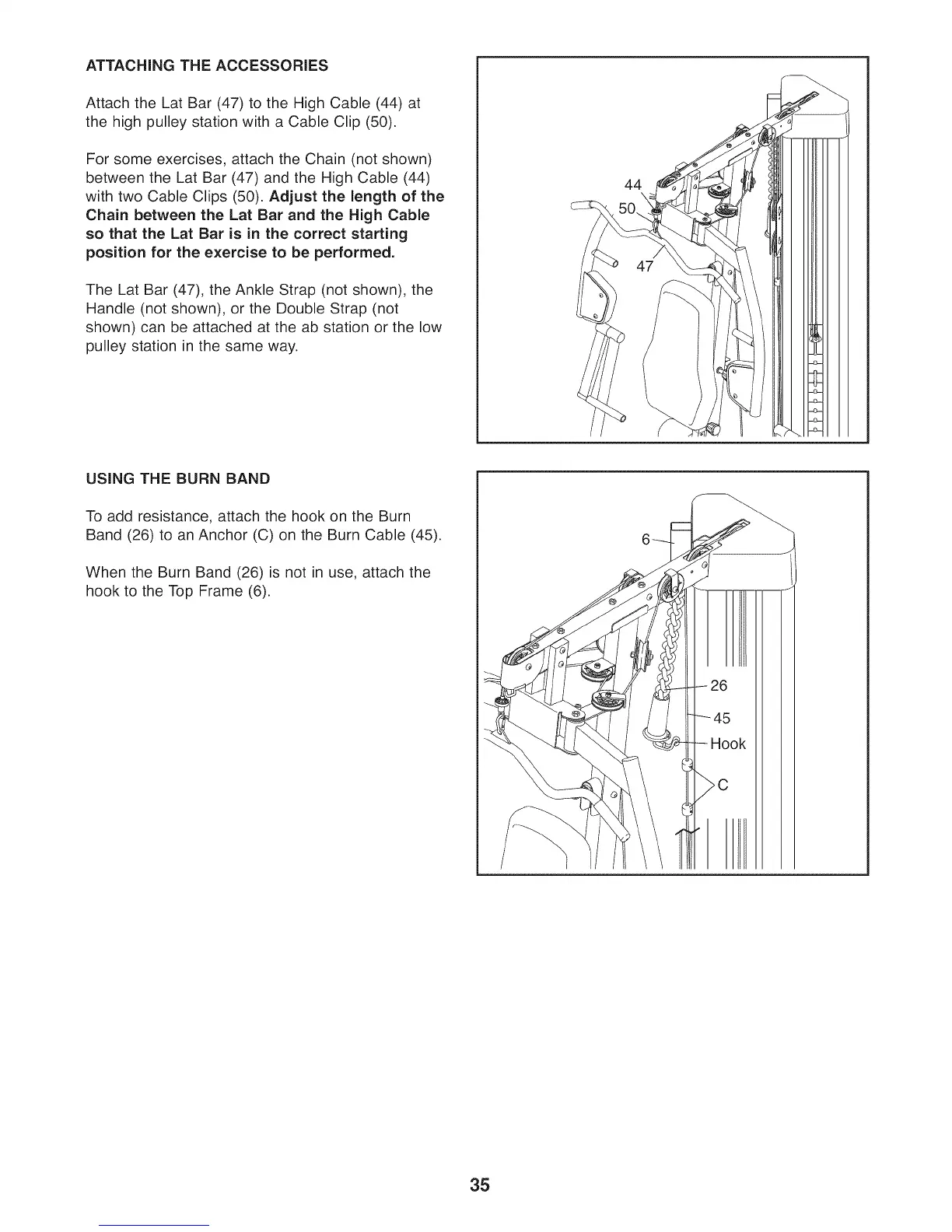

ATTACHING THE ACCESSORIES
Attach the Lat Bar (47) to the High Cable (44) at
the high pulley station with a Cable Clip (50).
For some exercises, attach the Chain (not shown)
between the Lat Bar (47) and the High Cable (44)
with two Cable Clips (50). Adjust the length of the
Chain between the Lat Bar and the High Cable
so that the Lat Bar is in the correct starting
position for the exercise to be performed.
The Lat Bar (47), the Ankle Strap (not shown), the
Handle (not shown), or the Double Strap (not
shown) can be attached at the ab station or the low
pulley station in the same way.
44
USING THE BURN BAND
To add resistance, attach the hook on the Burn
Band (26) to an Anchor (C) on the Burn Cable (45).
When the Burn Band (26) is not in use, attach the
hook to the Top Frame (6).
o
--26
_45
-- Hook
">C
35
