PART iDENTiFiCATiON CHART

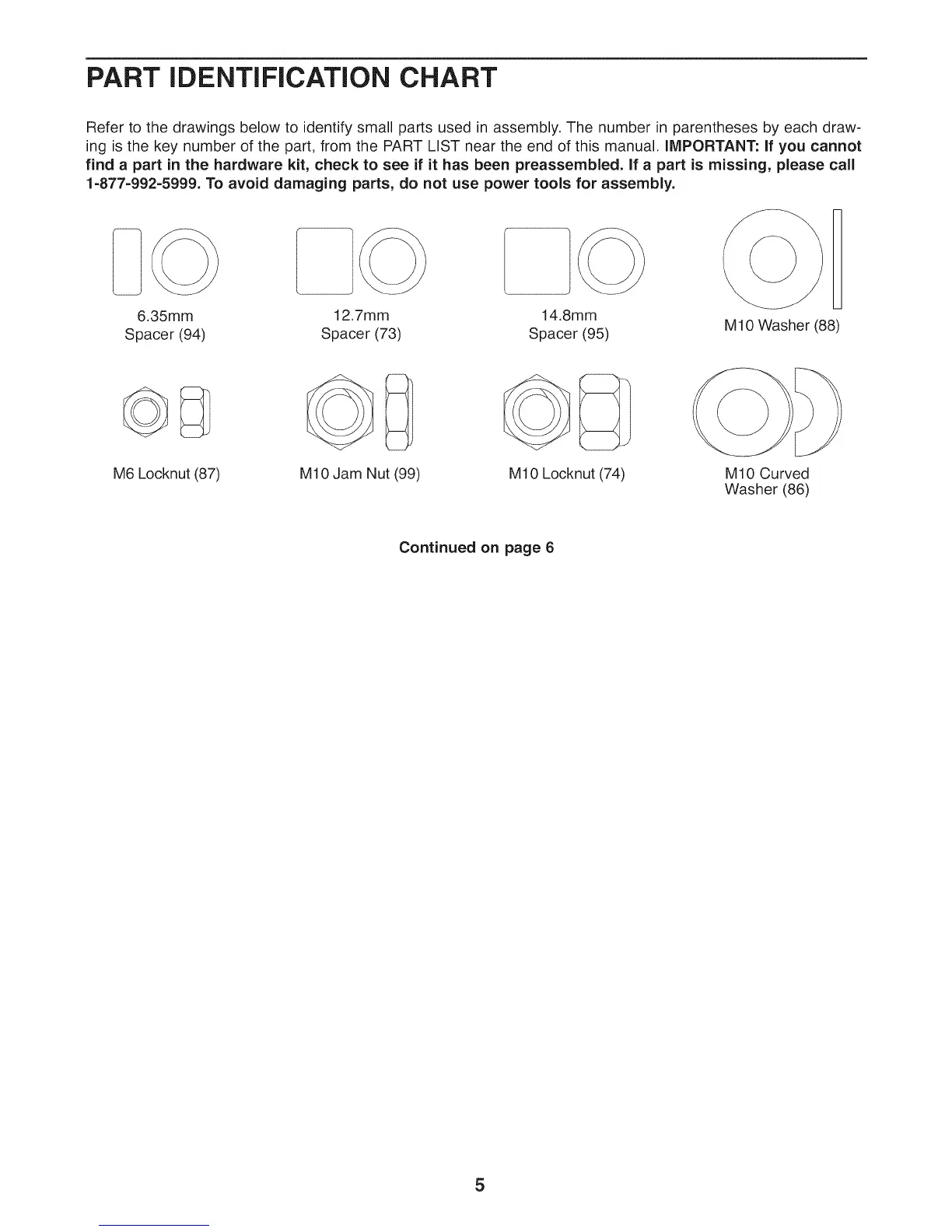

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT: If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1=877-992=5999. To avoid damaging parts, do not use power tools for assembly.
6.35mm
Spacer (94)
12.7mm
Spacer (73)
14.8mm
Spacer (95)
]
M10 Washer (88)
M6 Locknut (87) M10 Jam Nut (99) M10 Locknut (74)
M10 Curved
Washer (86)
Continued on page 6
