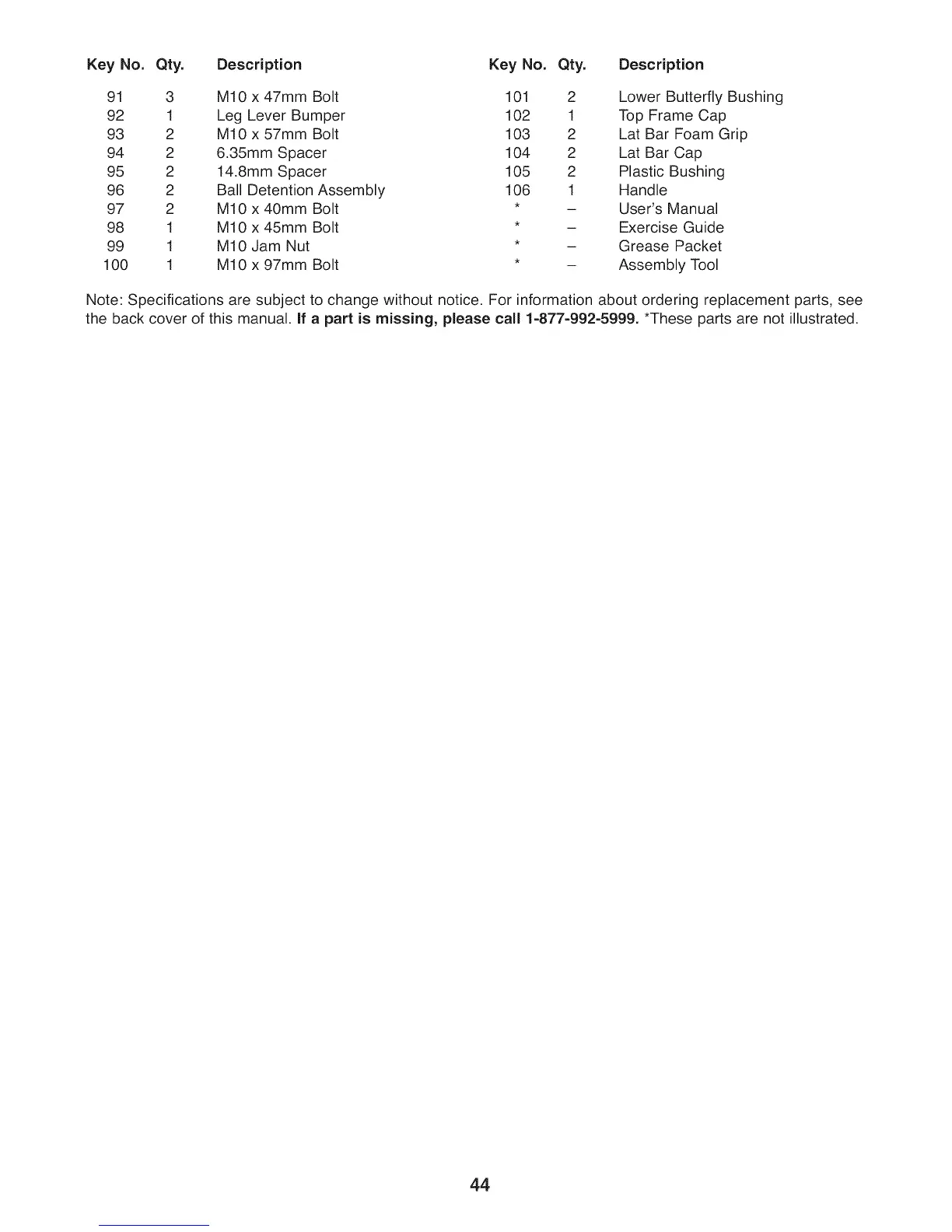

Key No. Qty. Description Key No. Qty. Description
91 3 M10 x 47mm Bolt 101 2 Lower Butterfly Bushing
92 1 Leg Lever Bumper 102 1 Top Frame Cap
93 2 M10 x 57mm Bolt 103 2 Lat Bar Foam Grip
94 2 6.35mm Spacer 104 2 Lat Bar Cap
95 2 14.8mm Spacer 105 2 Plastic Bushing
96 2 Ball Detention Assembly 106 1 Handle
97 2 M10 x 40mm Bolt * - User's Manual
98 1 M10 x 45mm Bolt * - Exercise Guide
99 1 M10 Jam Nut * - Grease Packet
100 1 M10 x 97mm Bolt * - Assembly Tool
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing, please call 1-877-992-5999. *These parts are not illustrated.
44
