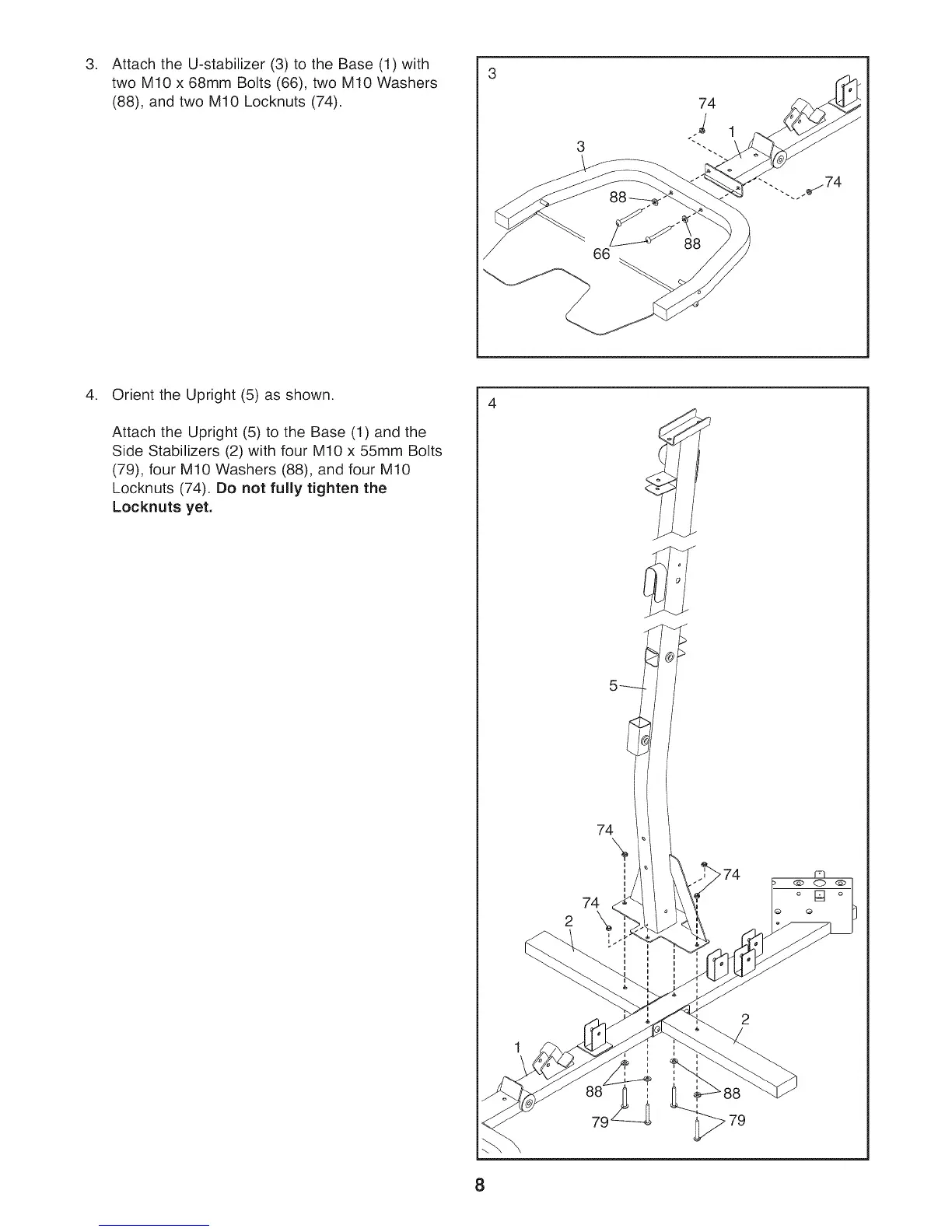

Attach the U-stabilizer (3) to the Base (1) with
two M10 x 68mm Bolts (66), two M10 Washers
(88), and two M10 Locknuts (74).
66
4. Orient the Upright (5) as shown.
Attach the Upright (5) to the Base (1) and the
Side Stabilizers (2) with four M10 x 55mm Bolts
(79), four M10 Washers (88), and four M10
Locknuts (74). Do not fully tighten the
Locknuts yet.
74
\
79
N
o [] o
8
