11

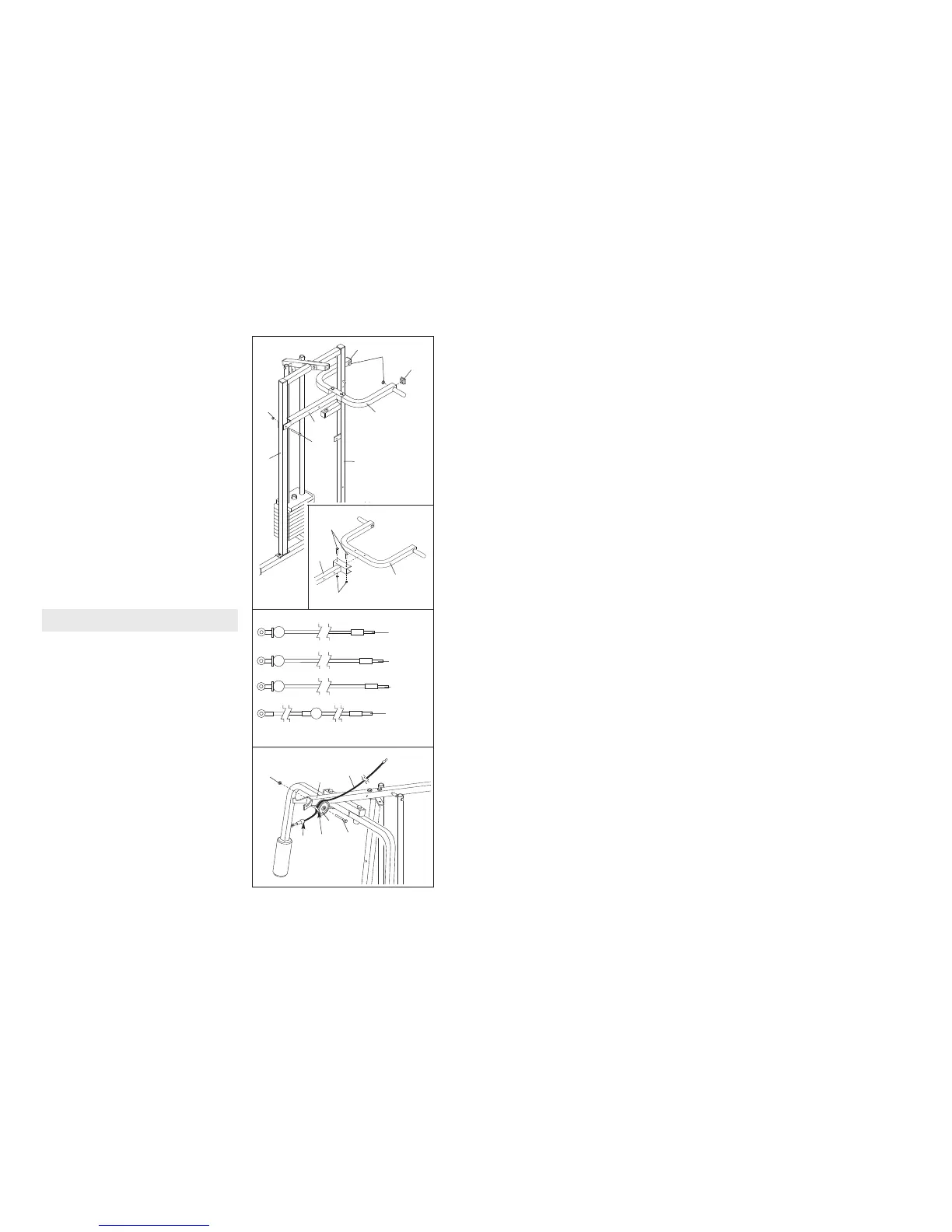

15. See the inset drawing. Attach the Military Press Arm
(84) to the Pivot Arm (80) with two 5/16” x
2
1/4” Bolts (33) and two 5/16” Nylon Locknuts (3).
P
ress two 1 1/2” Square Inner Caps (32) into the
indicated end of the Military Press Arm (84). Press
two 1” Round Inner Caps (49) into the Military
Press Arm.
Attach the Pivot Arm (80) to the Rear Upright (74)
with a 3/8” x 3 1/4” Bolt (67) and a 3/8” Nylon
Locknut (21).
16. Locate and open the parts bags labelled
“CABLE ASSEMBLY” and “PULLEYS.”
During steps 16 through 36, refer to the CABLE
DIAGRAMS on pages 25 and 26 of this manual to
verify proper cable routing. Before beginning this
section, fully unwind the four Cables. Identify the
four Cables by comparing the lengths and ends of
the Cables. The approximate length of each Cable
is listed (in inches) after the key number in the draw-
ing.
IMPORT
ANT
: Whilst assembling the cables, do
not over tighten the bolts and nuts attaching the
pulleys; the pulleys must be able to turn freely.
17. Locate the High Cable (58). Wrap the High Cable
around a 3 1/2” Pulley (15). Attach the Pulley to the
T
op Frame (55) with a 3/8” x 3 3/4” Bolt (88) and a
3/8” Nylon Locknut (21). Be sure that the end of
the Cable with the ball is on the indicated side
of the Pulley and that the Cable is between the
Pulley and the hook.
17
55
21
58
Ball
Hook
15
49
32
84
84
80
80
2
1
67
5674
33
3
16
23—206cm
(81 1/4”)
58—371cm
(146 1/4”)
72
—
603cm
(237 1/2”)
78—
160cm
(63 1/8”)
CABLE ASSEMBLY
32
15
88
To Next Page
