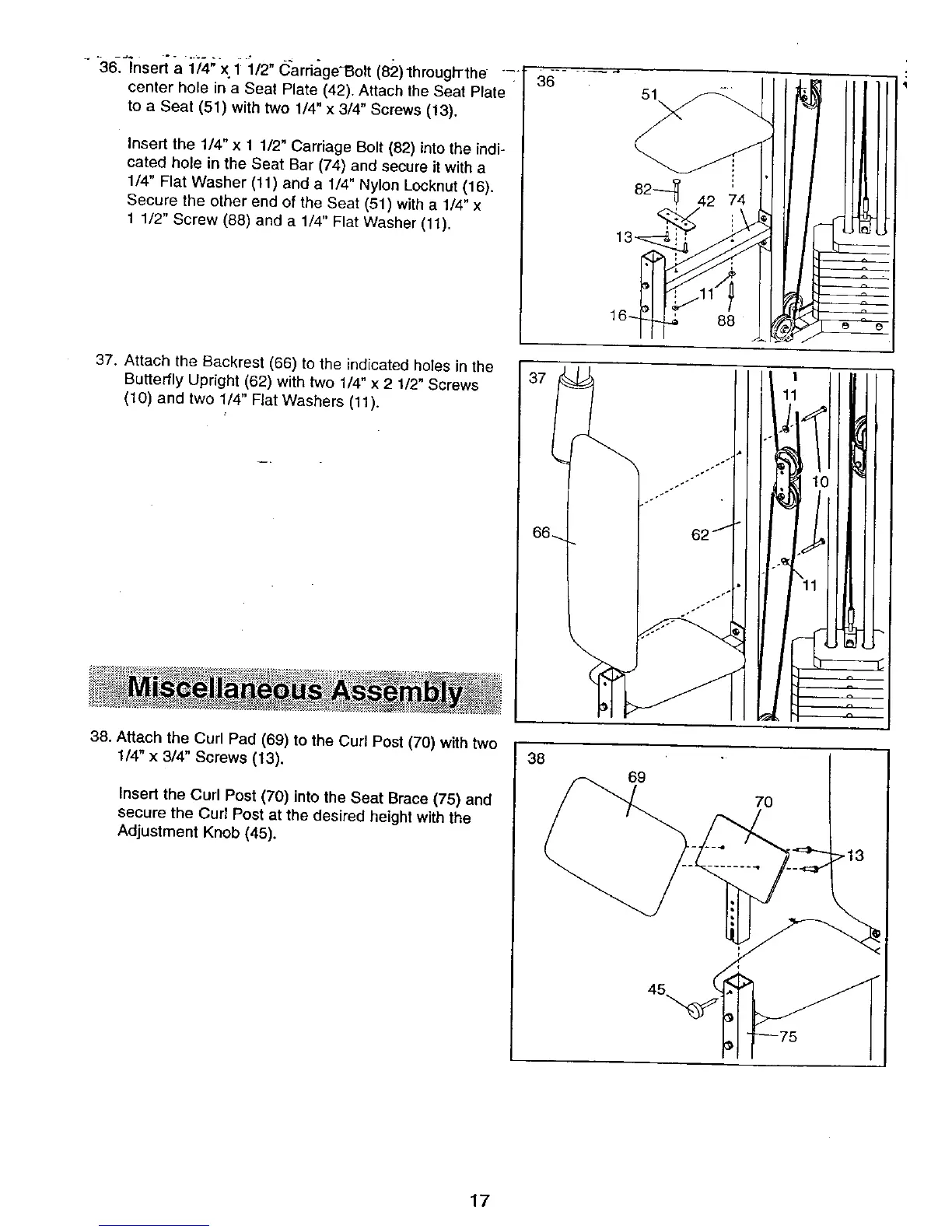

Weider PRO 9930 - Miscellaneous Assembly; Curl Pad and Post Assembly

" "36__nsert a :1/_,';"x 1-1/2" (_'arfiage'Bolt (82) "througlTthe_ "-"
center hole in a Seat Plate (42). Attach the Seat Plate
to a Seat (51) with two 1/4" x 3/4" Screws (13).
Insert the 1/4" x 1 1/2" Carriage Bolt (82) into the indi-
cated hole in the Seat Bar (74) and secure it with a
1/4" Flat Washer (11) and a 1/4" Nylon Locknut (16).
Secure the other end of the Seat (51) with a 1/4" x
1 1/2" Screw (68) and a 1/4" Flat Washer (11).
51
\
42 74
88
37. Attach the Backrest (66) to the indicated holes in the
Butterfly Upright (62) with two 1/4" x 2 1/2" Screws
(10) and two 1/4" Flat Washers (11).
37
66
38. Attach the Curl Pad (69) to the Curl Post (70) with two
1/4" x 3/4" Screws (13).
Insert the Curl Post (70) into the Seat Brace (75) and
secure the Curl Post at the desired height with the
Adjustment Knob (45).
38
69
7O
