Weider PRO 9930 - Cable Diagrams and Routing

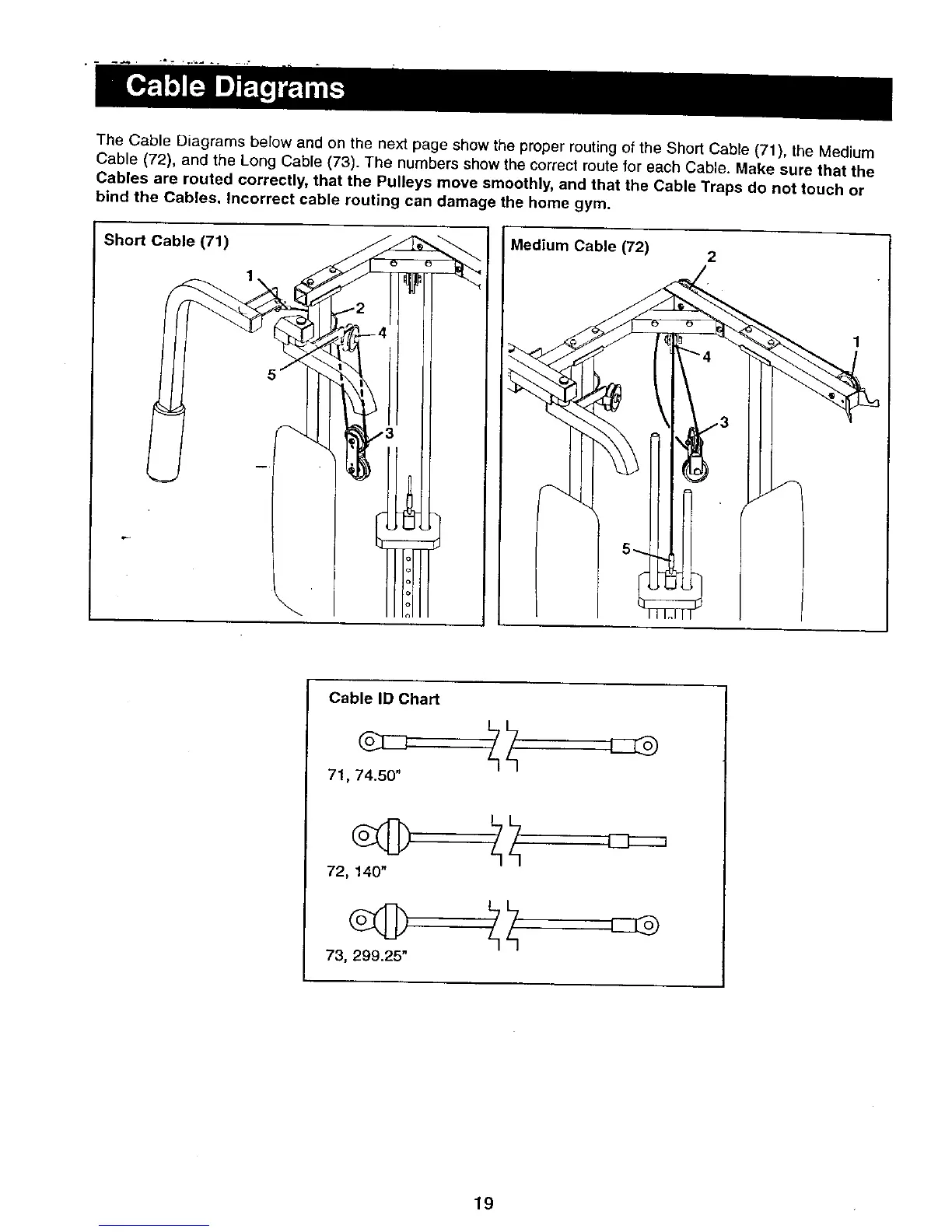

The Cable Diagrams below and on the next page show the proper routing of the Short Cable (71), the Medium
Cable (72), and the Long Cable (73). The numbers show the correct route for each Cable. Make sure that the
Cables are routed correctly, that the Pulleys move smoothly, and that the Cable Traps do not touch or
bind the Cables. Incorrect cable routing can damage the home gym.
Short Cable (71)
I Medium Cable (72)
2
Cable ID Chart
71, 74.50"
72, 140"
73, 299.25"
19
