The threaded shaft on the Med urn'Cab e (72) attached to-.
the Weights (8) can also be used to tighten the cables.
To tighten the Medium Cable (72), remove the Small "U"-
Bracket (43) by removing the 5/16" Nylon Locknut (2) and
the 5/16" x 1 3/4" Bolt (9).
See the inset drawing. Tighten the 1/4" Nylon Locknut
(16) at the end of the Medium Cable (72) as far as it will
go. Then re-attach the Small "U"-Bracket (43).
_ - --72
_i,-..----2 /
043 /
i iI iNl
_ (3./ I
I
J
72_
43_-

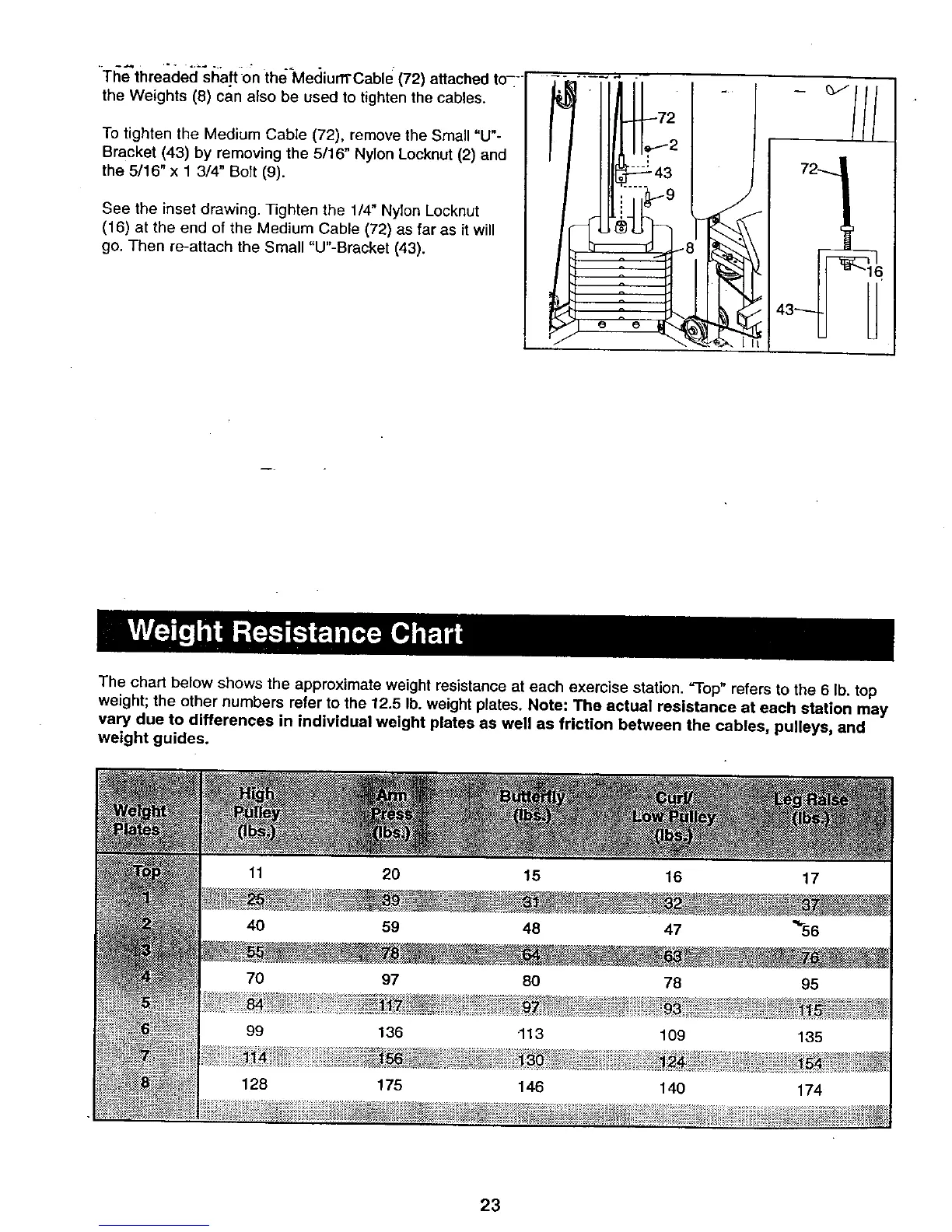

The chart below shows the approximate weight resistance at each exercise station. "Top" refers to the 6 lb. top
weight; the other numbers refer to the 12.5 lb. weight plates. Note: The actual resistance at each station may
vary due to differences in individual weight plates as well as friction between the cables, pulleys, and
weight guides.
