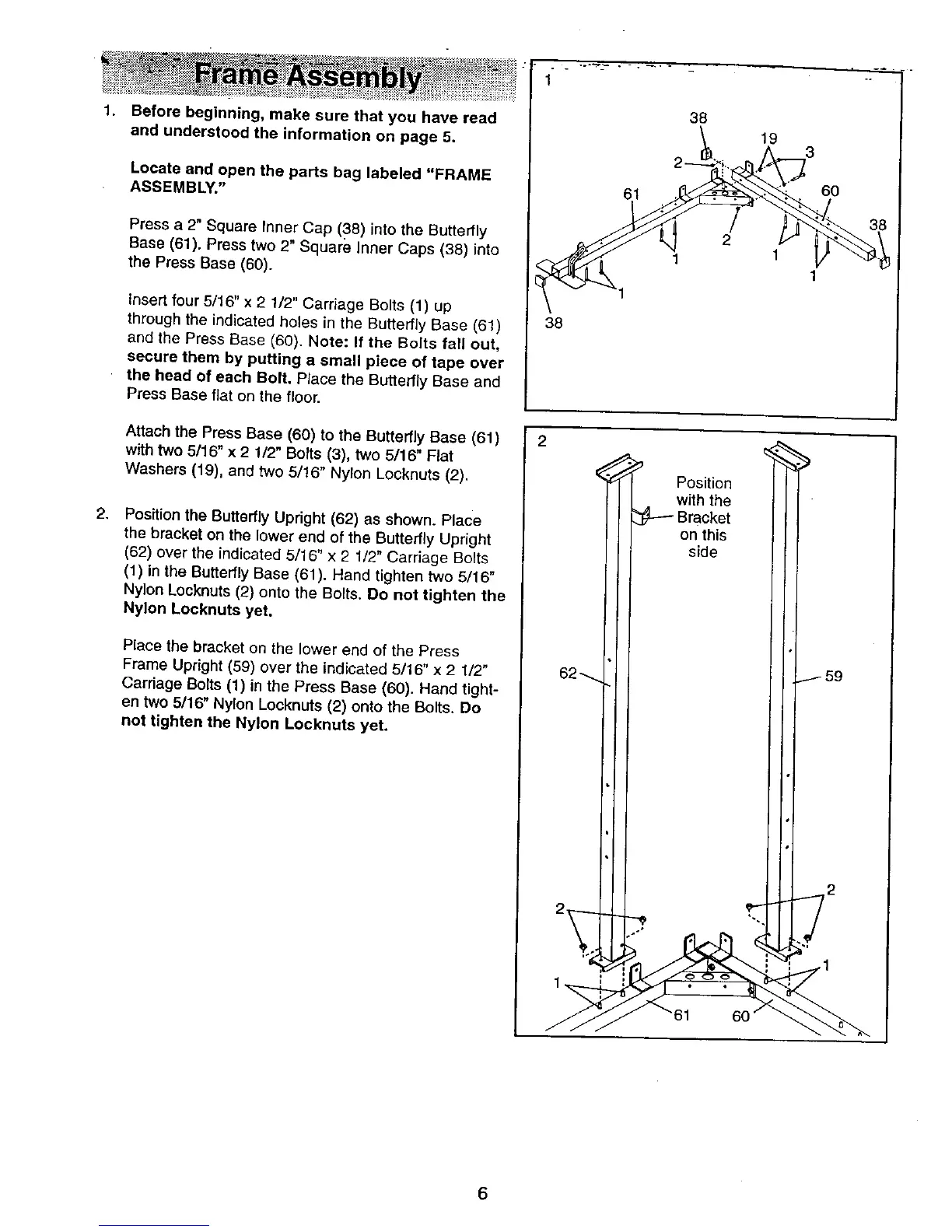

Weider PRO 9930 - Frame Assembly

1
1. Before beginning, make sure that you have read
and understood the information on page 5.
Locate and open the parts bag labeled "FRAME
ASSEMBLY."
Press a 2" Square Inner Cap (38) into the Butterfly
Base (61). Press two 2" Square inner Caps (38) into
the Press Base (60).
Insert four 5/16" x 2 1/2" Carriage Bolts (1) up
through the indicated holes in the Butterfly Base (61)
and the Press Base (60). Note: If the Bolts fall out,
secure them by putting a small piece of tape over
• the head of each Bolt, Place the Butterfly Base and
Press Base flat on the floor.
Attach the Press Base (60) to the Butterfly Base (61)
with two 5/16" x 2 1/2" Botts (3), two 5/16" Flat
Washers (19), and two 5/16" Nylon Locknuts (2).
2.
Position the Butterfly Upright (62) as shown. Place
the bracket on the lower end of the Butterfly Upright
(62) over the indicated 5/16" x 2 1/2" Carriage Bolts
(1) in the Butterfly Base (61). Hand tighten two 5/16"
Nylon Locknuts (2) onto the Bolts. Do not tighten the
Nylon Locknuts yet.
Place the bracket on the lower end of the Press
Frame Upright (59) over the indicated 5/16" x 2 1/2"
Carriage Bolts (1) in the Press Base (60). Hand tight-
en two 5/16" Nylon Locknuts (2) onto the Bolts. Do
not tighten the Nylon Locknuts yet.
38
19
3
61 60
38
2
1
2
Position
with the
6
