Weider PRO 9930 - Page 29

_\\\\\\\\\\\\_

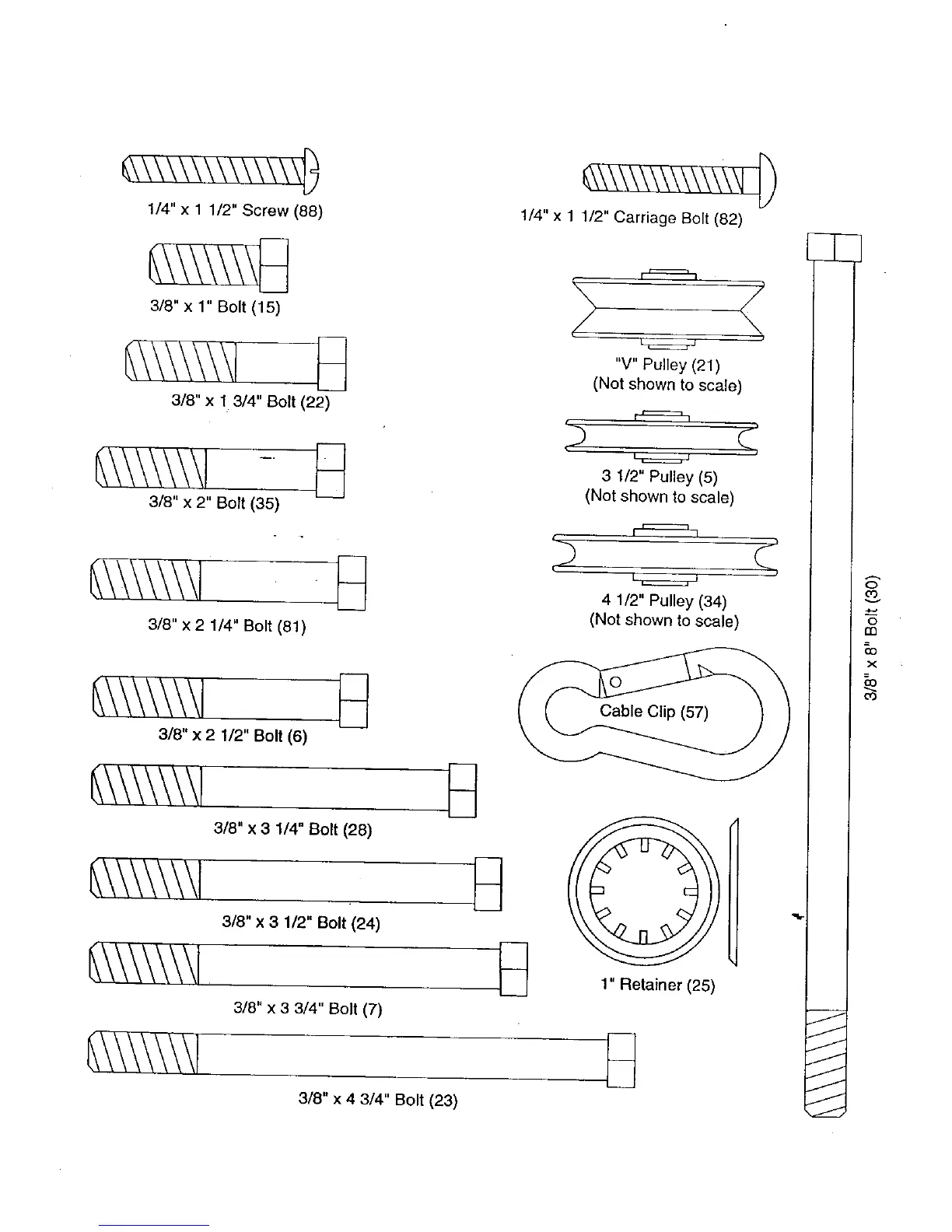

1/4" x 1 1/2" Screw (88)
3/8" x 1" Belt (15)
3/8" x 1 3/4" Bolt (22)
3/8" x 2" Bolt (35)
_\\\\\\\1
3/8" x 2 1/4" Bolt (81)
_\\\\\\\\\\\_
1/4" x 1 1/2" Carriage Bolt (82)
"V" Pulley (21)
(Not shown to scale)
3 1/2" Pulley (5)
(Not shown to scale)
r-,=_=h
4 1/2" Pulley (34)
(Not shown to scale)
3/8" x 2 1/2" Bolt (6)
%\\\\\
3/8" x 3 1/4" Bolt (28)
&\\\\\\\]
(_\\\\\\\1
3/8" x 3 1/2" Bolt (24)
&\\\\\\\}
3/8" x 3 3/4" Bolt (7)
3/8" x 4 3/4" Bolt (23)
1" Retainer (25)
