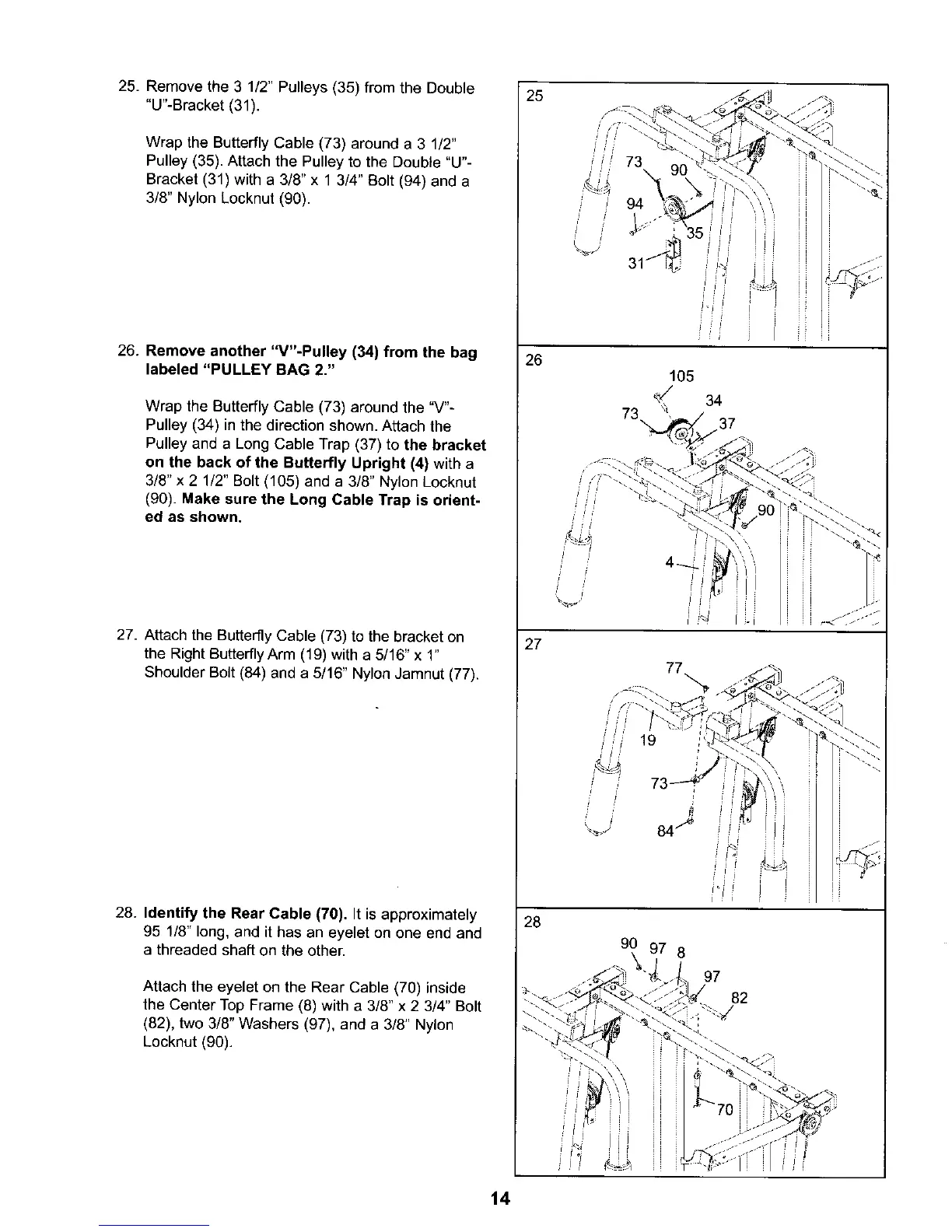

25. Remove the 3 1/2" Pulleys (35) from the Double
"U"-Bracket (31).
Wrap the Butterfly Cable (73) around a 3 1/2"
Pulley (35). Attach the Pulley to the Double "U"-
Bracket (31) with a 3/8" x 1 3/4" Bolt (94) and a
3/8" Nylon Locknut (90).
26. Remove another "V"-Pulley (34) from the bag
labeled "PULLEY BAG 2."
Wrap the Butterfly Cable (73) around the "V"-
Pulley (34) in the direction shown. Attach the
Pulley and a Long Cable Trap (37) to the bracket
on the back of the Butterfly Upright (4) with a
3/8" x 2 1/2" Bolt (105) and a 3/8" Nylon Locknut
(90). Make sure the Long Cable Trap is orient-
ed as shown.
27. Attach the Butterfly Cable (73) to the bracket on
the Right Butterfly Arm (19) with a 5/16" x 1"
Shoulder Bolt (84) and a 5/16" Nylon Jamnut (77).
28. Identify the Rear Cable (70). It is approximately
95 1/8" long,and it has an eyelet on one end and
a threaded shaft on the other.
Attach the eyelet on the Rear Cable (70) inside
the Center Top Frame (8) with a 3/8" x 2 3/4" Bolt
(82), two 3/8" Washers (97), and a 3/8" Nylon
Locknut (90).
25
26
27
28
73
9O
105
37
8
97
82
14
To Next Page
