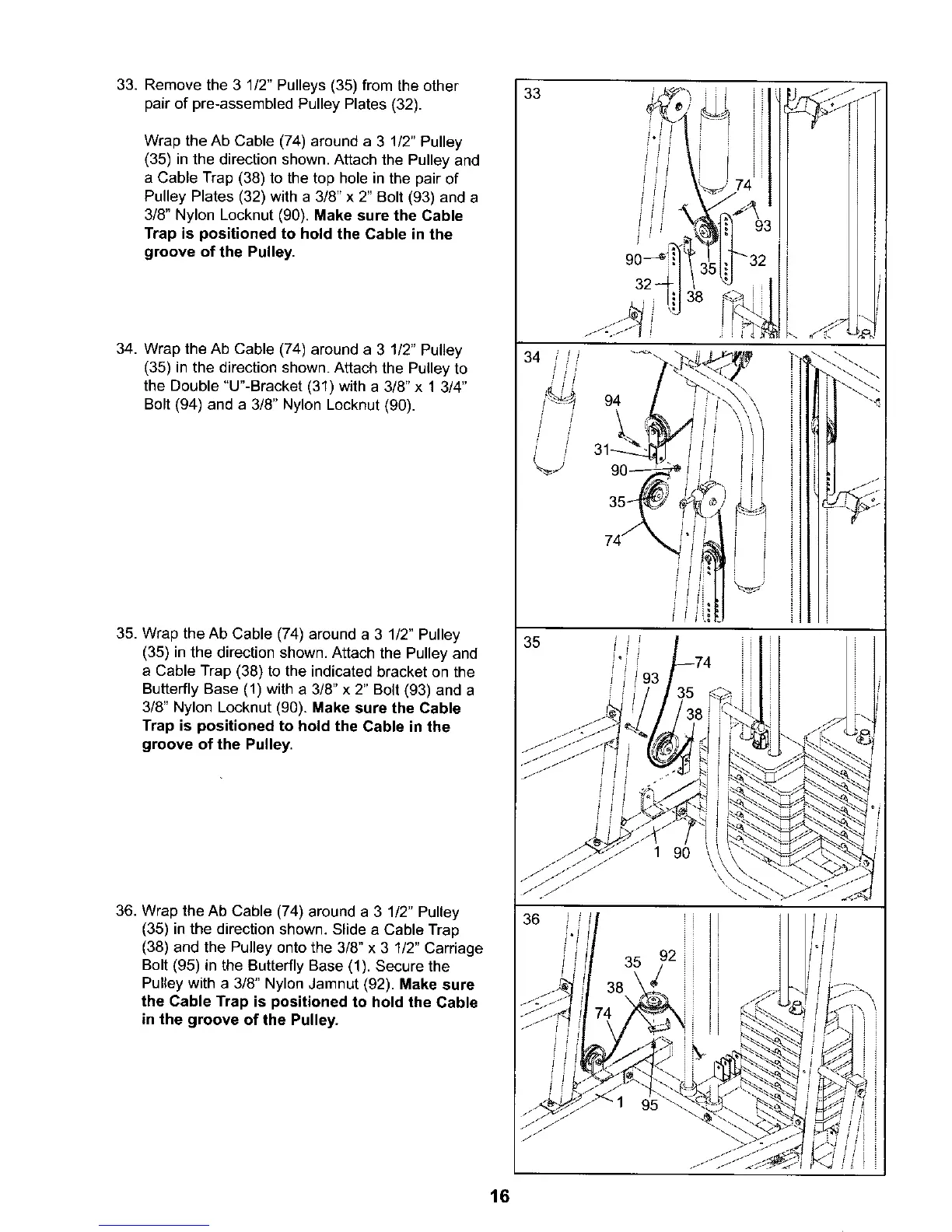

33. Remove the 3 1/2" Pulleys (35) from the other
pair of pre-assembled Pulley Plates (32).
Wrap the Ab Cable (74) around a 3 1/2" Pulley
(35) in the direction shown. Attach the Pulley and
a Cable Trap (38) to the top hole in the pair of
Pulley Plates (32) with a 3/8" x 2" Bolt (93) and a
3/8" Nylon Locknut (90). Make sure the Cable
Trap is positioned to hold the Cable in the
groove of the Pulley.
34. Wrap the Ab Cable (74) around a 3 1/2" Pulley
(35) in the direction shown. Attach the Pulley to
the Double "U"-Bracket (31) with a 3/8" x 1 3/4"
Bolt (94) and a 3/8" Nylon Locknut (90).
35. Wrap the Ab Cable (74) around a 3 1/2" Pulley
(35) in the direction shown. Attach the Pulley and
a Cable Trap (38) to the indicated bracket on the
Butterfly Base (1) with a 3/8" x 2" Bolt (93) and a
3/8" Nylon Locknut (90). Make sure the Cable
Trap is positioned to hold the Cable in the
groove of the Pulley.
36. Wrap the Ab Cable (74) around a 3 1/2" Pulley
(35) in the direction shown. Slide a Cable Trap
(38) and the Pulley onto the 3/8" x 3 1/2" Carriage
Bolt (95) in the Butterfly Base (1). Secure the
Pulley with a 3/8" Nylon Jamnut (92). Make sure
the Cable Trap is positioned to hold the Cable
in the groove of the Pulley.
33
35
36
