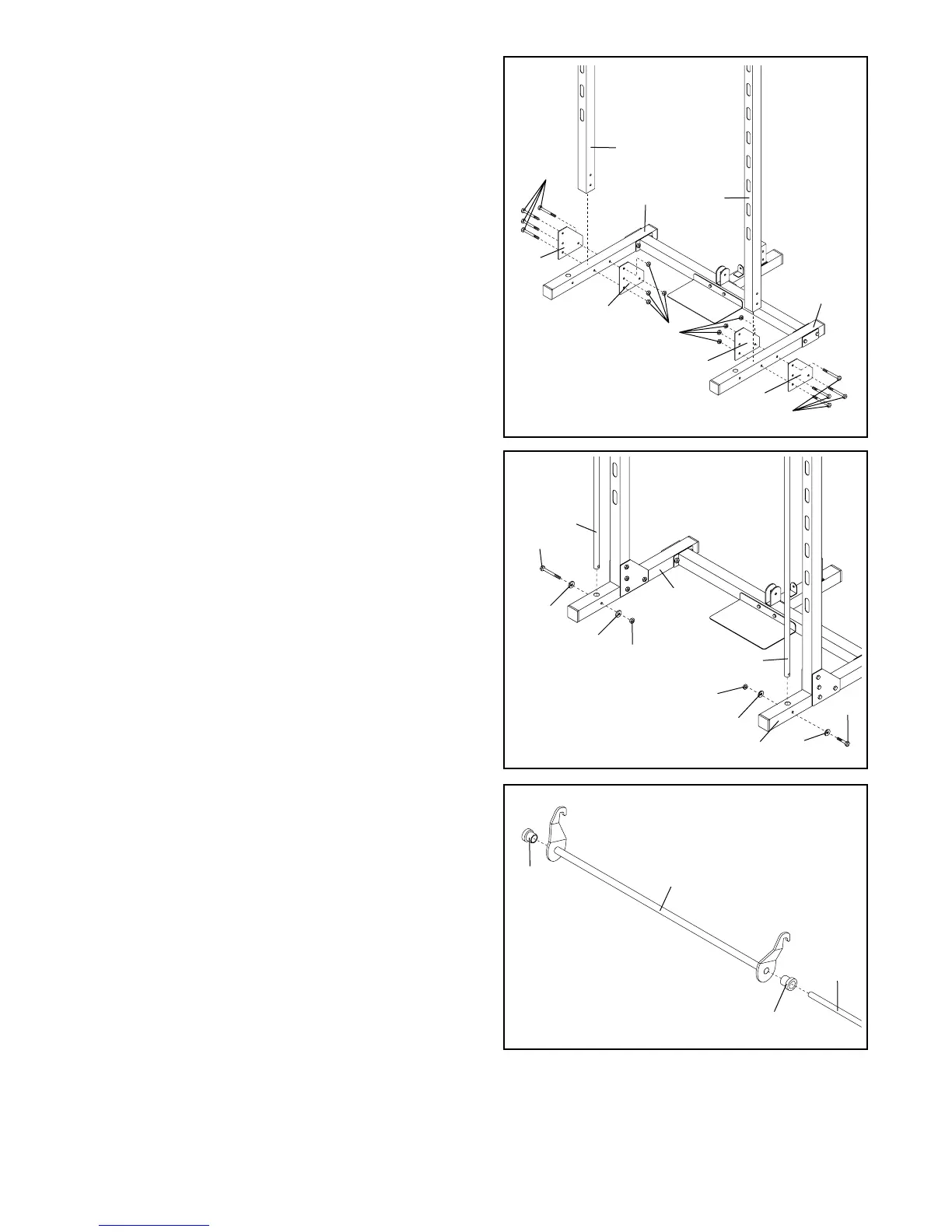

3. Attach an Upright (1) to each Base (7) using two
Joint Plates (12), four M10 x 80mm Bolts (41), and
four M10 Nylon Locknuts (11). Make sure the
Uprights are oriented exactly as shown. Do not
tighten the Nylon Locknuts yet.
3
1
1
41
12
12
7
7
12
12
11
41
7
4. Insert a Weight Guide (18) into the indicated hole in
each Base (7). Attach the Weight Guides to the
Bases using M10 x 75mm Bolts (39), M10 Small
Washers (6), and M10 Nylon Locknuts (11). Do not
tighten the Nylon Locknuts yet.
5. Press a 25mm Bushing (48) into each end of the
Locking Bar (34). Slide the Barbell (35) into the
Locking Bar.
4
18
18
39
39
6
11
7
7
11
6
6
6
5
34
35
48
48
