WEIDER
HEALTH
and
FITNESS

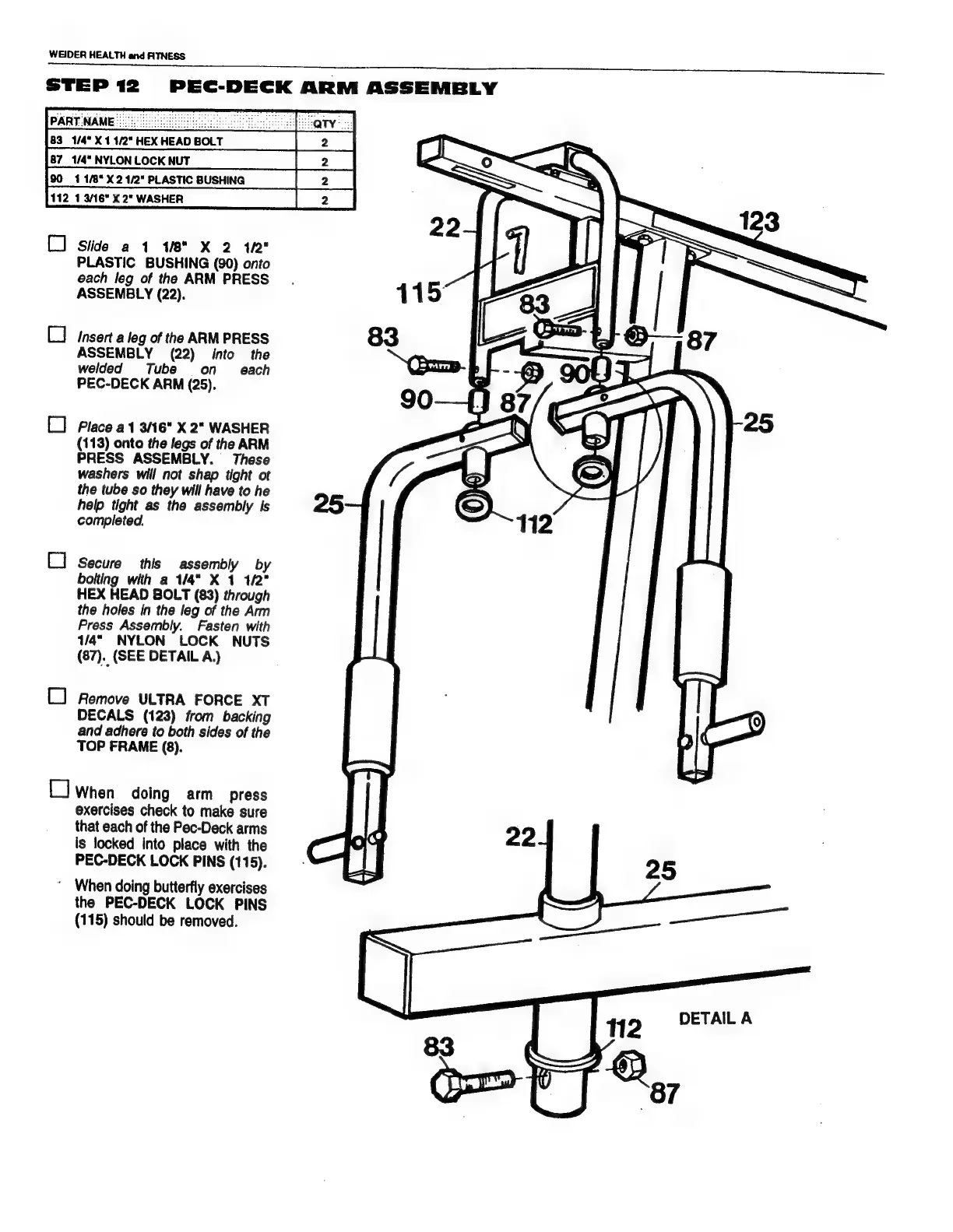

STEP
12
PEC-DECK
ARM
ASSEMBLY
QTY
`:
83
1/4"
X
1
1/2"
HEX
HEAD
BOLT
|
2
|
87
w4*NYLONLOCKNUT
—
—
—
|
2
|
90
11/8"
X
2
1/2"
PLASTIC
BUSHING
|
2
|
вай
112
1
3/16"
X
2"
WASHER
[]
Slide
a
1
18"
X
2
12"
PLASTIC.
BUSHING
(90)
onto
each
leg
of
the
ARM
PRESS
ASSEMBLY
(22).
L]
Insert
a
leg
of
the
ARM
PRESS
ASSEMBLY
(22)
into
the
welded
Tube
оп
each
PEC-DECK
ARM
(25).
L]
Place
a1
3/16"
X
2"
WASHER
(113)
onto
the
legs
of
the
ARM
PRESS
ASSEMBLY.
These
washers
will
not
shap
tight
ot
the
tube
so
they
will
have
to
he
help
tight
as
the
assembly
is
completed.
С]
Secure
this
assembly
by
bolting
with
a
1/4"
X
1
1/2"
HEX
HEAD
BOLT
(83)
through
the
holes
ín
the
leg
of
the
Arm
Press
Assembly.
Fasten
with
14*
NYLON
LOCK
NUTS
(87).
(SEE
DETAIL
A.)
L]
Remove
ULTRA
FORCE
XT
DECALS
(123)
from
backing
and
adhere
to
both
sides
of
the
TOP
FRAME
(8).
Es]
When
doing
arm
press
exercises
check
to
make
sure
that
each
of
the
Pec-Deck
arms
is
locked
into
place
with
the
PEC-DECK
LOCK
PINS
(115).
`
When
doing
butterfly
exercises
the
PEC-DECK
LOCK
PINS
(115)
should
be
removed.
