STEP 15 BRACKET ASSEMBLIES
PART NAME ар
61 6/16" X 2 1/2 HEX HEAD BOLT
63 5/16" X 3" HEX HEAD BOLT
сат.
| 2 |
t |
66 SH6" X2" HEX HEAD BOLT | 2 |
| 3 |
| 3 |
в |

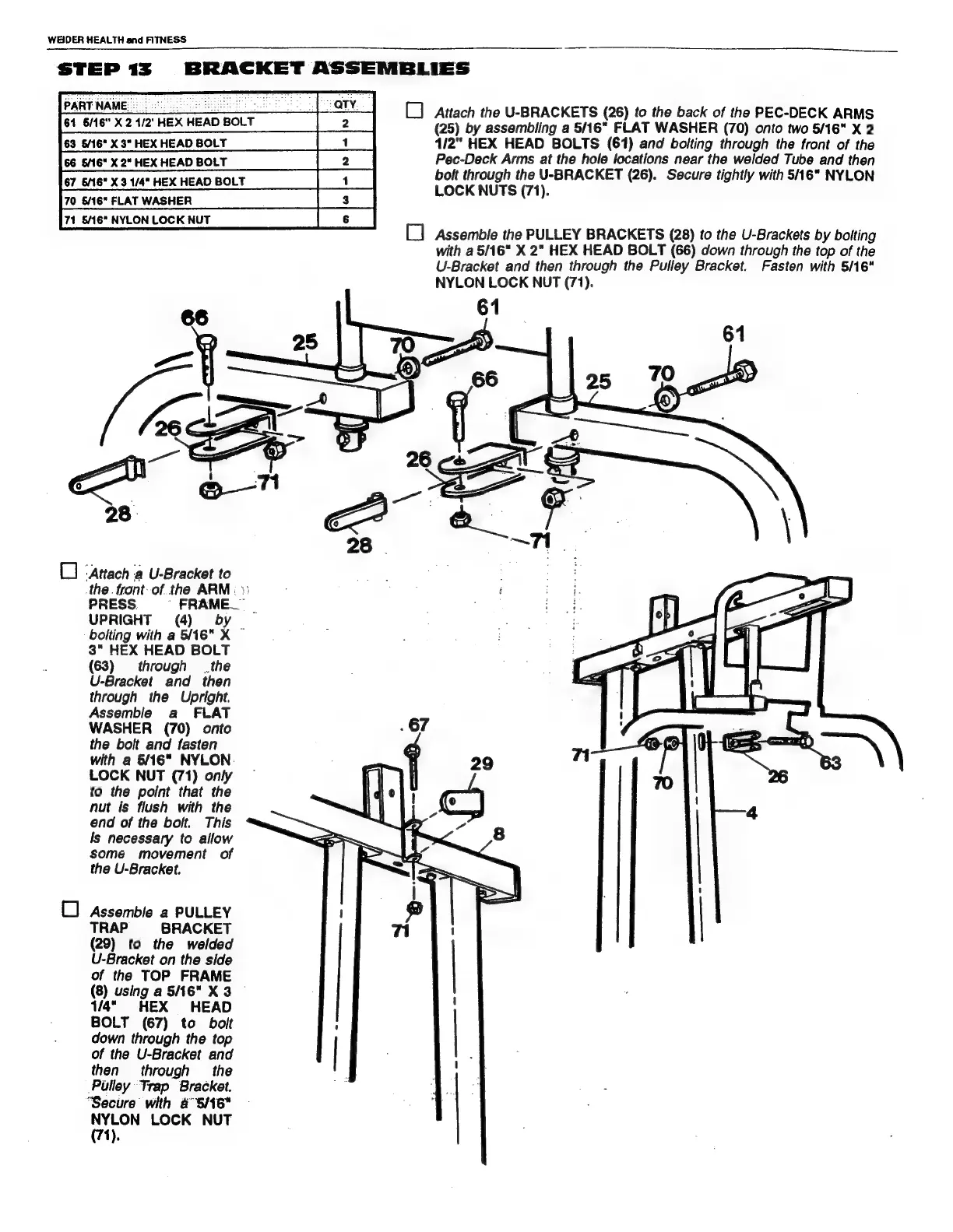

C] Attach the U-BRACKETS (26) to the back of the PEC-DECK ARMS
(25) by assembling a 5/16* FLAT WASHER (70) onto two 5/16" X 2
1/2" HEX HEAD BOLTS (61) and bolting through the front of the
Pec-Deck Arms at the hole locations near the welded Tube and then
bolt through the U-BRACKET (26). Secure tightly with 5/16" NYLON
LOCK NUTS (71).
67 5/16" X 3 1/4" HEX HEAD BOLT
70 5/16" FLAT WASHER
71 5/16" NYLON LOCK NUT
C Assemble the PULLEY BRACKETS (28) to the U-Brackets by bolting
with a 5/16" X 2" HEX HEAD BOLT (66) down through the top of the
U-Bracket and then through the Pulley Bracket. Fasten with 5/16"
NYLON LOCK NUT (71).
25 > 61
— TO
66
x
—
==
26 =
26
ст a^ 4;
28 e
О Attach а U-Bracket to
the. front of the ARM: ::
PRESS. ` FRAME.
UPRIGHT (4) by
bolting with a 5/16" X `
3" HEX HEAD BOLT
(63) through .the
U-Bracket and then
through the Upright.
Assemble a FLAT
WASHER (70) onto
the bolt and fasten
with a 5/16" NYLON:
LOCK NUT (71) only
to the point that the
nut is flush with the
end of the bolt. This
Ís necessary to allow
some movement of
the U-Bracket.
D Assemble a PULLEY
TRAP BRACKET
(29) to the welded
U-Bracket on the side
of the TOP FRAME
(8) using a 56" X3 `
14" HEX HEAD
BOLT (67) to bolt
down through the top
of the U-Bracket and
then through the
Pulley Trap Bracket.
“Secure with à 516“
NYLON LOCK NUT
(71).
