TROUBLE-SHOOTING AND MAINTENANCE
Inspect and tighten all parts each time you use the weight system. Replace any worn parts immediately. The
weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

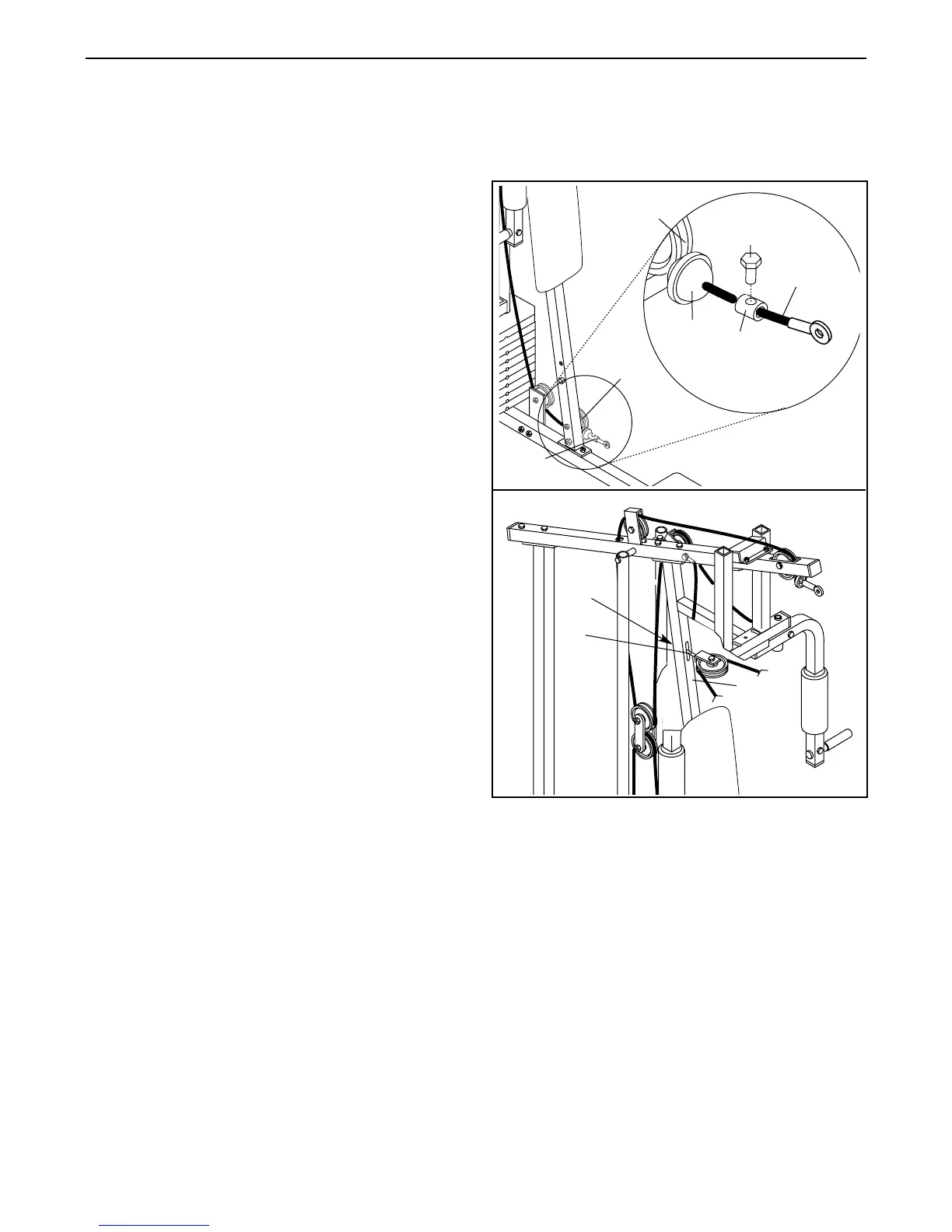

TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
system, can stretch slightly when it is first used. If
there is slack in the cables before resistance is felt,
the cables should be tightened. Locate the adjust-
ment sleeve and adjustment screw near the lower
end of the Short Cable (23). Loosen the adjustment
screw. Pull the end of the Short Cable until there is no
slack. Slide the adjustment sleeve and the ball against
the indicated 3 1/2” Pulley (15). Retighten the adjust-
ment screw. Make sure that the cables are not too
tight, or the top weight will be lifted off the weight
stack.
Additional slack can be removed by locating the indi-
cated 5/16” Nylon Locknut (3) near the upper end of
the Front Upright (42). To tighten the cables, hold the
5/16” x 3 1/4” Bolt (35) and turn the Nylon Locknut
clockwise.
Note: Inspect all cables before each use. If a cable tends to slip off the pulleys often, the cable may have
become twisted. Remove the cable and re-install it.
If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.
Replace all cables every two years.
23
15
15
Adjustment
Screw
Adjustment
Sleeve
Ball
23
35
3
42
To Next Page
