22

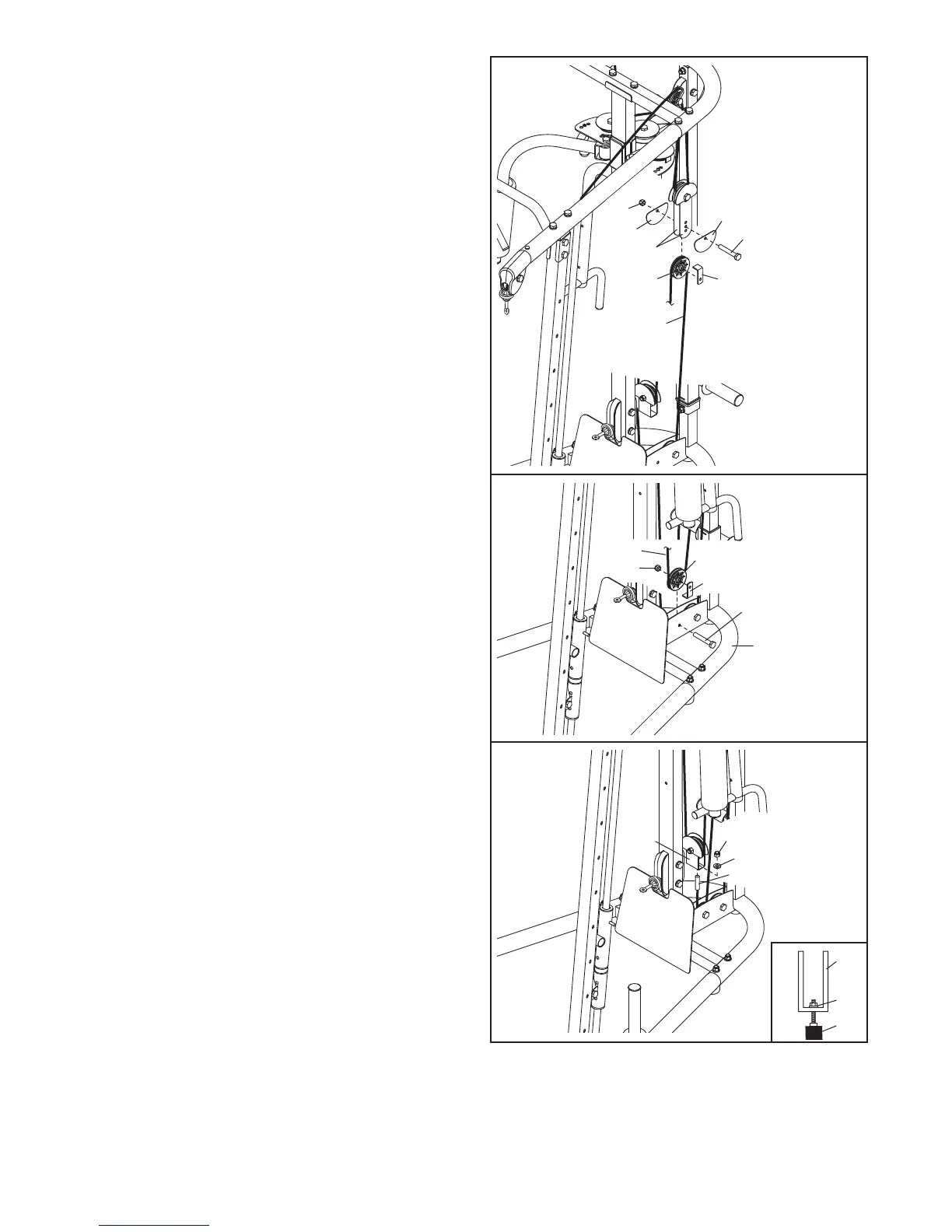

45. Wrap the Low Cable (58) under a Small Pulley
(59). Attach the Small Pulley and a Cable Trap
(76) to the second hole in the Rear Base (25)
with an M10 x 50mm Bolt (111) and an M10
Nylon Locknut (94).
46. Attach the Low Cable (58) to the “U” Bracket (57)
with an M8 Nylon Locknut (97) and an M8
Washer (95). See the inset drawing. Do not
completely tighten the Nylon Locknut; it
should be tightened so that only two threads
of the Cable show past the Nylon Locknut.
45
46
76
25
59
94
58
111
57
58
95
97
44. Wrap the Low Cable (58) over a Small Pulley
(59). Attach the Small Pulley, two Half Guards
(
62), and a Cable Trap (76) to the second from
the bottom set of holes in the two Pulley Plates
(
56) with an M10 x 50mm Bolt (111) and an M10
Nylon Locknut (94). Make sure the Half Guards
are oriented as shown.
4
4
94
59
62
62
111
56
58
76
57
97
58
To Next Page
