8

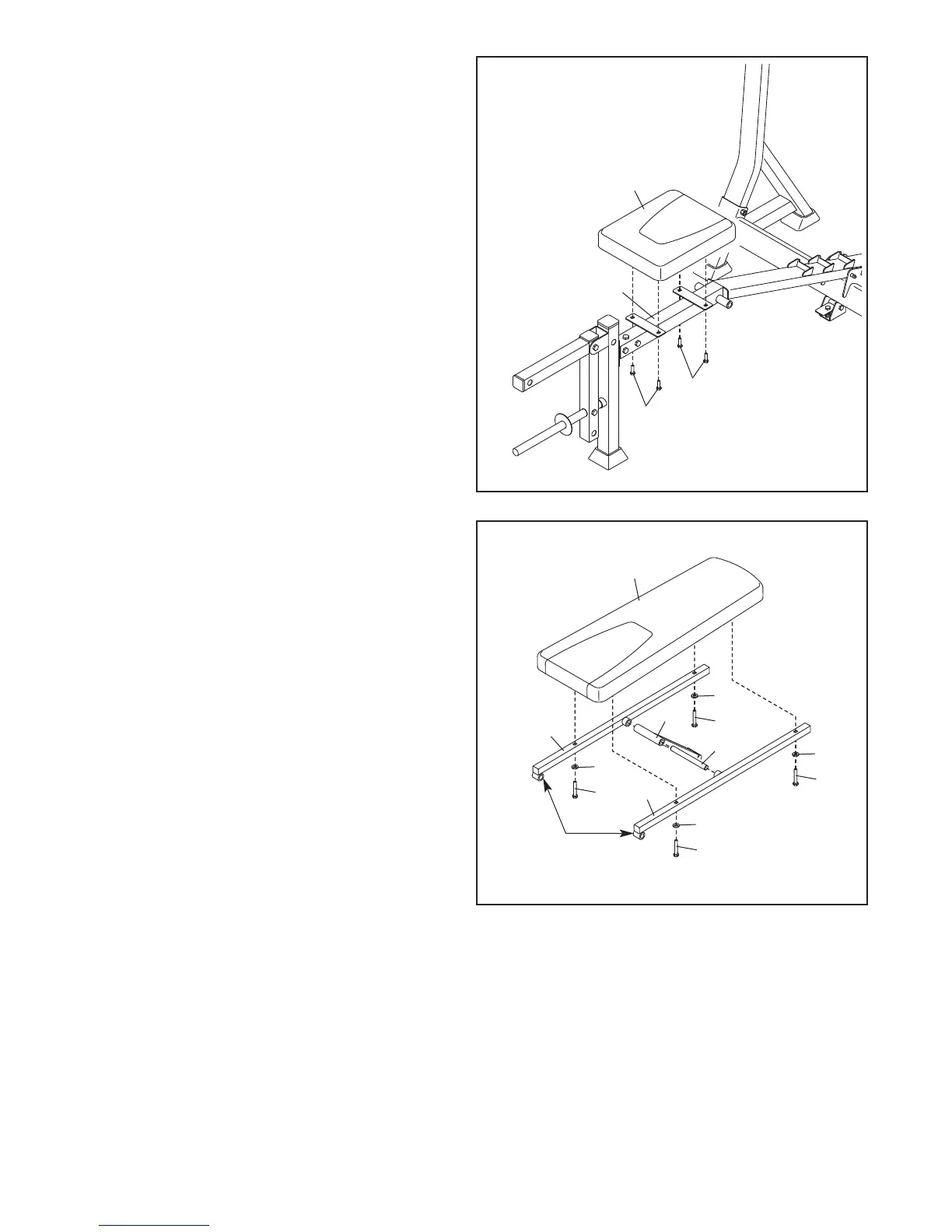

6. Attach the Seat (15) to the Main Frame (7) with
four M6 x 16mm Screws (33).
7. Identify Backrest Frames A and B (8, 9) and ori-
ent them so that the welded tubes are in the
locations shown.
Then, identify the Backrest Support (4) and the
Short Axle (3). Insert the Short Axle through the
Backrest Support.
Next, press a Backrest Frame (8, 9) onto each
end of the Short Axle (3).
Attach the Backrest (16) to the Backrest
Frames (8, 9) with four M6 x 40mm Screws (34)
and four M6 Washers (44).
6
7
15
7
33
16
9
8
4
3
44
34
44
34
44
34
44
34
33
Welded
Tubes
To Next Page
