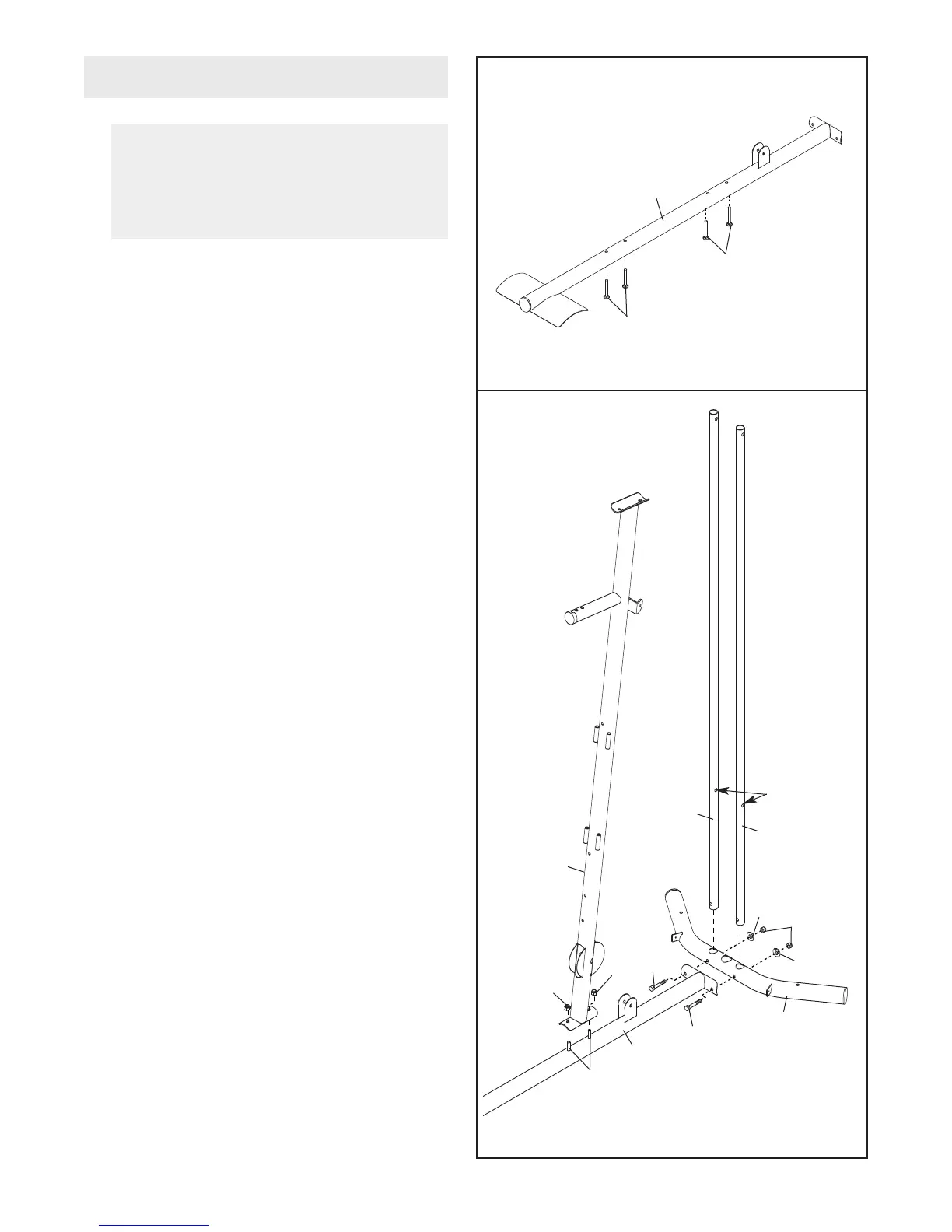

6
2. Orient the two Weight Guides (21) so that the
indicated holes are closer to the lower ends.
Attach the two Weight Guides and the Base (1)
to the Stabilizer (2) with two M10 x 80mm
Button Bolts (71), two M10 Washers (57), and
two M10 Nylon Locknuts (56). Tighten the
Nylon Locknuts.
Attach the Upright (3) to the Base (1) with the
two indicated M8 x 74mm Carriage Bolts (78)
and two M8 Nylon Locknuts (58). Do not tight-
en the Nylon Locknuts yet.
1.
Insert four M8 x 74mm Carriage Bolts (78) up
through the Base (1).
Note: It may be helpful
to place a piece of tape over the bolt heads
to hold them in place.
B
efore beginning assembly, make sure
you understand the information in the
b
ox on page 5. Refer to the PART IDENTI-
FICATION CHART in the centre of this
manual for help identifying small parts.
Frame Assembly
1
1
78
78
2
78
56
58
3
1
58
79
79
2
57
57
21
Holes
21
To Next Page
