Weidmann MV5 - Drawing of Punch Insert

Operating instructions, Piercing press, Weidmann Type MV5 Version: May 2019 Page 11

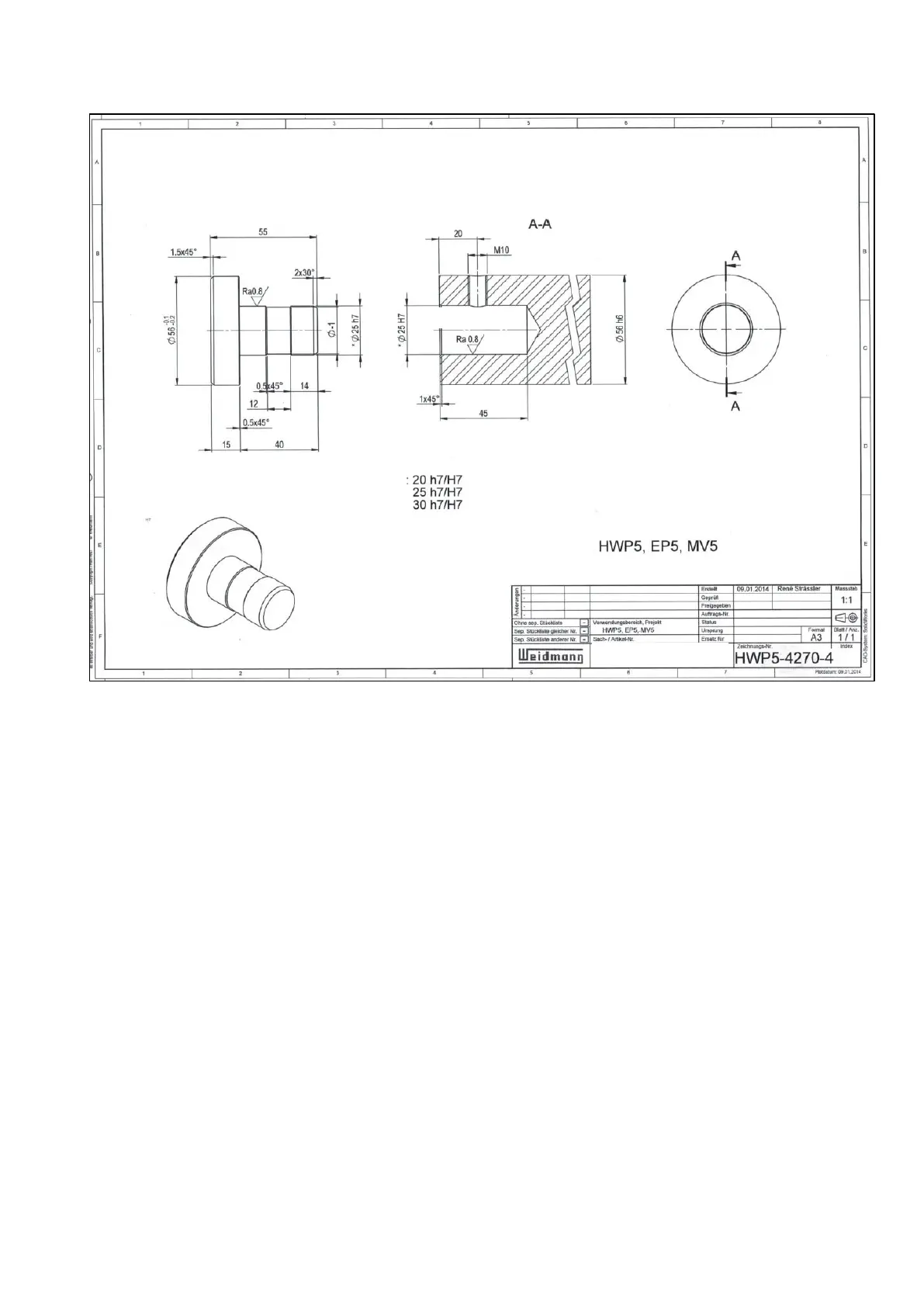

Drawing of Punch Insert
Hole in punch
Standard sizes
For
Punch insert
Material 16 MnCr5
Hardened 58-60HRC
(insert depth 0.6mm)
Finishing work
Punch insert / Drilling
