Weidmann MV5 - Illustration of All Parts;Replacement Parts

Operating instructions, Piercing press, Weidmann Type MV5 Version: May 2019 Page 12

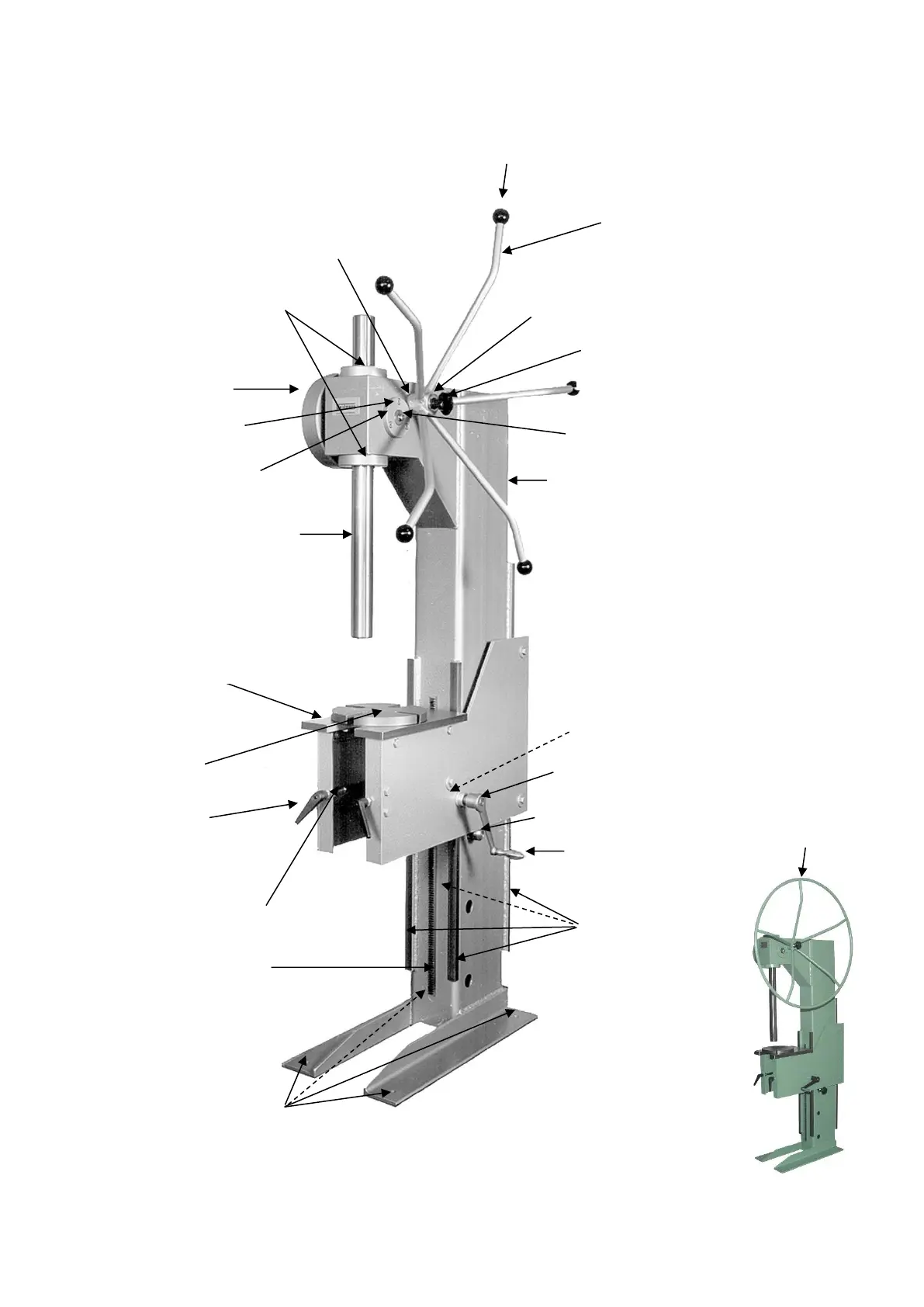

Illustration of all Parts/Replacement Parts
Star hand wheel Nr. 4262 S
Ball handle black
Spindle brake
Star handle black
Shaft for hand wheel Nr. 4258
Brake disc Teflon
Gear ring Nr. 4261
Flange bearing Nr. 4257
Pinion for spindle stroke Nr. 4255
Flange bearing for spindle stroke Nr. 5114
Spindle
Spindle stroke 530 mm, Nr. 4253
Spindle stroke 800 mm, Nr. 4253EP5
Rotary table Nr. 4264
Stand Nr. 5101
Ring hand wheel Nr. 4262 R
Handle bar
Clamp shaft Nr. 5110
Spindle stroke for table
regulation Nr. 5112 Z
Crank handle
Bearing pin Nr. 5113
Setting shaft Nr. 5107
Spur gear for table regulation Nr. 5112 R
Grease nipple
Fixing holes
Guide rails
Table plate, recess 82mm, Nr. 5103/82
Table plate, recess 102 mm, Nr. 5103/102
