WEIHONG PM53B User Manual

Specialized Concentrated Focused
「16」Wiring
CAUTION
Wirings of X, Y and Z axis are the same, except that two Z-axis brake lines can connect to relay to control
brakes.

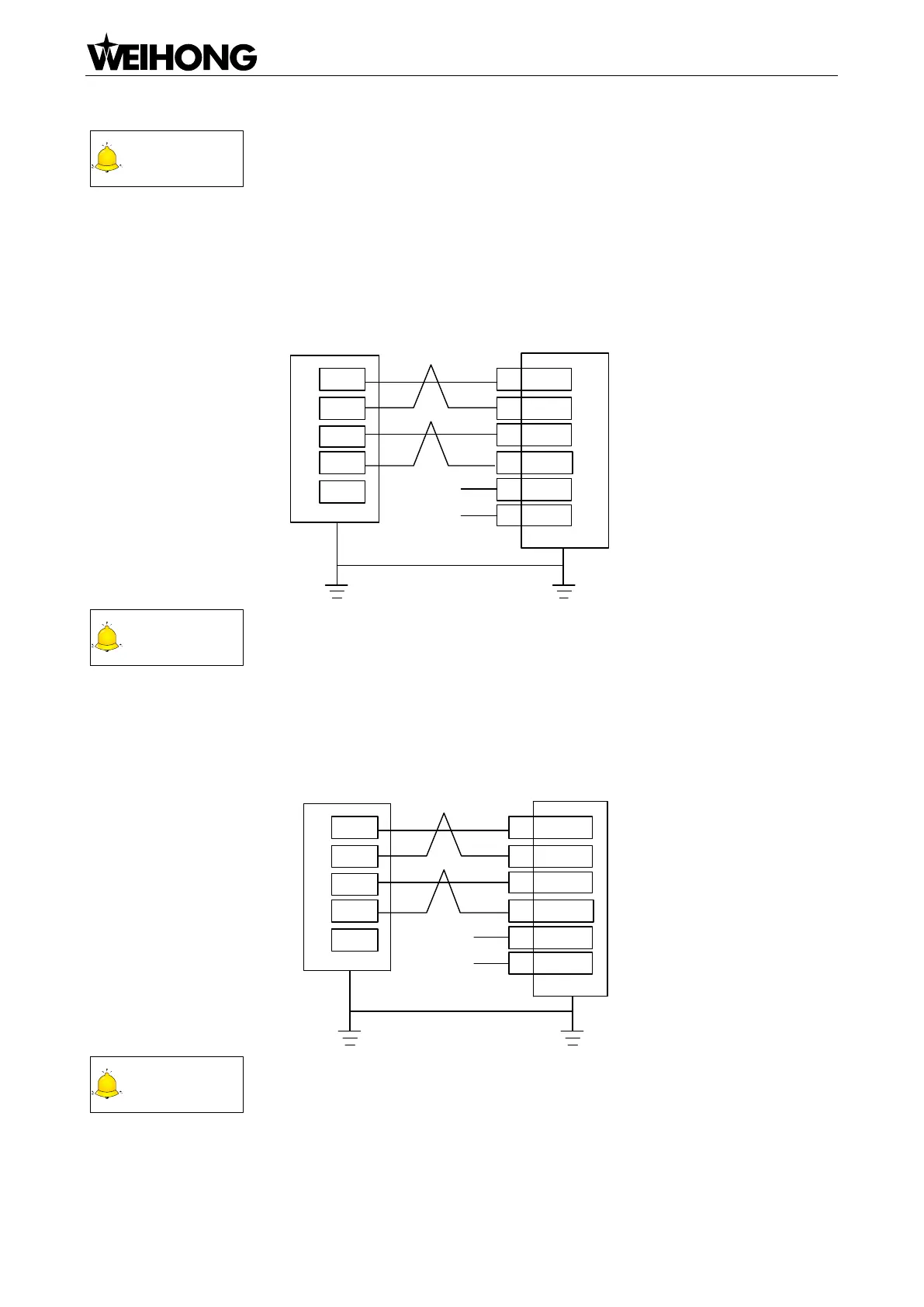

3.5.6 Wiring Diagram of FUJI FALDIC-β Servo Driver
21 *CB
20 CB
8 *CA
7 CA
1 P24
14 M24
24V
COM
FUJI FALDIC-β
Servo Driver
D-
+5V
P+
P-
D+
EX23A
CAUTION
Wirings of X axis, Y axis, and Z axis are the same, and the brake of Z axis is internally controlled.
3.5.7 Wiring Diagram of STONE GS Servo Driver
Z-axis Brake Line
(Black)
Z-axis Brake Line
(Red)
5 BRAKE-
28 Sign-
13 Sign+
27 Pulse-
12 Pulse+
21 BRAKE+
STONE GS Servo Driver
D-
+5V
P+
P-
D+
EX23A
CAUTION
Wirings of X, Y and Z axis are the same, except that two Z-axis brake lines can connect to relay to control
brakes.
