3 Description

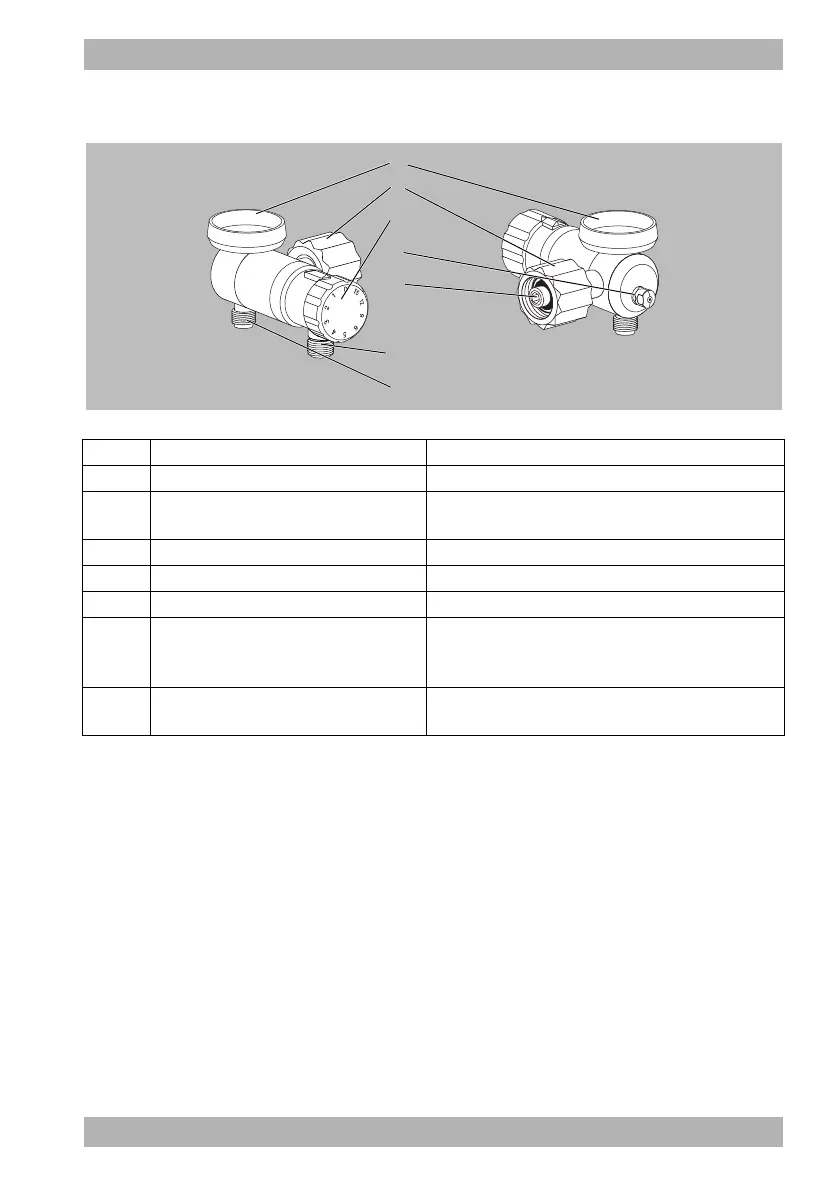

3.1.3 Multistep pressure reducers (Fast)
1
2
3
4
5
6
7
No. Designation Description
1 Rotatable contents indicator Indicates cylinder pressure.
2
Connecting bolt with hand-screwed
connection
Connects the pressure reducer to the oxygen cylinder.
3 Handwheel Used to set inhalation flow.
4 Safety valve Protects against excessively high pressure.
5 Disposable filter Protects against external soiling.
6
Inhalation outlet
(UNF 9/16” thread)
Connects the pressure reducer with connected
accessories (e.g., nasal cannulas, masks, intermediate
humidifiers).
7
Pressure outlet
(G 3/8” thread)
Connects the pressure reducer with a connected
device.
