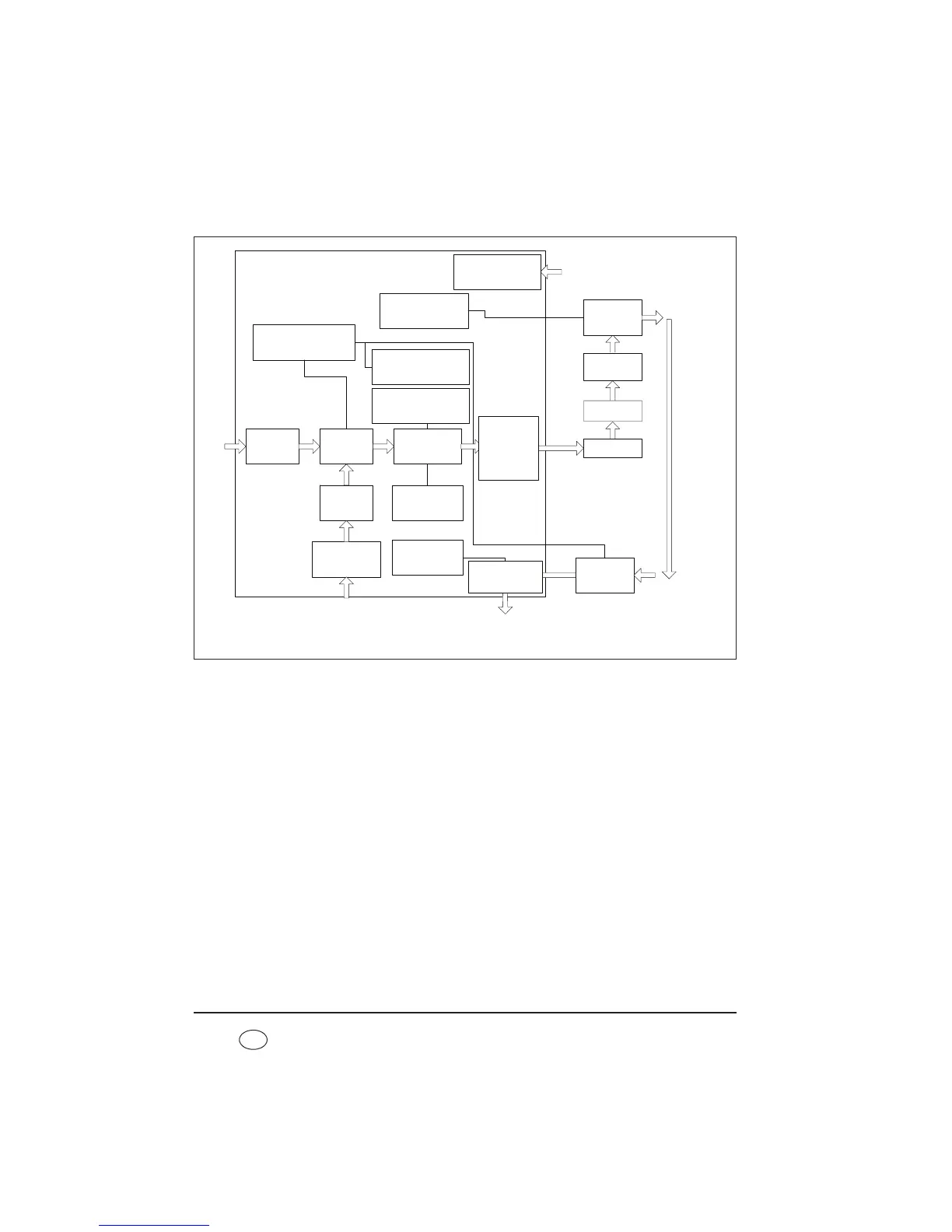

11.7.3 Double patient circuit with patient valve (VENTIlogic LS only)
Filter
Blower
Flow
measuring
section insp.
O
2
valve
Non-return
valve
O
2
sensor
Patient
valve
Patient
Pressure sensor
for patient
Pressure sensor for
device outlet port
Flow sensor
Pressure sensor
for atmosphere
O
2
supply
0-15 l/min at < 1000 hPa
Pressure sensor for
valve control
Switching valves for
exhalation valve
Non-return
valve with
reverse
leakage
Exhaled air
Flow sensor
Flow measuring
section exp.
Humidifier
Bacteria
filter
