Weir SPM Flow Line - Rib Installation

14
INSTALLING SPM
®
FSR COMPONENTS
- "RIB" INSTALLATION
STEP 1

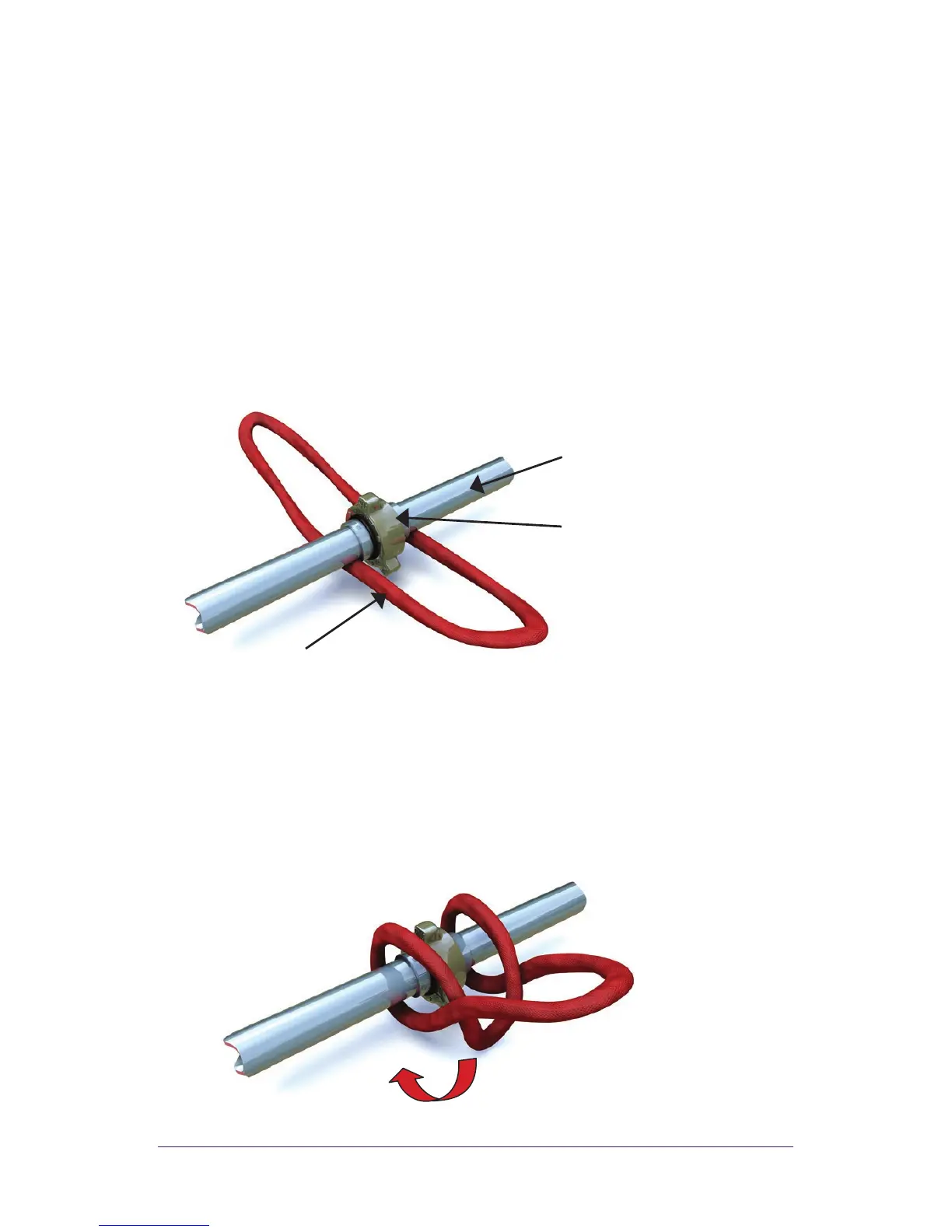

Begin by positioning the Rib beneath flow line as shown. The Rib
profile should straddle the union assembly.
NOTE THAT PIPING MIGHT REQUIRE ELEVATION IN ORDER
TO FIT THE RIB BENEATH - SEE PAGE 22 “RECOMMENDED
ASSEMBLY AID” FOR COMPLETE DETAILS.
STEP 2
Next, bring end “A” up and over piping and union assembly. Insert
end “A” down through end “B” opening. Pull “A” back through to
original side as shown.
END “A”
END “B”
At this point keep
END “B” stationary
Piping
Union Assembly
SPM
®
FSR
™
Rib
END “A”
END “B”
