Weir SPM Flow Line - Correct Rib Configuration

18

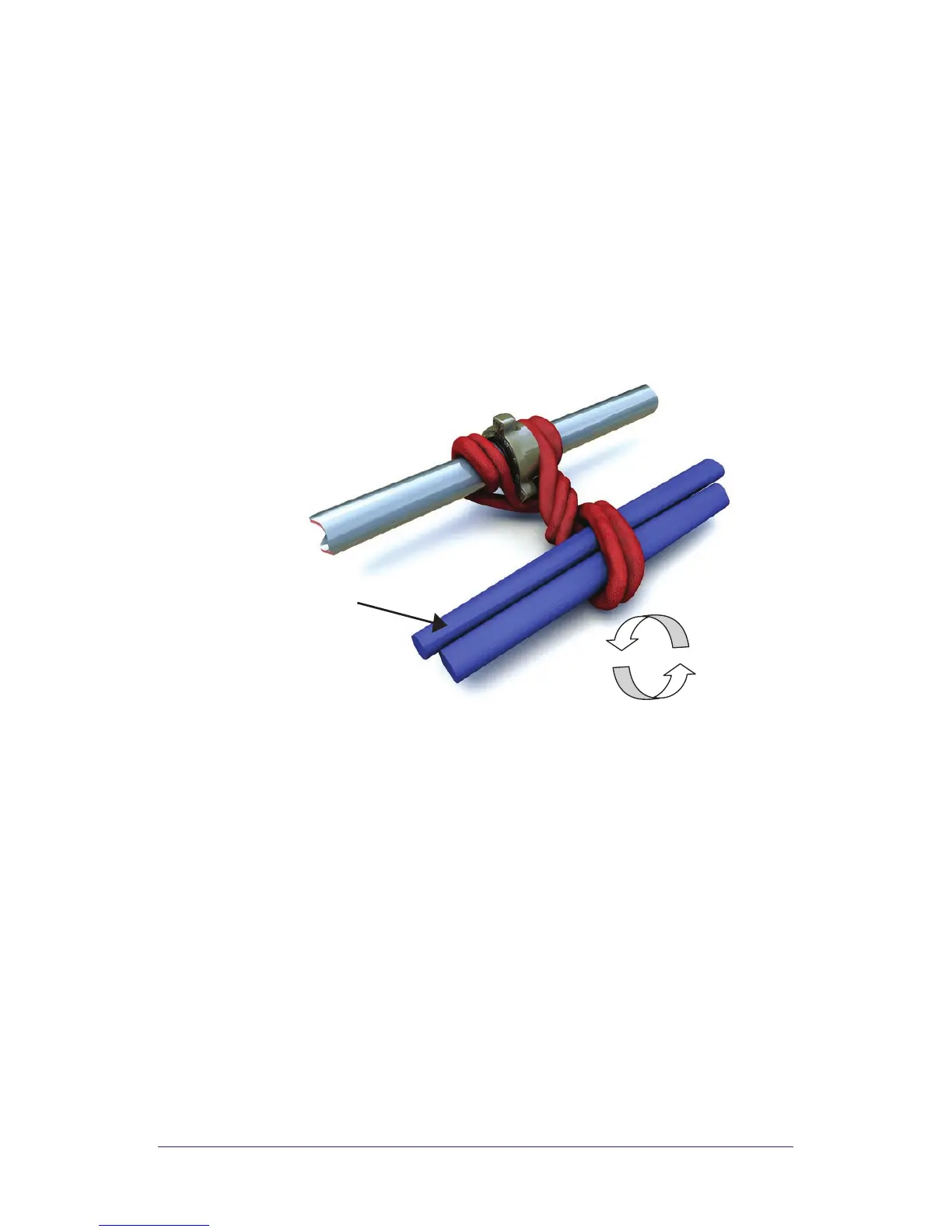

INSTALLING SPM
®
FSR COMPONENTS
- CORRECT RIB CONFIGURATION
(Shown with SPM
®
FSR Spine installed)
PRIMARY Method
This is the recommended method of installing SPM
®
FSR Ribs.
ROTATE “A” and “B” ends 270° from flat before installing SPM
®
FSR Spine.
• This takes up extra slack
• Makes connection more secure
Rotate 270°
(Common on 2” Pipe)
SPM
®
FSR Rib
SPM
®
FSR Spine
