Weishaupt EM3/2 - 3 Installation; 3.1 Installing Fieldbus Module

Installation and operating instruction
Fieldbus module EM3/2
3 Installation
83296302 1/2018-01 La
6-32
3 Installation
3.1 Installing Fieldbus module
DANGER
Risk of electric shock
Working on the device when voltage is applied can lead to electric shock.
Isolate the device from the power supply prior to starting any work.
Safeguard against accidental restart.

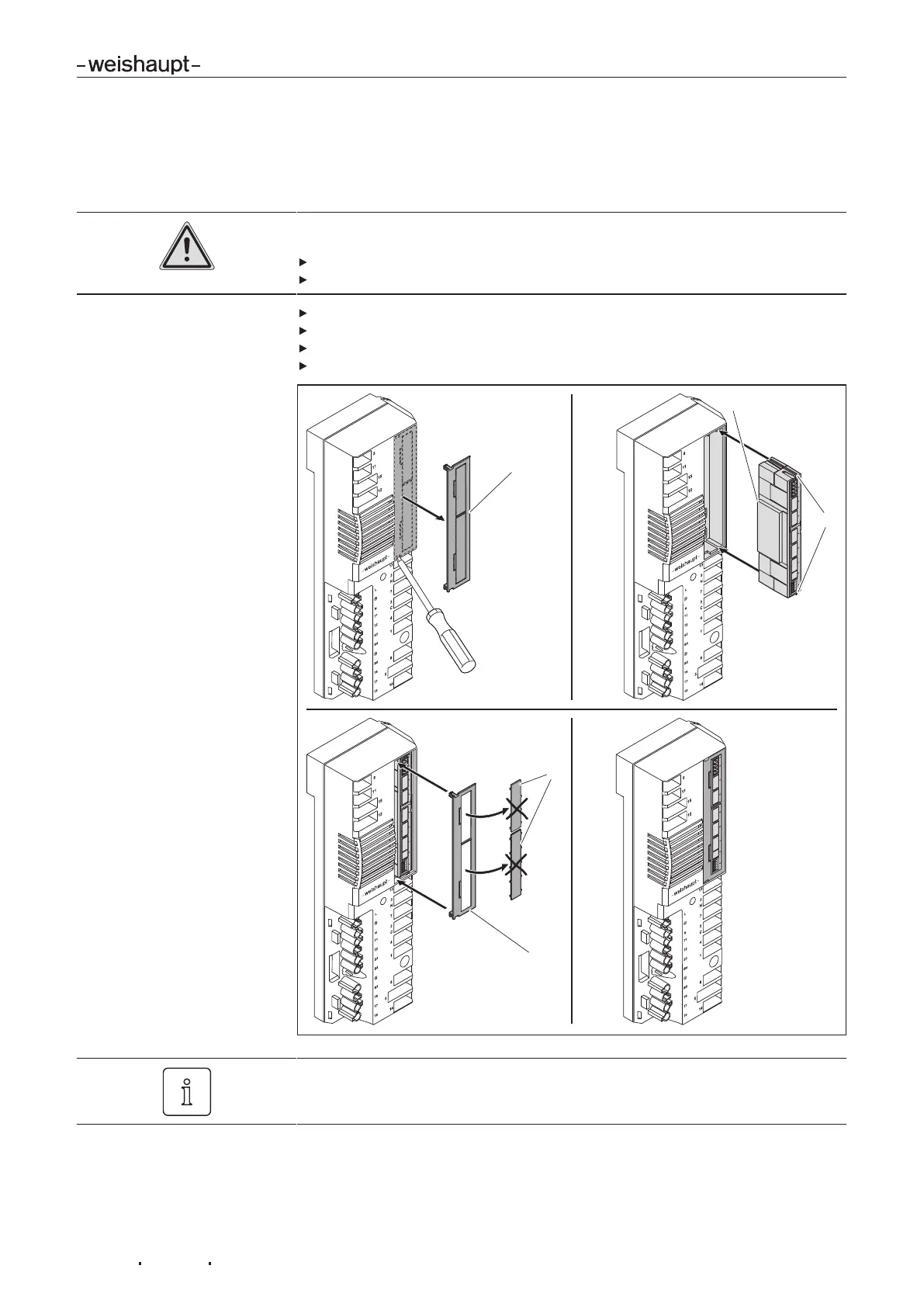

Unplug 7 pole connection plug on burner.
Remove cover1.
Carefully install module2 using the guides3.
Break out the pre-cut surfaces4 and fit cover1.
1
3
2
4
1
You can check if the combustion manager has recognised the module by interrog-
ating Information 13 in the Info level, see installation and operating manual of the
burner.
