WEISS HP140 - Installation; Installation of ACOPOS Drives

WAS.handling Electro Documentation 8

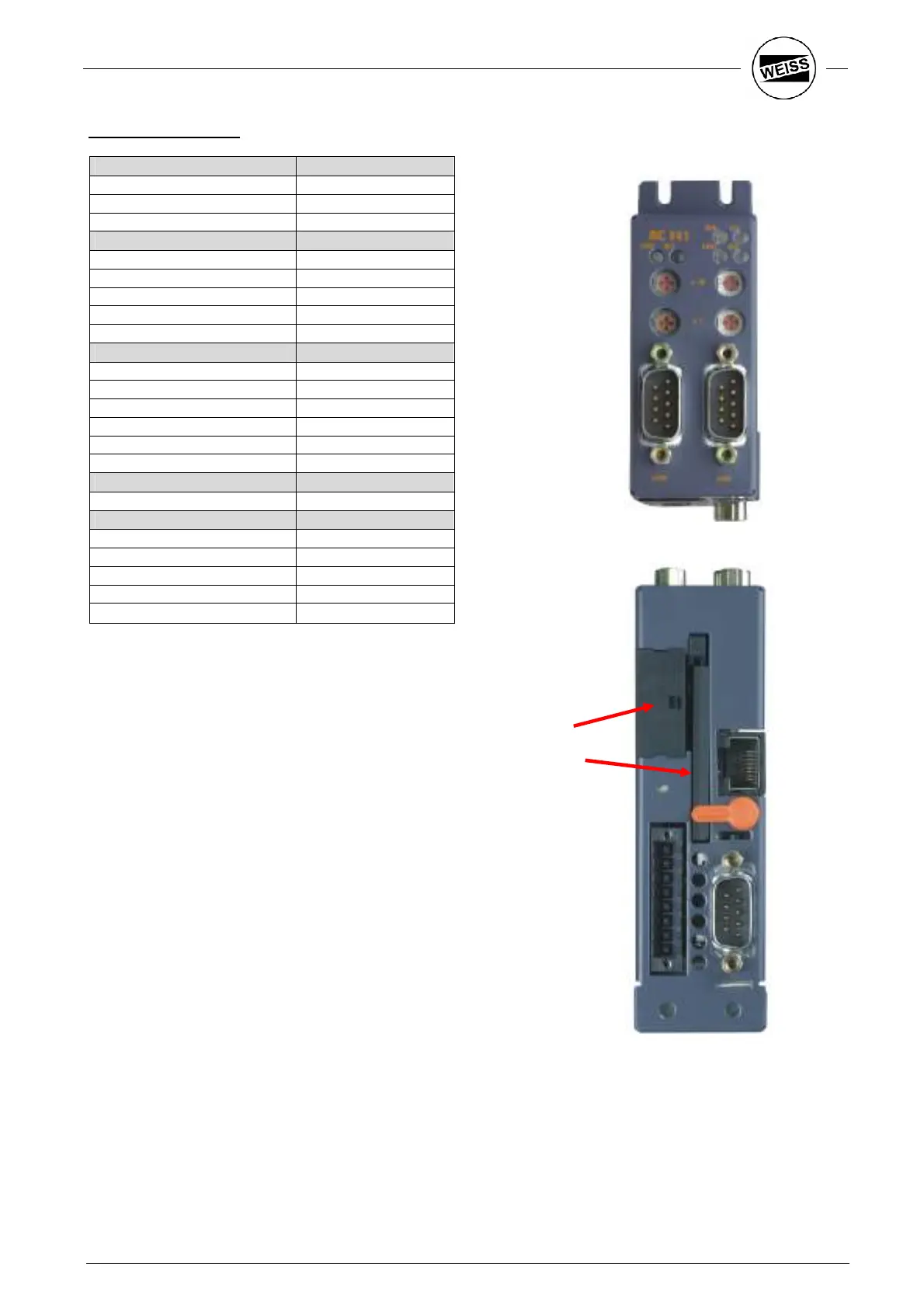

Slot-PLC AC141.61.3
CPU
Processor clock 100MHz
SRAM 32kB
DRAM 32MB
Interface IF1 X1
Interface type RS232
Potential separation NO
Design 9pol. DSUB-plug
max. baud rate 115,2 kBaud
Indications X1 LED
Interface IF2 X2
Interface type RS232
Potential separation NO
Design 9pol. DSUB-plug
max. baud rate 115,2 kBaud
Indications X1 LED
Interface type RS232
Interface IF3 X3
Interface type CAN like IF2
Interface IF5 X5
Interface type Ethernet
Potential separation JA
Design RJ45 socket
Baud rates 10/100 Mbit/s
Indications ACT LED
Battery slot
Memory Card
X1 – RS232
X5 - Ethernet
X4 – dig. I/O
X2 – CAN internal
X3 – CAN - customer
