WEISS HP140 - Product Description; Overview

5 WAS.handling Electro Documentation
2 Product description

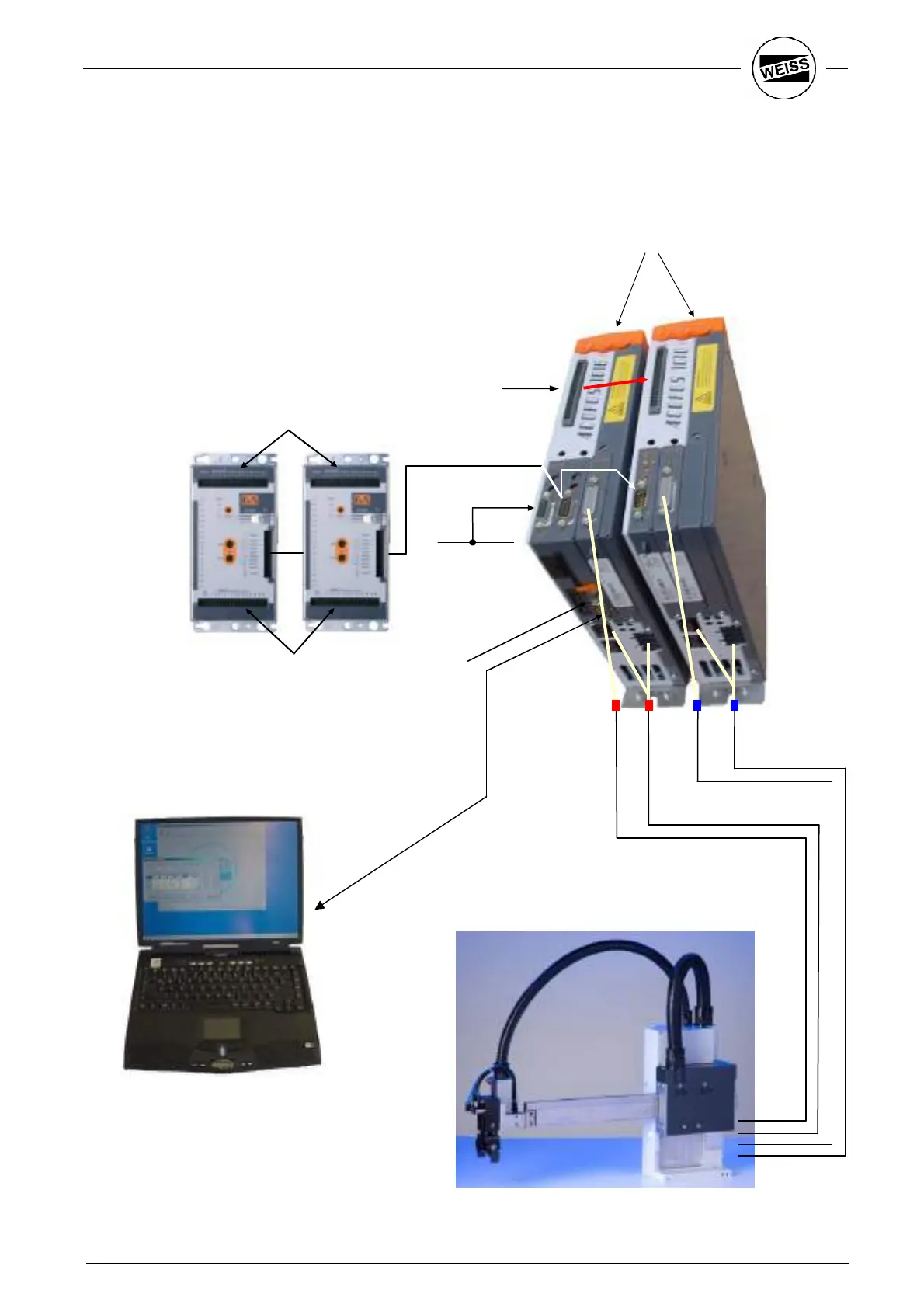

2.1 Overview
The device consists of the following assemblies:
• mechanic
• drive controls
• cable set
• option: digital I/O
internal CAN-Bus
customer interface:
digital inputs
customer interface:
digital outputs
mains connection
motor line red
encoder line red
Eingänge des
Verstärkers:
- Enable (Not-Aus)
- Quickstop
- 24V Versorgung
customer interface
- Profibus or
- CAN
option:
1 or 2 digital -
I/O-Moduls
with 16 In- and
Outputs each
motor line blue
encoder line blue
drive control
Z-Axis
Parameterization via
RS232 or Ethernet
drive control
Y-Axis
Ethernet
