WAS.handling Electro Documentation 26

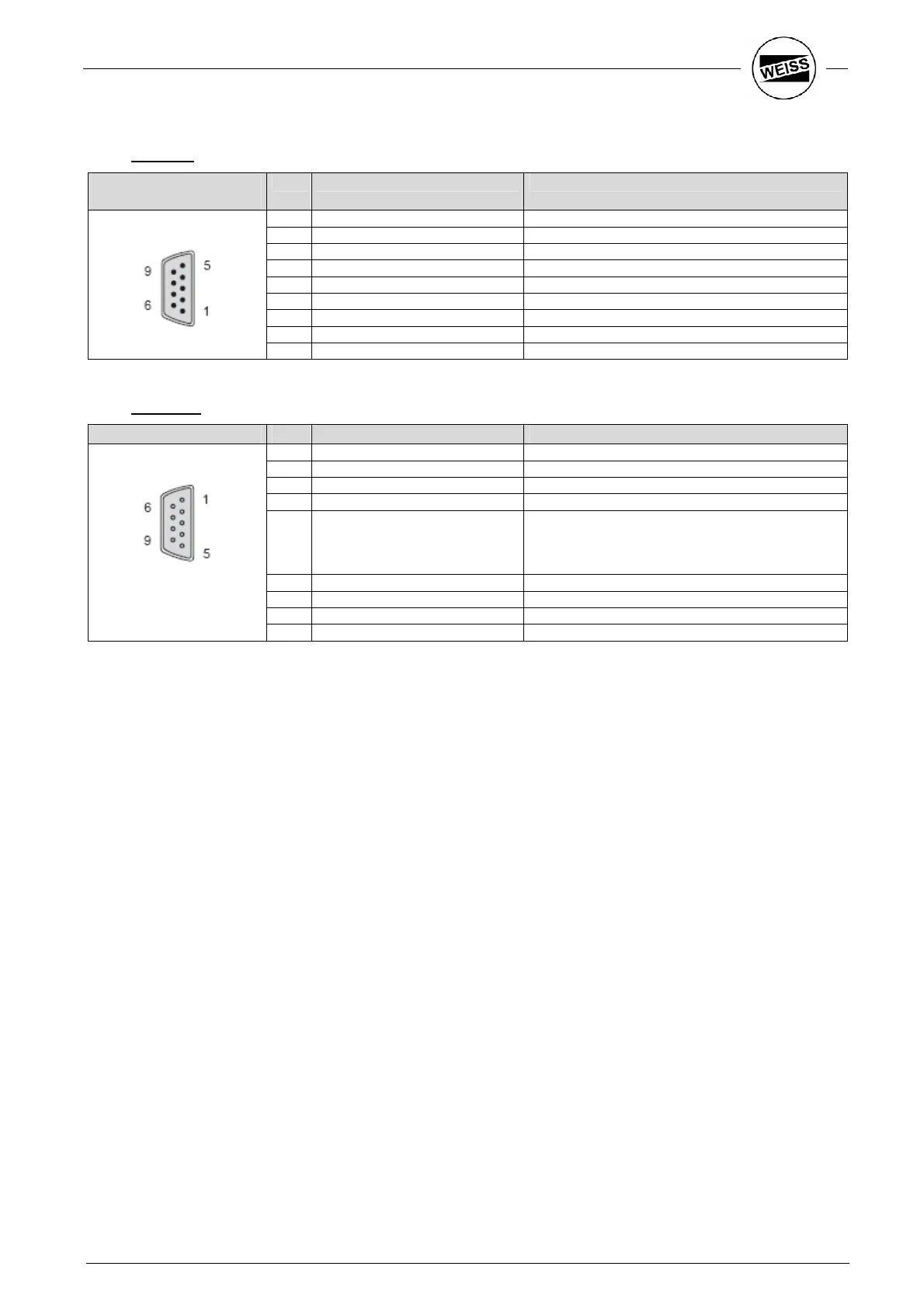

3.7 Customers interface

3.7.1 Profibus

D-Sub – Socket

(female)

Pin Description Function

1 - -

2 - -

3 DATA Data

4 CNTRL Transmit Enable

5 Profibus_GND Profibus_GND (potential separated)

6 +5V / 50mA +5V Supply / 50mA (potential separated)

7 - -

8 DATA\ Data\

9 CNTRL\ Transmit Enable\

3.7.2 CAN Bus

D-Sub – Plug (male) Pin Description Function

1 - -

2 CAN_L CAN Low

3 CAN_GND CAN 0V

4 - -

5 -

6 - -

7 CAN_H CAN High

8 - -

9 - -
