39 WAS.handling Electro Documentation
6 Appendix
6.1 Assignment of Cables
The following lines are available in length 5m, 10m, 15m, 20m, 25m.

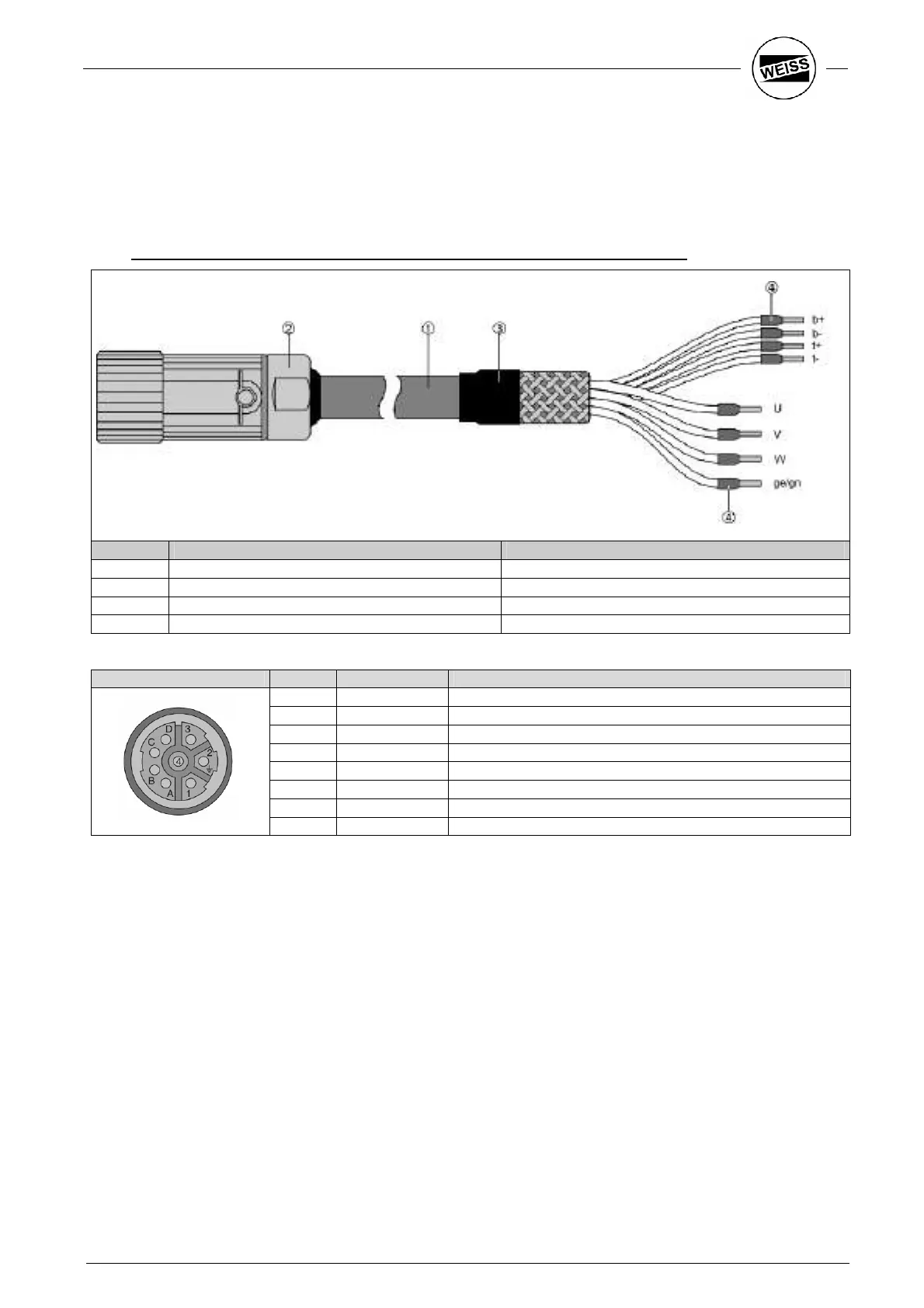

6.1.1 Assignment of Motor line (563-100000070…74 to 563-100000080…84):
Item Description Remark
1 Motor line 4 x1,5mm² + 2 x 2 x 0,75 mm²
2 Circular Connector BSTA 108 FR 19 08 0006 000
3 Shrink wrap
4 Wire tip sleeve
Circular Connector Pin Designation Function
1 U Motor connection U
4 V Motor connection V
3 W Motor connection W
2 PE protective ground connector
A T+ Temperature sensor
B T- Temperature sensor
C B+ Break + (Reserved)
D B- Break - (Reserved)
Rote Marking = vertical motor (Z - Axis)
Blue Marking = horizontal motor (Y - Axis)
