WEISS HP140 - Page 16

13 WAS.handling Electro Documentation
3.1.2 Model for 400VAC

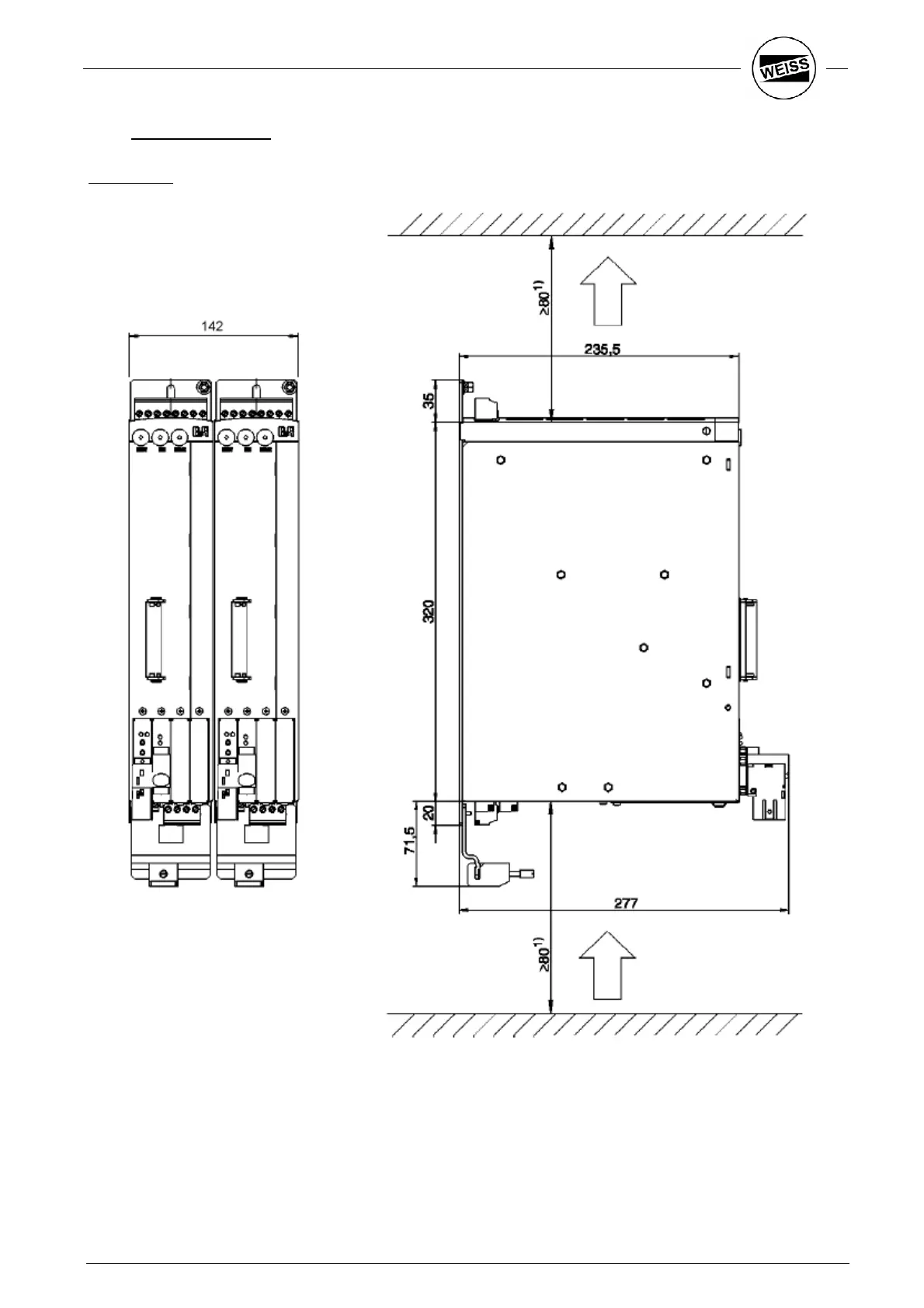

Dimensions:
2) A free space of 80 mm must be provided above and below the ACOPOS drive to ensure adequate air
circulation.
For permitting an easy wiring, there must be a space of at least 100mm below the ACOPOS drive.
2 piece of Acopos 8V1022.50-
Air output
Air input
