Welch 8905 - Pump Exploded Views and Parts List

30

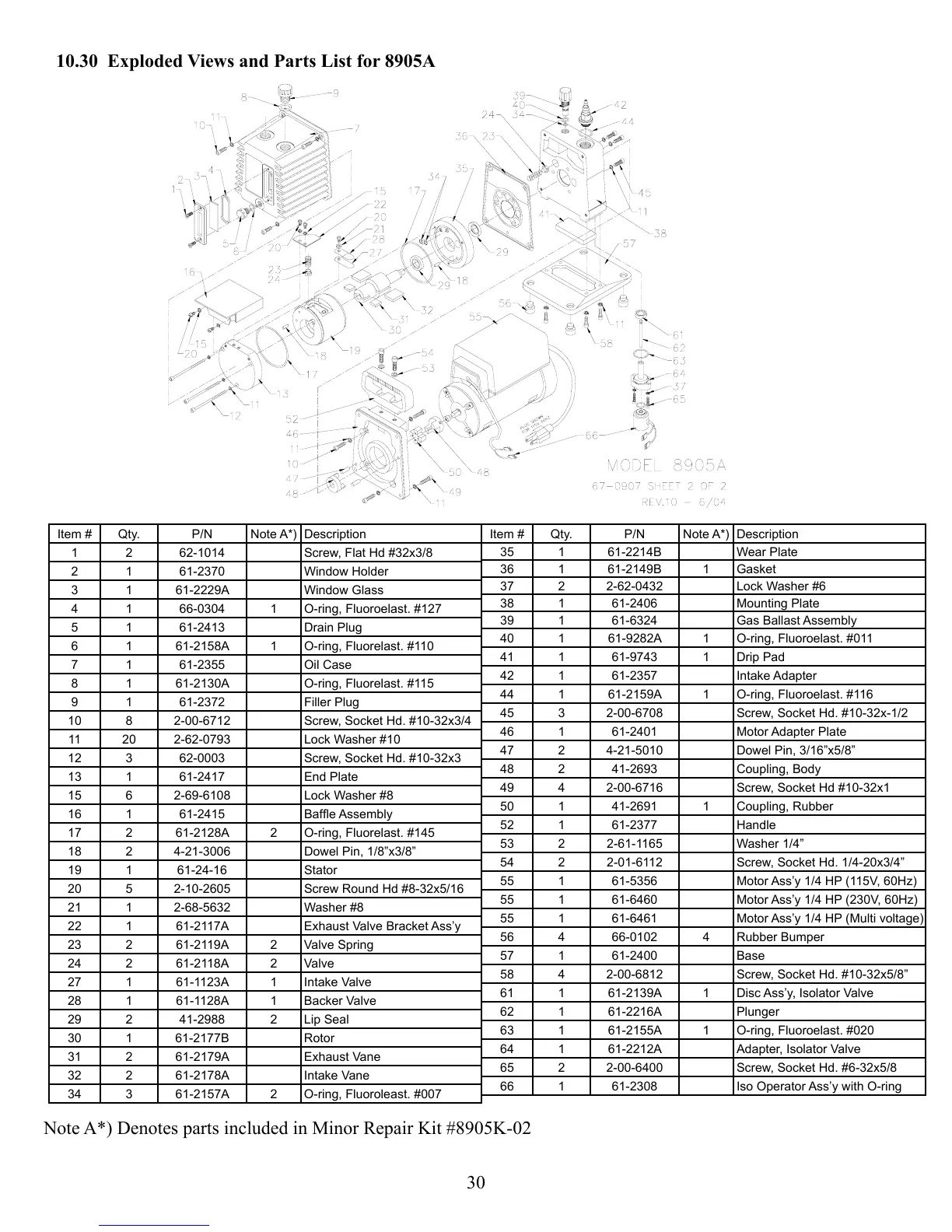

10.30 Exploded Views and Parts List for 8905A
Item # Qty. P/N Note A*) Description
1 2 62-1014 Screw, Flat Hd #32x3/8
2 1 61-2370 Window Holder
3 1 61-2229A Window Glass
4 1 66-0304 1 O-ring, Fluoroelast. #127
5 1 61-2413 Drain Plug
6 1 61-2158A 1 O-ring, Fluorelast. #110
7 1 61-2355 Oil Case
8 1 61-2130A O-ring, Fluorelast. #115
9 1 61-2372 Filler Plug
10 8 2-00-6712 Screw, Socket Hd. #10-32x3/4
11 20 2-62-0793 Lock Washer #10
12 3 62-0003 Screw, Socket Hd. #10-32x3
13 1 61-2417 End Plate
15 6 2-69-6108 Lock Washer #8
16 1 61-2415 Bafe Assembly
17 2 61-2128A 2 O-ring, Fluorelast. #145
18 2 4-21-3006 Dowel Pin, 1/8”x3/8”
19 1 61-24-16 Stator
20 5 2-10-2605 Screw Round Hd #8-32x5/16
21 1 2-68-5632 Washer #8
22 1 61-2117A Exhaust Valve Bracket Ass’y
23 2 61-2119A 2 Valve Spring
24 2 61-2118A 2 Valve
27 1 61-1123A 1 Intake Valve
28 1 61-1128A 1 Backer Valve
29 2 41-2988 2 Lip Seal
30 1 61-2177B Rotor
31 2 61-2179A Exhaust Vane
32 2 61-2178A Intake Vane
34 3 61-2157A 2 O-ring, Fluoroleast. #007
Item # Qty. P/N Note A*) Description
35 1 61-2214B Wear Plate
36 1 61-2149B 1 Gasket
37 2 2-62-0432 Lock Washer #6
38 1 61-2406 Mounting Plate
39 1 61-6324 Gas Ballast Assembly
40 1 61-9282A 1 O-ring, Fluoroelast. #011
41 1 61-9743 1 Drip Pad
42 1 61-2357 Intake Adapter
44 1 61-2159A 1 O-ring, Fluoroelast. #116
45 3 2-00-6708 Screw, Socket Hd. #10-32x-1/2
46 1 61-2401 Motor Adapter Plate
47 2 4-21-5010 Dowel Pin, 3/16”x5/8”
48 2 41-2693 Coupling, Body
49 4 2-00-6716 Screw, Socket Hd #10-32x1
50 1 41-2691 1 Coupling, Rubber
52 1 61-2377 Handle
53 2 2-61-1165 Washer 1/4”
54 2 2-01-6112 Screw, Socket Hd. 1/4-20x3/4”
55 1 61-5356 Motor Ass’y 1/4 HP (115V, 60Hz)
55 1 61-6460 Motor Ass’y 1/4 HP (230V, 60Hz)
55 1 61-6461 Motor Ass’y 1/4 HP (Multi voltage)
56 4 66-0102 4 Rubber Bumper
57 1 61-2400 Base
58 4 2-00-6812 Screw, Socket Hd. #10-32x5/8”
61 1 61-2139A 1 Disc Ass’y, Isolator Valve
62 1 61-2216A Plunger
63 1 61-2155A 1 O-ring, Fluoroelast. #020
64 1 61-2212A Adapter, Isolator Valve
65 2 2-00-6400 Screw, Socket Hd. #6-32x5/8
66 1 61-2308 Iso Operator Ass’y with O-ring
Note A*) Denotes parts included in Minor Repair Kit #8905K-02
