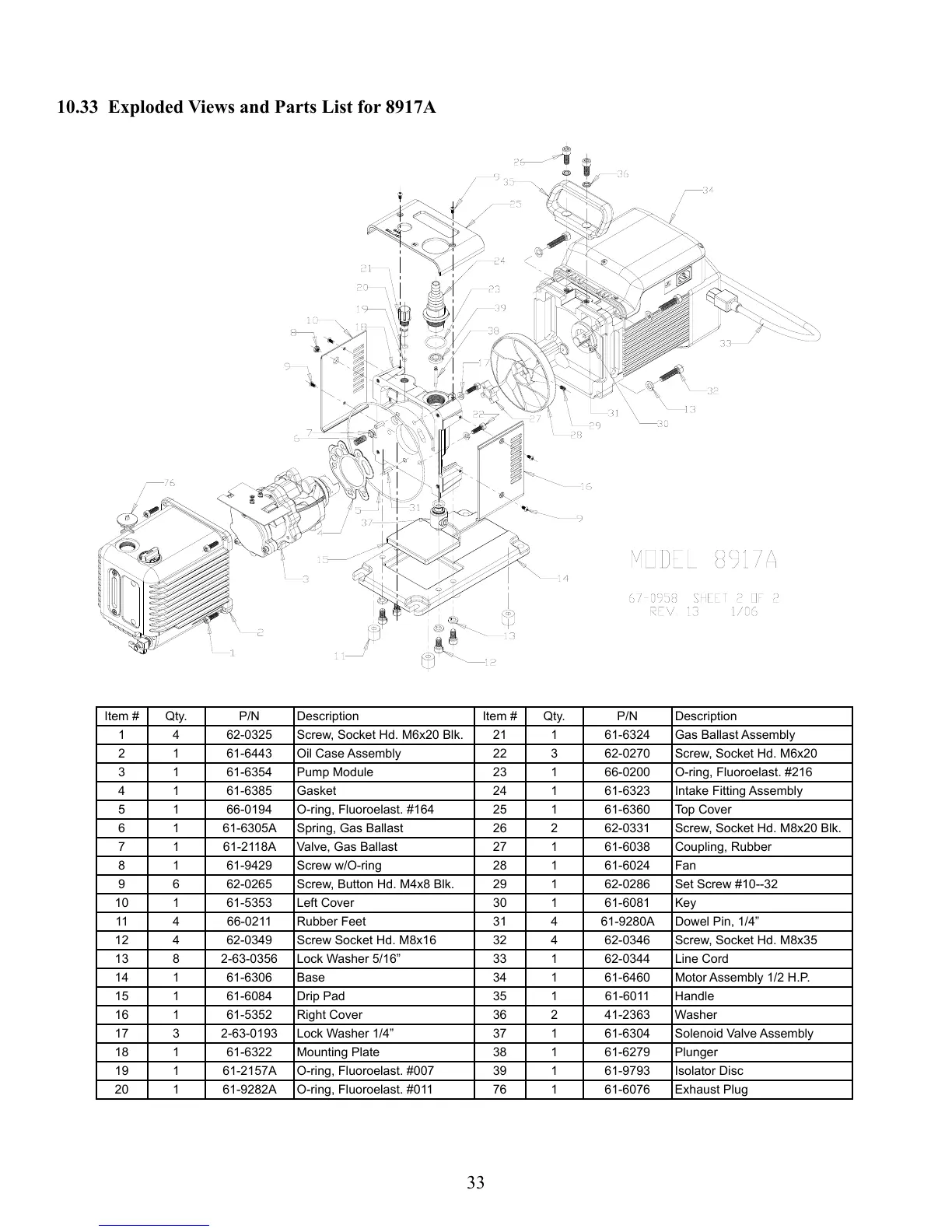

10.33 Exploded Views and Parts List for 8917A
Item # Qty. P/N Description
1 4 62-0325 Screw, Socket Hd. M6x20 Blk.
2 1 61-6443 Oil Case Assembly
3 1 61-6354 Pump Module
4 1 61-6385 Gasket
5 1 66-0194 O-ring, Fluoroelast. #164
6 1 61-6305A Spring, Gas Ballast
7 1 61-2118A Valve, Gas Ballast
8 1 61-9429 Screw w/O-ring
9 6 62-0265 Screw, Button Hd. M4x8 Blk.
10 1 61-5353 Left Cover
11 4 66-0211 Rubber Feet
12 4 62-0349 Screw Socket Hd. M8x16
13 8 2-63-0356 Lock Washer 5/16”
14 1 61-6306 Base
15 1 61-6084 Drip Pad
16 1 61-5352 Right Cover
17 3 2-63-0193 Lock Washer 1/4”
18 1 61-6322 Mounting Plate
19 1 61-2157A O-ring, Fluoroelast. #007
20 1 61-9282A O-ring, Fluoroelast. #011
Item # Qty. P/N Description
21 1 61-6324 Gas Ballast Assembly
22 3 62-0270 Screw, Socket Hd. M6x20
23 1 66-0200 O-ring, Fluoroelast. #216
24 1 61-6323 Intake Fitting Assembly
25 1 61-6360 Top Cover
26 2 62-0331 Screw, Socket Hd. M8x20 Blk.
27 1 61-6038 Coupling, Rubber
28 1 61-6024 Fan
29 1 62-0286 Set Screw #10--32
30 1 61-6081 Key
31 4 61-9280A Dowel Pin, 1/4”
32 4 62-0346 Screw, Socket Hd. M8x35
33 1 62-0344 Line Cord
34 1 61-6460 Motor Assembly 1/2 H.P.
35 1 61-6011 Handle
36 2 41-2363 Washer
37 1 61-6304 Solenoid Valve Assembly
38 1 61-6279 Plunger
39 1 61-9793 Isolator Disc
76 1 61-6076 Exhaust Plug
