Welch 8905 - Page 35

35

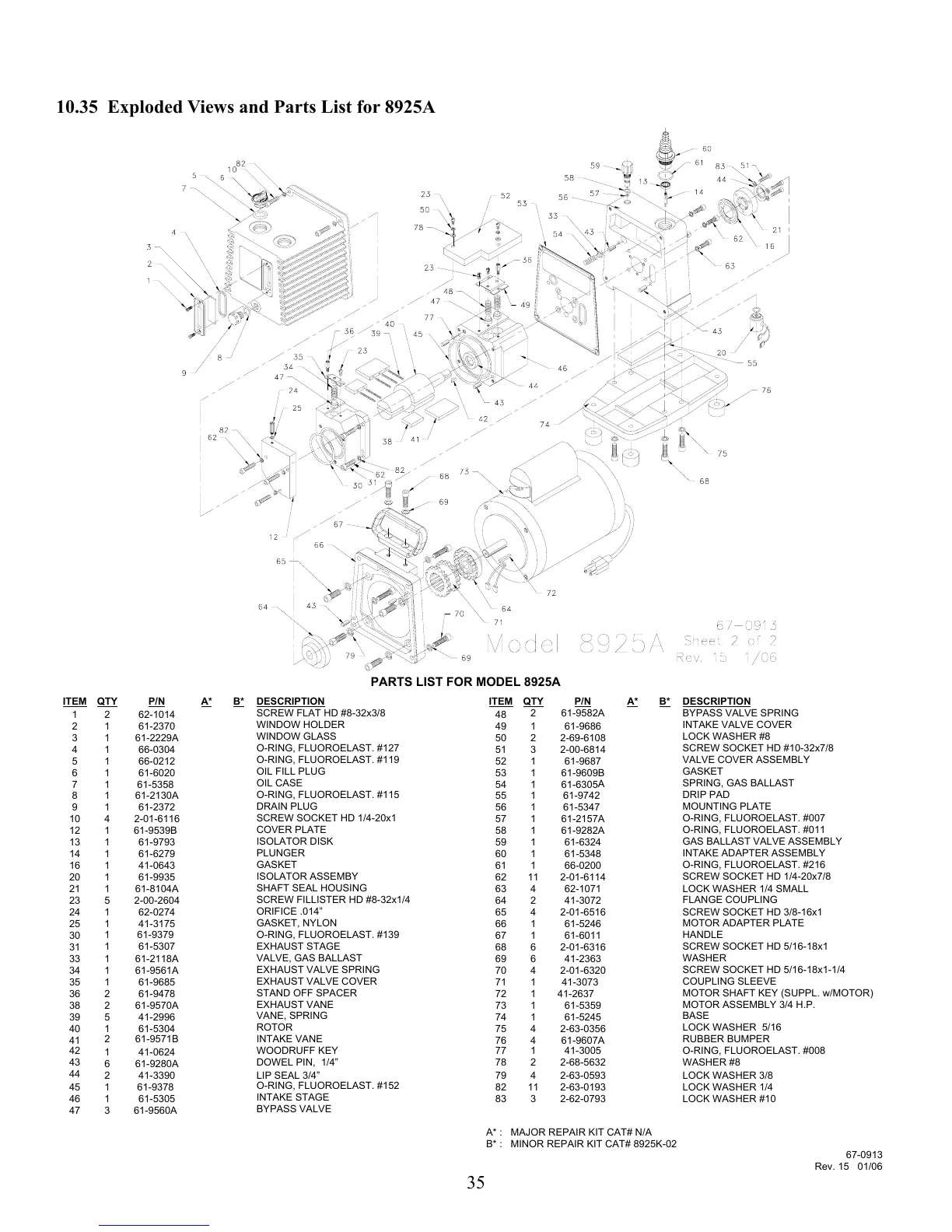

10.35 Exploded Views and Parts List for 8925A
ITEM QTY P/N A* B* DESCRIPTION ITEM QTY P/N A* B* DESCRIPTION
1 2 62-1014
SCREW FLAT HD #8-32x3/8
48
2 61-9582
A
BYPASS VALVE SPRING
2 1 61-2370
WINDOW HOLDER
49 1 61-9686
INTAKE VALVE COVER
3 1 61-2229
A
WINDOW GLASS
50 2 2-69-6108
LOCK WASHER #8
4 1 66-0304
O-RING, FLUOROELAST. #127
51 3 2-00-6814
SCREW SOCKET HD #10-32x7/8
5 1 66-0212
O-RING, FLUOROELAST. #119
52 1 61-9687
VALVE COVER ASSEMBLY
6 1 61-6020
OIL FILL PLUG
53 1 61-9609B
GASKET
7 1 61-5358
OIL CASE
54 1 61-6305
A
SPRING, GAS BALLAST
8 1 61-2130
A
O-RING, FLUOROELAST. #115
55 1 61-9742
DRIP PAD
9 1 61-2372
DRAIN PLUG
56 1 61-5347
MOUNTING PLATE
10 4 2-01-6116
SCREW SOCKET HD 1/4-20x1
57 1 61-2157
A
O-RING, FLUOROELAST. #007
12 1 61-9539B
COVER PLATE
58 1 61-9282
A
O-RING, FLUOROELAST. #011
13 1 61-9793
ISOLATOR DISK
59 1 61-6324
GAS BALLAST VALVE ASSEMBLY
14 1 61-6279
PLUNGE
R
60 1 61-5348
INTAKE ADAPTER ASSEMBLY
16 1 41-0643
GASKET
61 1 66-0200
O-RING, FLUOROELAST. #216
20 1 61-9935
ISOLATOR ASSEMBY
62 11 2-01-6114
SCREW SOCKET HD 1/4-20x7/8
21 1 61-8104
A
SHAFT SEAL HOUSING
63 4 62-1071 LOCK WASHER 1/4 SMALL
23 5 2-00-2604
SCREW FILLISTER HD #8-32x1/4
64 2 41-3072
FLANGE COUPLING
24 1 62-0274
ORIFICE .014”
65 4 2-01-6516 SCREW SOCKET HD 3/8-16x1
25 1 41-3175
GASKET, NYLON
66 1 61-5246
MOTOR ADAPTER PLATE
30
1 61-9379 O-RING, FLUOROELAST. #139
67 1 61-6011
HANDLE
31
1 61-5307 EXHAUST STAGE
68 6 2-01-6316
SCREW SOCKET HD 5/16-18x1
33 1 61-2118
A
VALVE, GAS BALLAST
69 6 41-2363
WASHER
34 1 61-9561
A
EXHAUST VALVE SPRING
70 4 2-01-6320
SCREW SOCKET HD 5/16-18x1-1/4
35 1 61-9685
EXHAUST VALVE COVER
71 1 41-3073
COUPLING SLEEVE
36 2 61-9478
STAND OFF SPACER
72 1 41-2637
MOTOR SHAFT KEY (SUPPL. w/MOTOR)
38 2 61-9570
A
EXHAUST VANE
73 1 61-5359
MOTOR ASSEMBLY 3/4 H.P.
39 5 41-2996
VANE, SPRING
74 1 61-5245
BASE
40 1 61-5304
ROTO
R
75 4 2-63-0356
LOCK WASHER 5/16
41
2 61-9571B INTAKE VANE
76 4 61-9607
A
RUBBER BUMPER
42
1 41-0624
WOODRUFF KEY 77 1 41-3005 O-RING, FLUOROELAST. #008
43
6 61-9280
A
DOWEL PIN, 1/4” 78 2 2-68-5632 WASHER #8
44
2 41-3390 LIP SEAL 3/4” 79 4 2-63-0593 LOCK WASHER 3/8
45 1 61-9378
O-RING, FLUOROELAST. #152
82 11 2-63-0193 LOCK WASHER 1/4
46 1 61-5305
INTAKE STAGE
83 3 2-62-0793 LOCK WASHER #10
47 3 61-9560A
BYPASS VALVE
67-0913
Rev. 15 01/06
B* : MINOR REPAIR KIT CAT# 8925K-02
A* : MAJOR REPAIR KIT CAT# N/A
PARTS LIST FOR MODEL 8925
A
