10
SETUP FOR GAS OR GASLESS MIG WELDING
Smooth consistent wire feed is critical to achieve professional results.

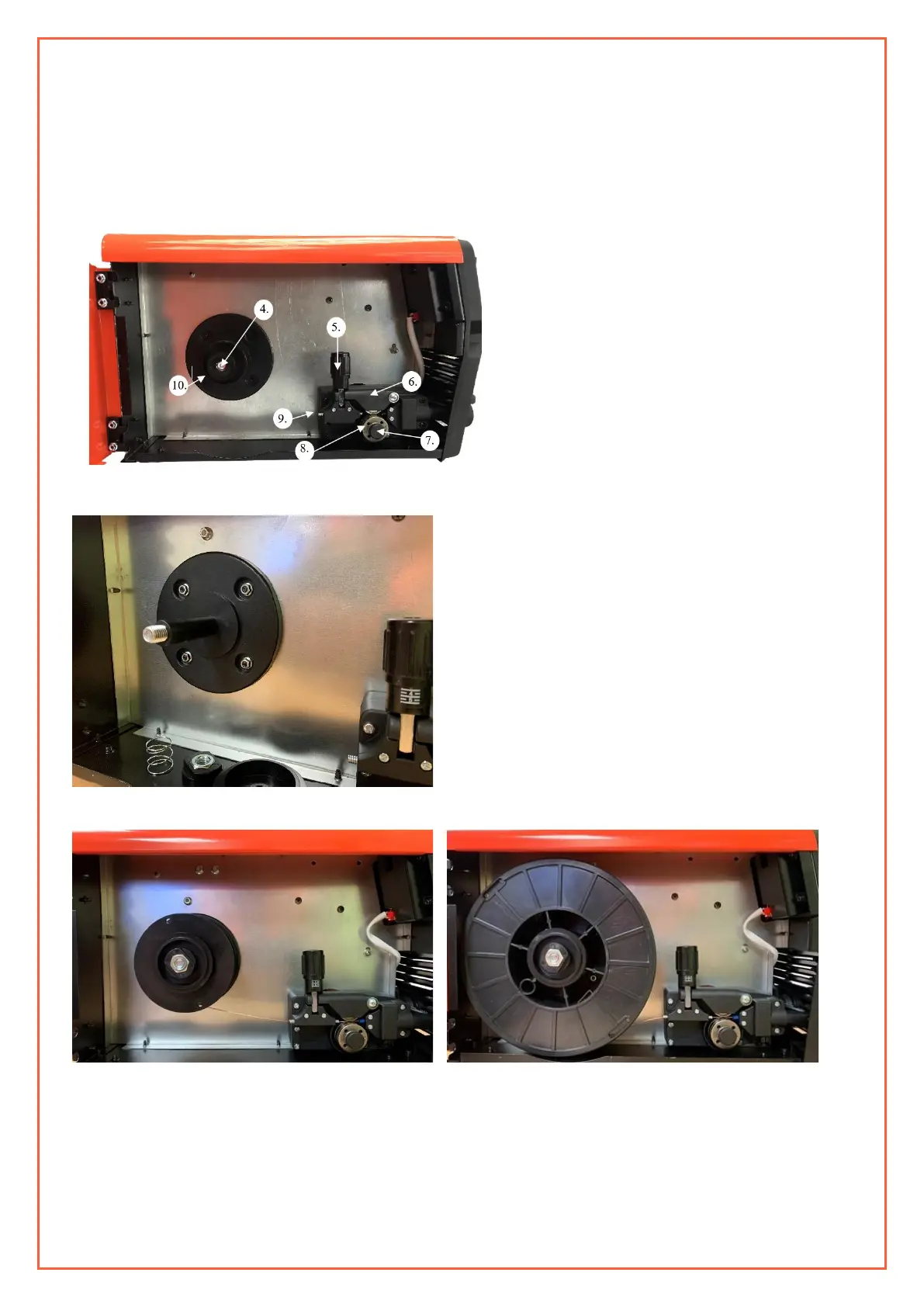

FITTING THE WIRE
• Open the side cover door for the wire feed compartment.
Remove the wire spool retaining nut (4), tensioner spring and
flange.
• Fit either the 5Kg/200mm or 1Kg/100mm diameter wire spool to the spool holder. Ensure the end of the wire feeds
towards the drive rollers from the bottom of the spool.
• Align the wire spool flange, tensioner spring and tighten the retaining nut.
