SETUP FOR MMA (STICK) WELDING
Please ensure you have all relevant safety equipment and PPE ready.
This setup is for the most common electrode positive setting for General purpose rods. Please check your electrode packaging
to confirm.

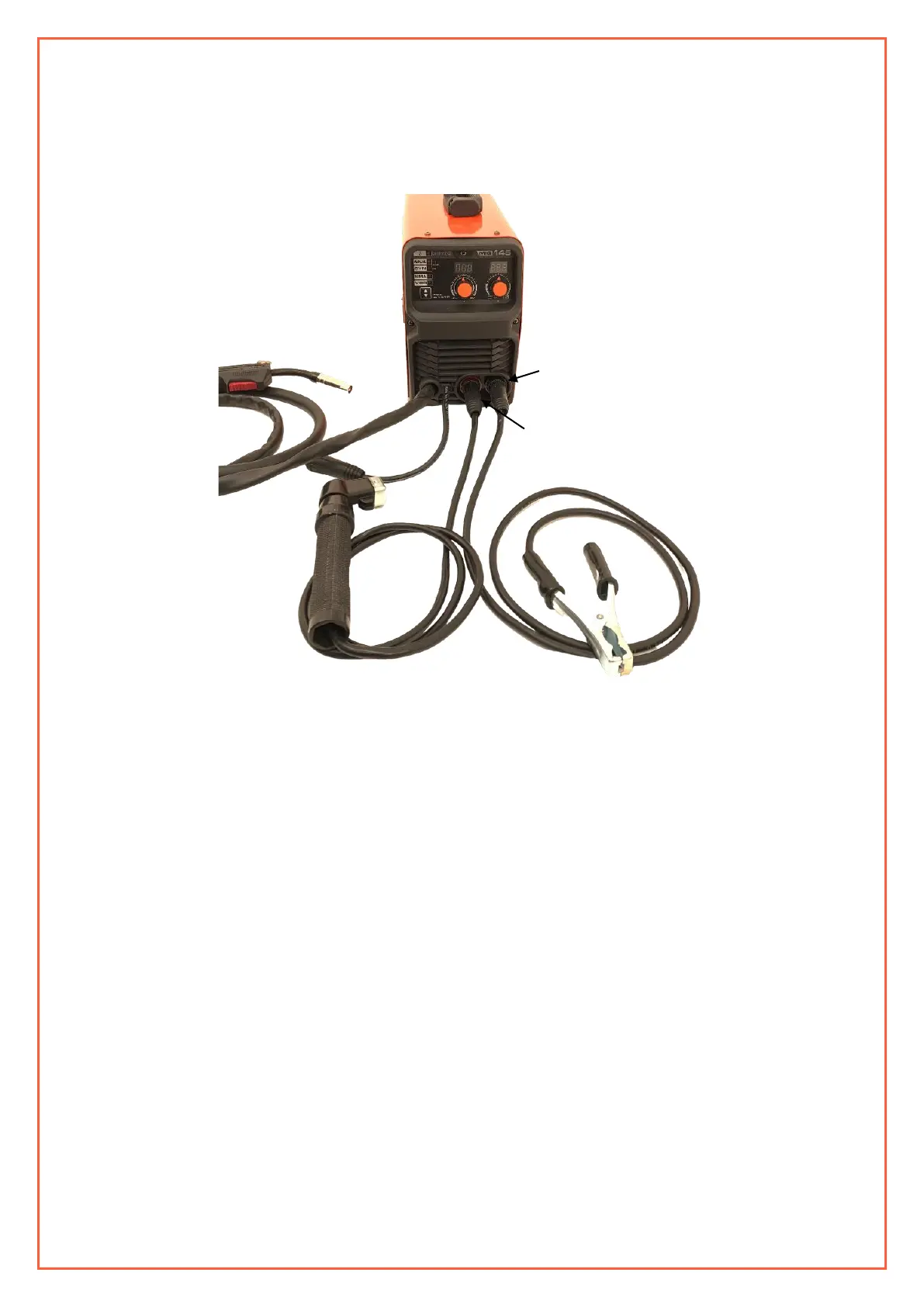

• Connect the earth clamp cable into the NEGATIVE (3) terminal on the front of the machine. Connect the Earth clamp
to the work piece. It is important the earth clamp makes strong contact with bare metal – remove paint, rust or other
contaminates to ensure strong contact. Failure to do so will reduce your welding performance.
• Connect the electrode holder cable into the + POSITIVE (2) terminal on the front of the machine.
Ensure that the plug is secure in the socket to reduce any chance of arcing from loose connection
• With the main power switch is in the OFF position. Plug the 10amp plug into the 10amp wall socket. Turn power to the
ON position on both the wall socket and the power source. The front panel will illuminate, and the cooling fan will start.
