Page 10

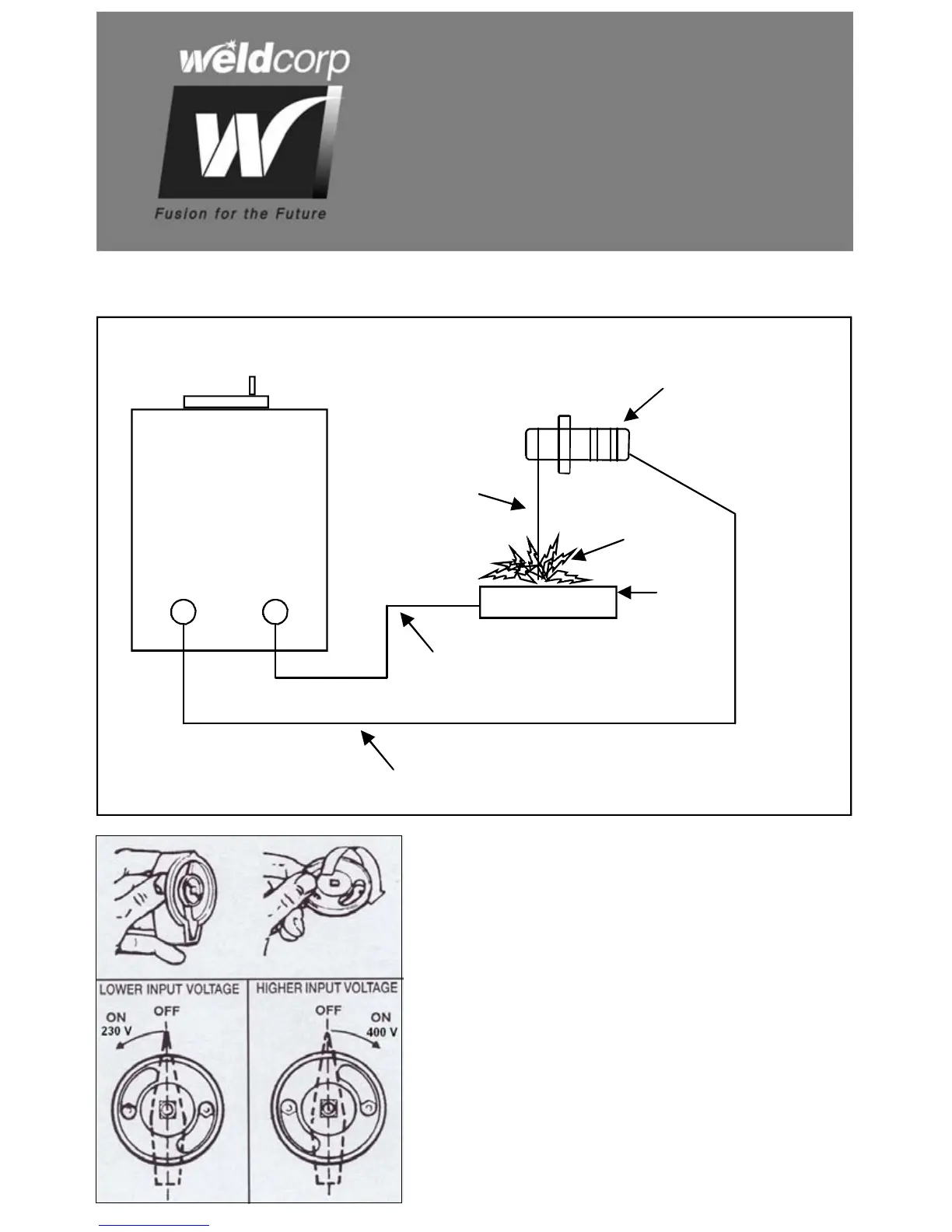

SET UP OF THE WELDER
WELDING
MACHINE
ELECTRODE LEAD
GROUND EARTH CABLE
WORK
ARC
ELECTRODE
HOLDER
ELECTRODE
HOW TO SELECT 230/400 V FOR THE
ARC 170
To change the voltage you need to unscrew the
knob of the commutator. At the back of it there
is a plastic cam. According to the position, turn
the know towards either the 230V or 400V.
WARNING: WHEN SETTING THE MACHINE
UP FOR 415 V YOU WILL NEED TO ALSO FIT
AN APPROVED 415 V POWER PLUG.
(NOT INCLUDED.) ENSURE THAT YOU HAVE
THIS PLUG FITTED BY AN ELECTRICIAN OR
AUTHORISED REPAIR AGENT.
