11.2 Assembly and Parts List - Wirefeed

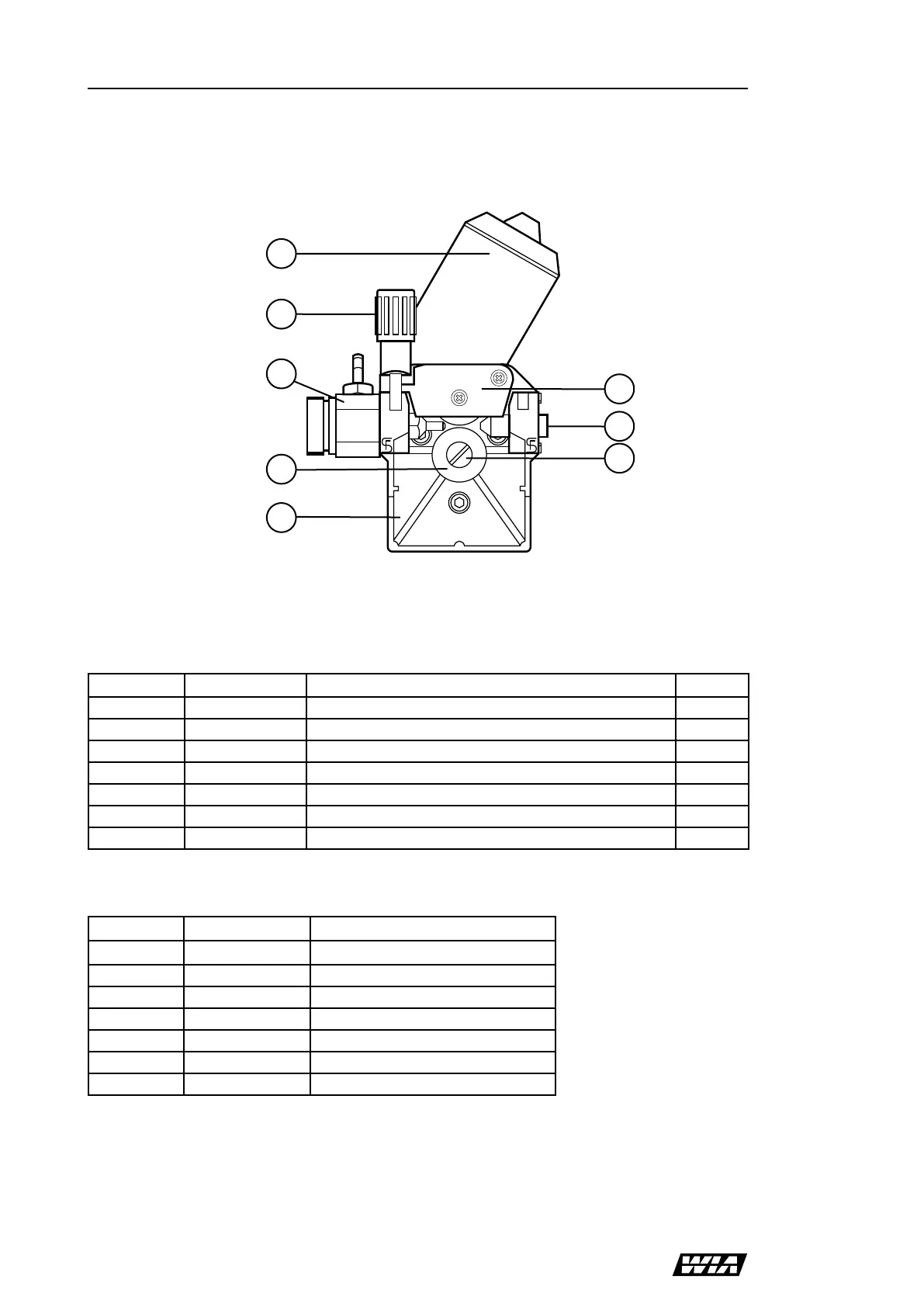

Fig 10 Wirefeed Assembly
Item # Part # Description Qty
1 WF005 Wirefeed Motor 1
2 WF006 Feedplate 1
3 WF007 Euro Adapter 1
4 WF001-5 Compression Screw 1
5 WF001-4 Top Roller Arm 1
6 W26-0/13 Inlet Guide 1
7 W27-0/9 Retaining Screw 1
Feed Rolls
Item # Part # Description
8 W26-0/8 0.6 + 0.8mm, Solid Wire
8 W26-5/8 0.9 + 1.2mm, Solid Wire (fitted)
8 W26-2/8 1.0 + 1.2mm, Solid Wire
8 W26-4/8 1.2 + 1.6mm, Solid Wire
8 W26-3/8 1.0 + 1.2mm, Aluminium Wire
8 W26-7/8 1.0 + 1.2mm, Flux Cored Wire
8 W26-6/8 1.2 + 1.6mm, Flux Cored Wire
1
2
3
8
4
5
6
7
