10.1 Assembly and Parts List - W65 Wirefeeder

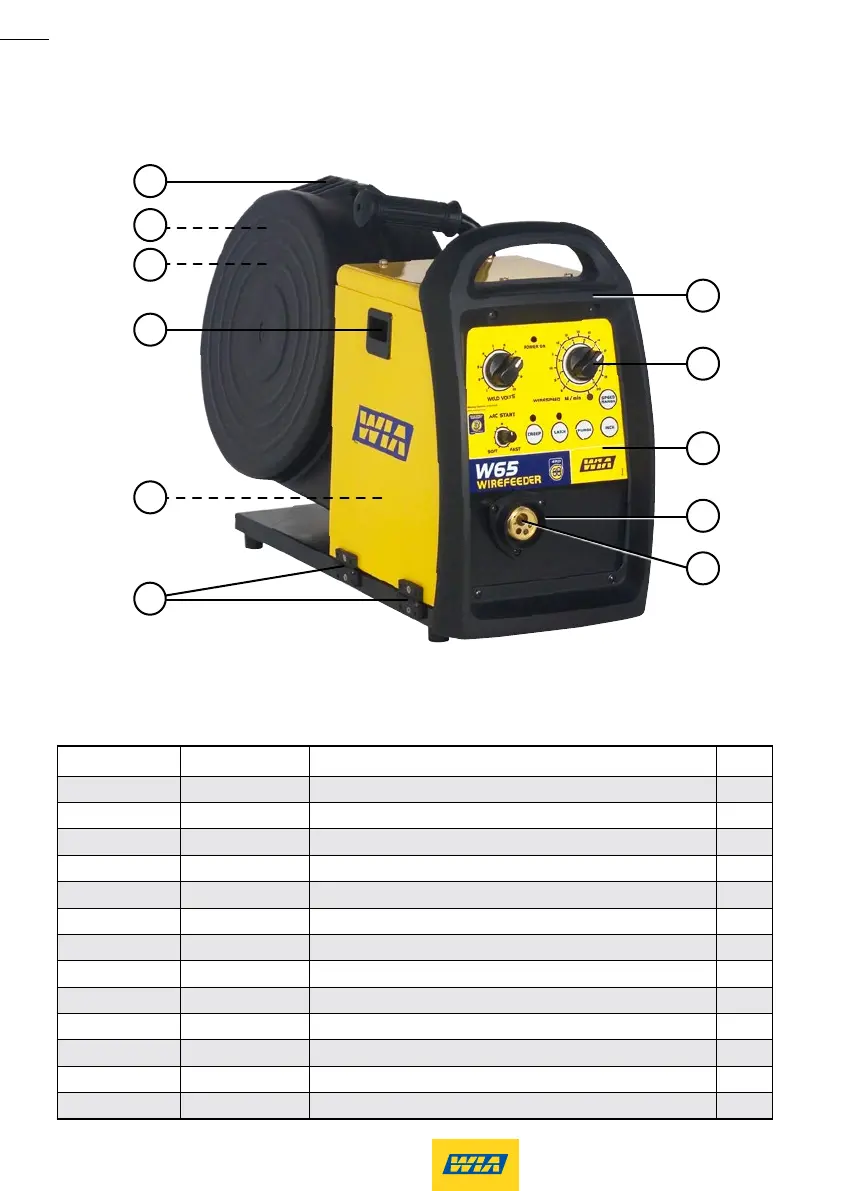

Fig 5 W65 Wirefeeder Assembly
Inside
Inside
Inside
Item # Part # Description Qty
1 WF057 Wirefeed Assembly and Motor 1
2 WF052 Euro Adaptor 1
3 WF065 Euro Housing Plastic 1
4 WIN576 Front Panel Sticker 1
5 M0047 Knob 2
6 M0078 Panel Front Plastic 1
7 WF066 Spool Cover 1
8 M0077 Hinge 2
9 M0062 Latch 1
10 M0044 Spool Holder Complete 1
11 M0046 Spool Holder Nut (included in M0044) 1
E0041 Gas Valve 1
PWA038 Wirefeed PCB 1
9
2
4
5
11
10
7
3
8
1
6
