Weldmatic W65 4RD - WF042 Wirefeed Assembly Details; WF042 Feed Roll and Assembly Parts

18
Operators Manual
Trusted by the best

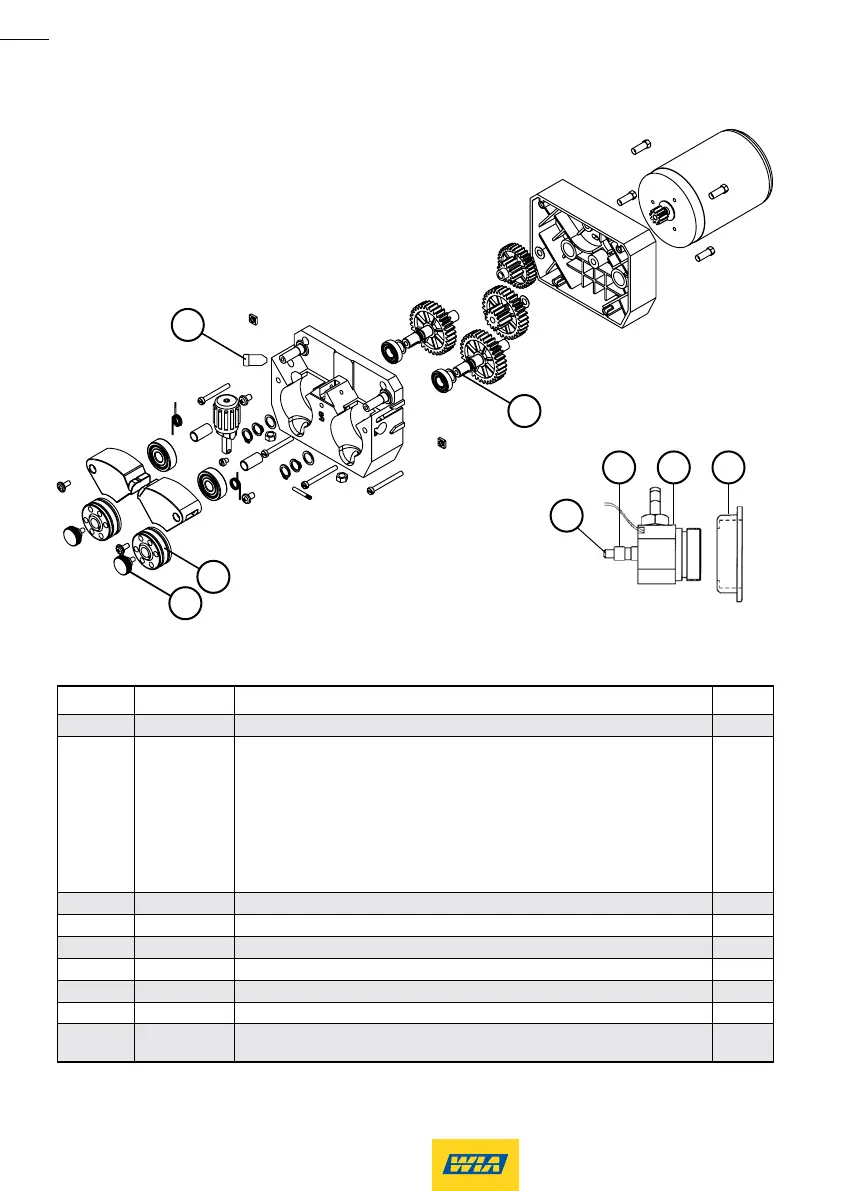

Fig 8 Wirefeed Assembly
10.3 Assembly and Parts List - WF042 Wirefeed Assembly
Item # Part # Description Qty
1 WF045 Roller Retaining Screw 2
2
WF027
Feed rolls
0.9 + 1.2 mm, Solid Wire (fitted) 2
WF026 0.6 + 0.8 mm, Solid Wire 2
WF028 1.2 + 1.6 mm, Solid Wire 2
WF029 1.0 + 1.2 mm, Aluminium 2
WF030 1.0 + 1.2 mm, Flux Cored Wire 2
WF031 1.2 + 1.6 mm, Flux Cored Wire 2
3 W26-0/13 Inlet Guide 1
4 W26-0/4 Woodruff Key 2
5 WF001-21 Outlet Guide Tube (oversize, cut to 41mm long) 1
6 WF038 Positioning Shaft, Brass 1
7 WF044 Euro Adaptor incl. Gas Barb Positioning Shaft & Guide Tube 1
8 WF001-6 Plastic Euro Cover 1
9 WF049
4 Roll Drive Box Assembly incl. Front & Rear Plastic Housing & Pressure Screw
Complete
1
1
2
3
4
5
6
7
8
