10.5 Assembly and Parts List -
Work Lead & Interconnecting Lead Kit 500i
Item # Part # Description
1 Work Lead
Includes 1.1 Welding Cable, 50mm
2
1.2 CX21 Plug, Dinse
1.3 CLA001 Work Clamp, G Clamp Style
2 AM361-1/10 10m Interconnecting Lead
Includes 2.1 Welding Cable, 50mm
2
2.2 CX21 Plug, Dinse
2.3 62513 Gas Hose, 5mm
2.4 E0087 Control Plug, 7 Pin
2.5 TC267 Gas Nut
2.6 TC268 Gas Tail (5mm)

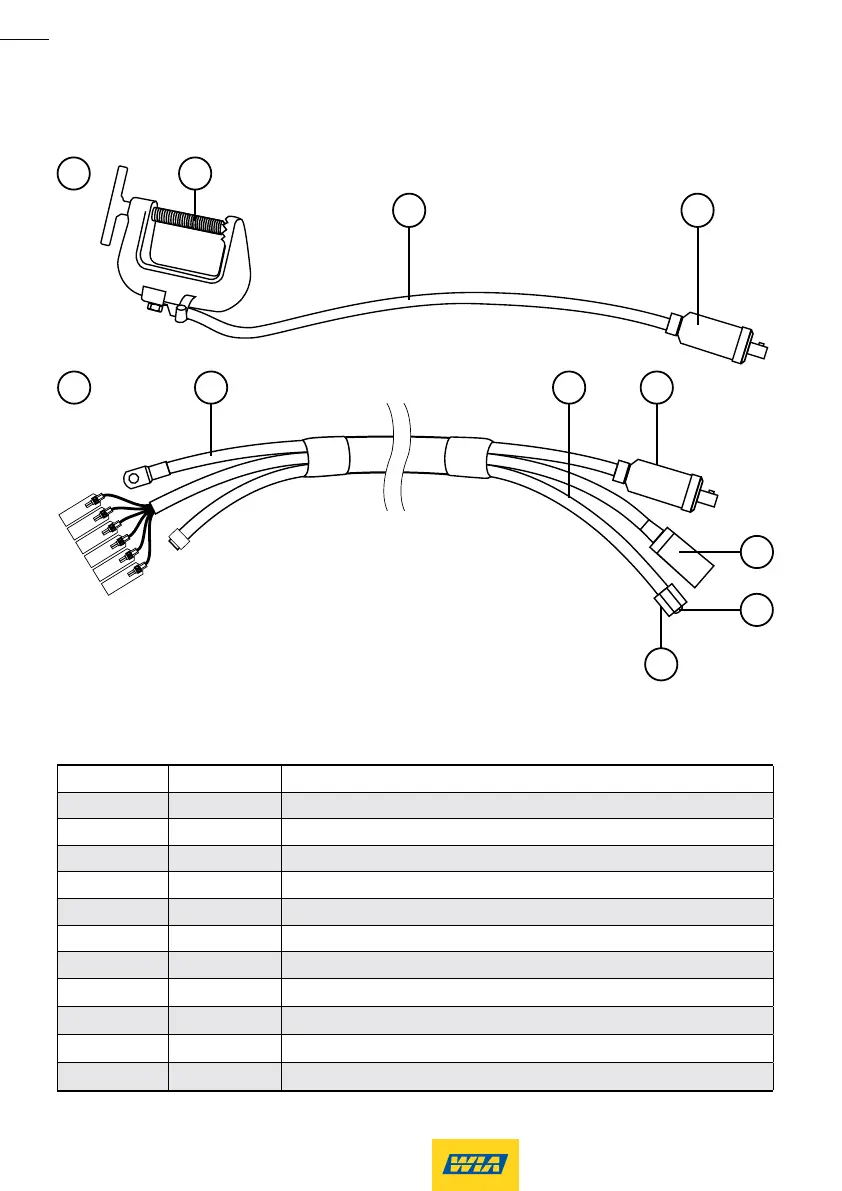

Fig 12 Work Lead & Interconnecting Lead Kit supplied with Weldmatic 500i
1 1.3
1.1 1.2
2 2.1 2.2
2.4
2.5
2.3
2.6
