1 INTRODUCTION
IMPORTANT!
This handbook must be consigned to the user prior to
installation and commissioning of the unit.
Read the "General prescriptions for use" handbook supplied
separately from this handbook before installing and
commissioning the unit.
The meaning of the symbols in this manual and the associated
precautionary information are given in the "General
prescriptions for use”.
If the "General prescriptions for use" are not present, it is
mandatory to request a replacement copy from the manufacturer
or from your dealer.
Retain these documents for future consultation.
KEY
This symbol identifies an action that occurs automatically as a
result of a previous action.
This symbol identifies additional information or a reference to
a different section of the manual containing the associated
information.
§
This symbol identifies a reference to a chapter of the manual.
This symbol accompanies important information concerning
the execution of the relevant operations.
Discovery 300T is an inverter-based welding power source complete
with all the functions required for DC TIG and MMA welding with
excellent arc characteristics.
The solidity of the components of this unit makes it a reliable working
companion for workshop and outdoor applications.
This unit is ideal for maintenance, food industry, hydraulics, oil
pipelines and chemical plants.
The parameters preset in the DC TIG pulsed synergic curve simplify
welding by regulation exclusively of the current.
The current is adjustable also from the Up-Down torch.
The simply and intuitive interface allows high precision adjustments
with 50 storable programs.
The wide range of adjustable pulsed frequency in combination with
the complementary parameters (base current and duty cycle) makes it
possible to weld in slow and fast pulsed mode.
The welding modes and procedures available are those indicated in
the table.
MODE
PROCEDURE
MMA
TIG
CONTINUOUS
+
2T SPOT
+ +
2T SPOT + HF
2 STEP LIFT-ARC (2T)
TIG PULSED
+
2 STEP + HF (2T HF)
4 STEP LIFT-ARC (4T)
+
4 STEP + HF (4T HF)
SYNERGIC
TIG
4 STEP BI-LEVEL (4T B-LEVEL)
+
4 STEP BI-LEVEL + HF (4T B-LEVEL
HF)
Accessories that can be connected to the unit:
 manual remote controller for remote adjustment of the welding
current.
 foot-pedal remote controller for TIG torch arc striking and remote
adjustment of welding current.
 UP/DOWN torch or torch with potentiometer.
 liquid cooler for TIG torches.

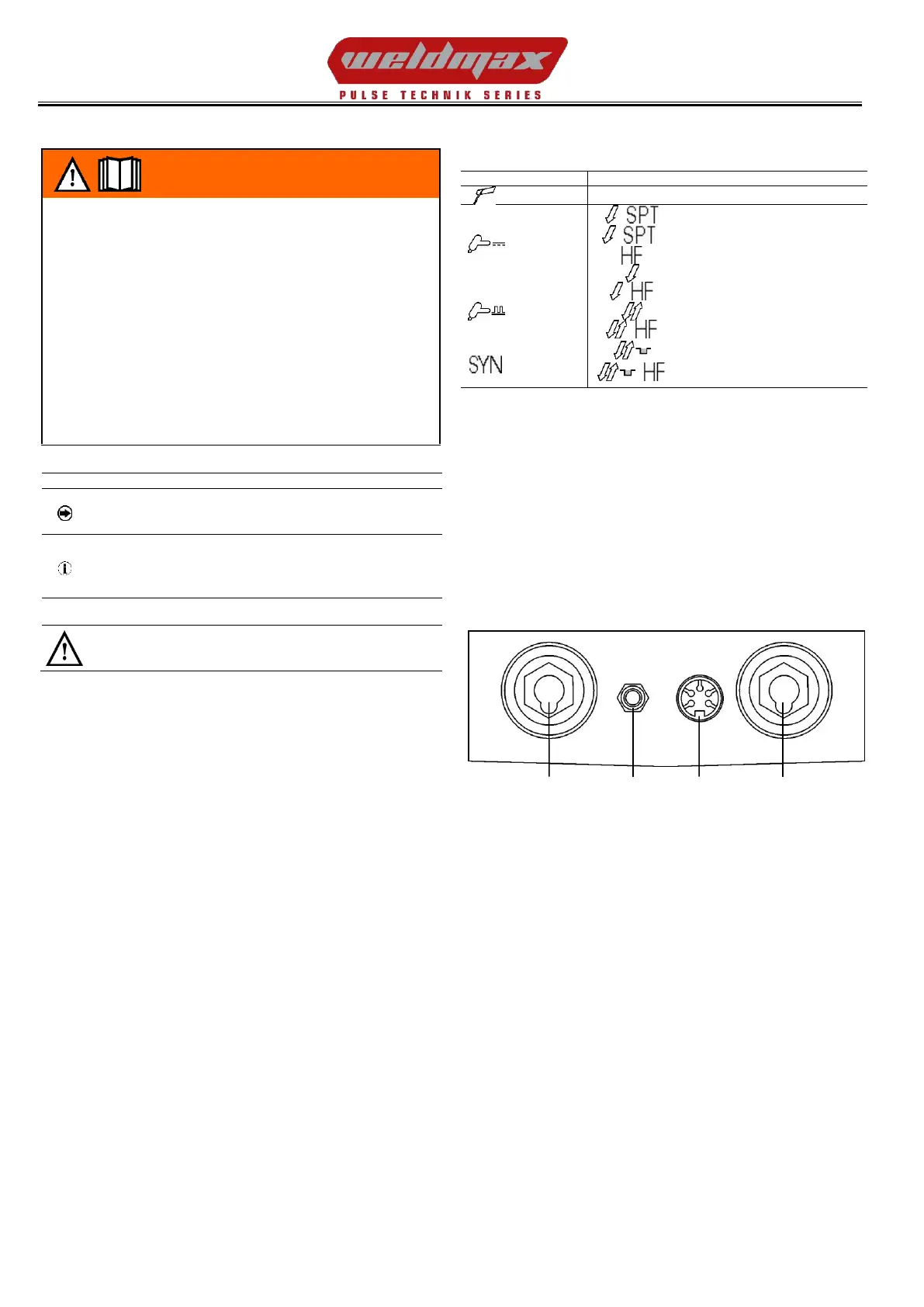

2 FRONT PANEL
1 4 3 2
1: Negative pole welding socket.
2: Positive pole welding socket.
3: Connector for logic signals of TIG torch.
4: Connector for gas feed hose:
power source  torch
