CMP100 User Guide
32
4x3_CutOff
PMT PID
32~8190
Audio Encoder Details
Range
Audio Encoder Details
Range
Encoding Type
MPEG1_Layer2
Audio Sampling
Bitrate(KHz)
48
Audio Mode (AC3)
Dual Channel/Mono/
Stereo
Audio PID
32~8190
Encoding Bitrate(Kbps)
64~384
Volume Setting
0.00~8.00

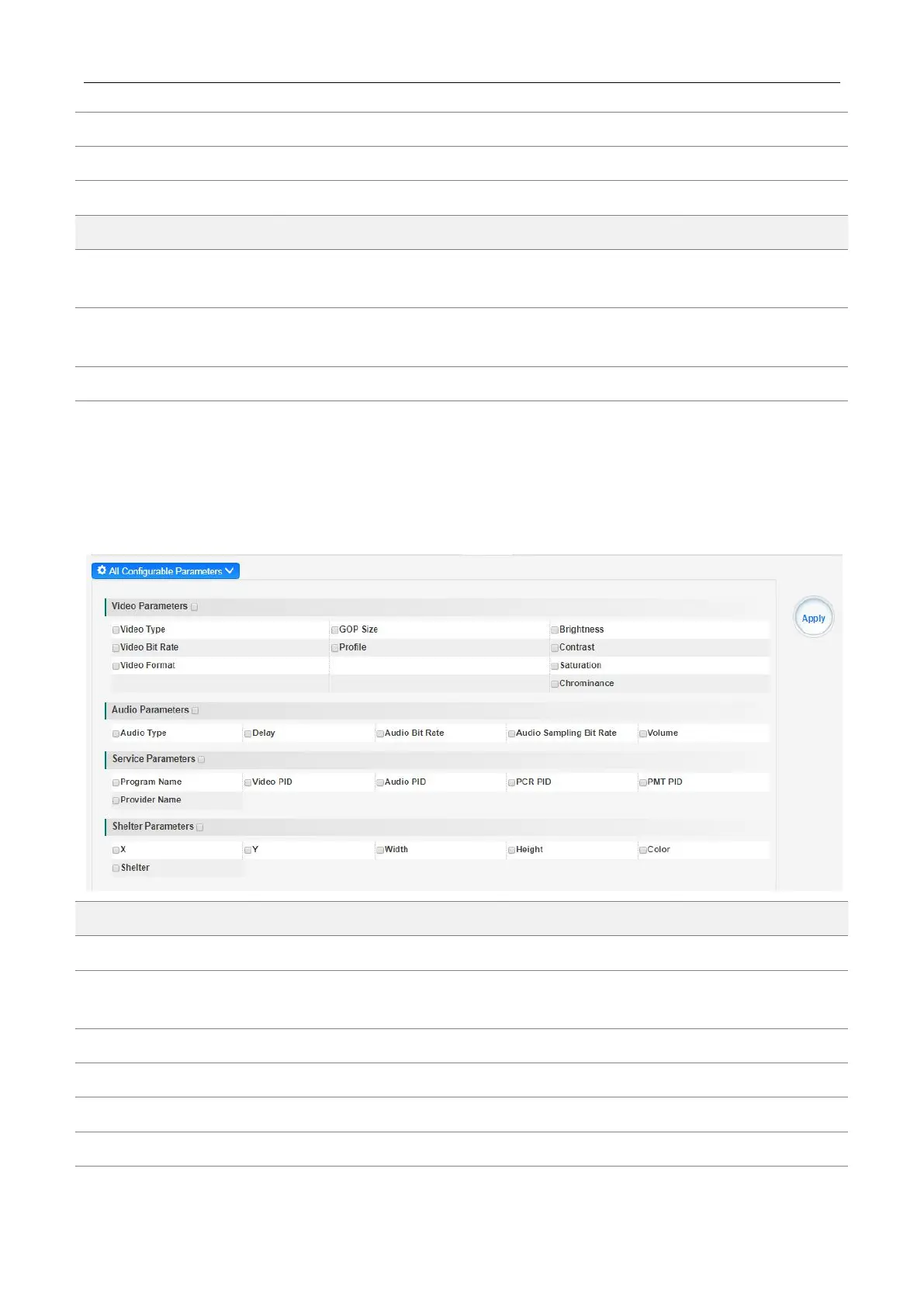

CE-CVBS-01 /01A>Settings
CE-CVBS-01 module has 8 channels with 2 DB15 connectors and CE-CVBS-01A module has 16
channels with 4 DB15 connectors. The configuring of them are similar to CE-CVBS-00, there are a
few differences on parameter setting range.
Name
Range
Name
Range
Video Type
H.264
Service Name
Length is 1~16
Video Bitrate (Kbps)
600~6000
Service Provider
Name
Length is 1~16
Video Mode
CBR
Brightness
0~255
GOP Size
1~99
Contrast
0~255
Profile
Main/High
Saturation
0~255
Video PID
32~8190
Chrominance
0~100
