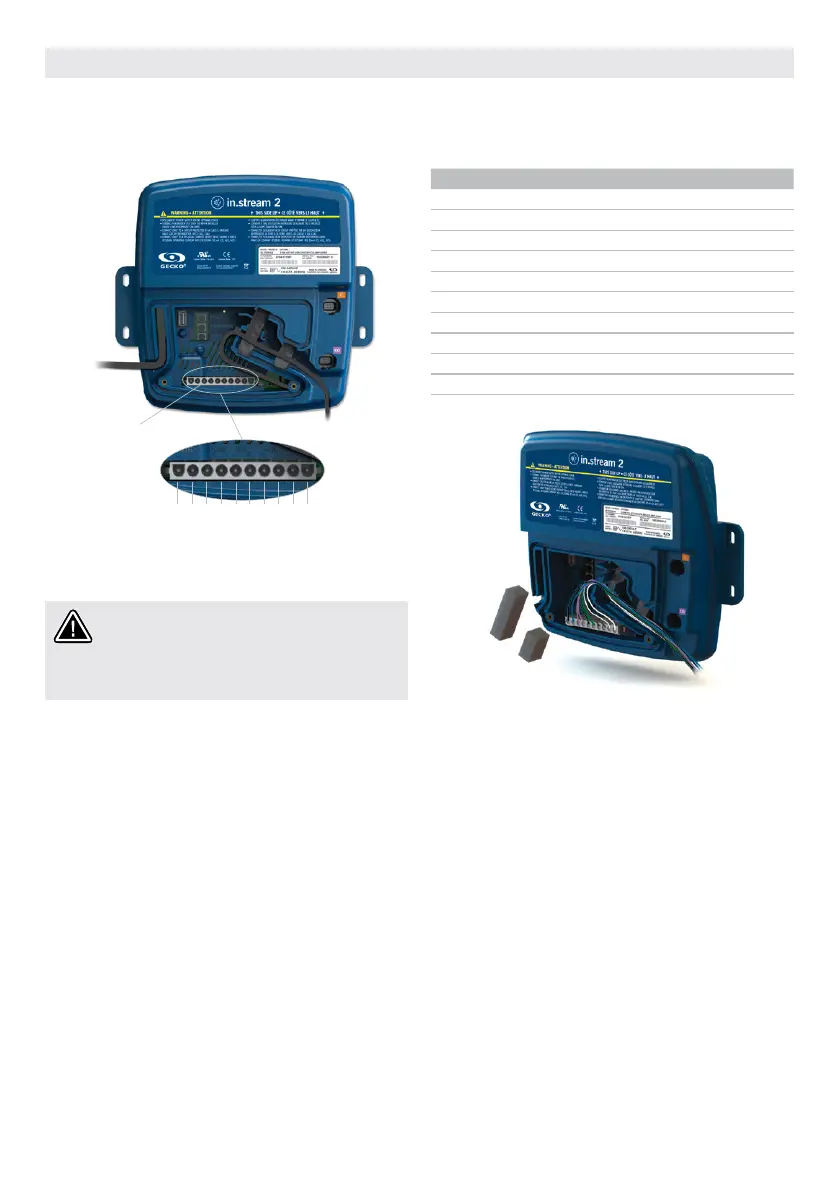

The speakers and the subwoofer output terminals are located
on the 10-pin MATE-N-LOK connector marked "SUB R-R R-L
F-R F-L"
Connector pins Identification
1 Front Left speaker (+)
2 Front Left speaker (-)
3 Front Right speaker (-)
4 Front Right speaker (+)
5 Rear Left speaker (+)
6 Rear Left speaker (-)
7 Rear Right speaker (-)
8 Rear Right speaker (+)
9 Subwoofer (+)
10 Subwoofer (-)
To connect your own speaker cable or to connect the option-
al adaptor, insert the 10-pin connector into the appropriate
connector. Route the wires through the molded strain relief
channel as illustrated.
Class 2 Wiring
138 510 27 49 6
CONNECTIONS
CONNECTING THE SPEAKERS AND SUBWOOFER
CAUTION: AQUASOUL PRO DOES NOT
COME WITH SPEAKERS AND ASSOCI-
ATED WIRING. THE INTERCONNECTION
BETWEEN THE AUDIO SYSTEM AND THE
SPEAKERS MUST BE "CLASS 2 WIRING"
AND BE DONE BY QUALIFIED PERSONNEL.
OPTIONAL ACCESSORIES AQUASOUL PRO
